Options & Accessories

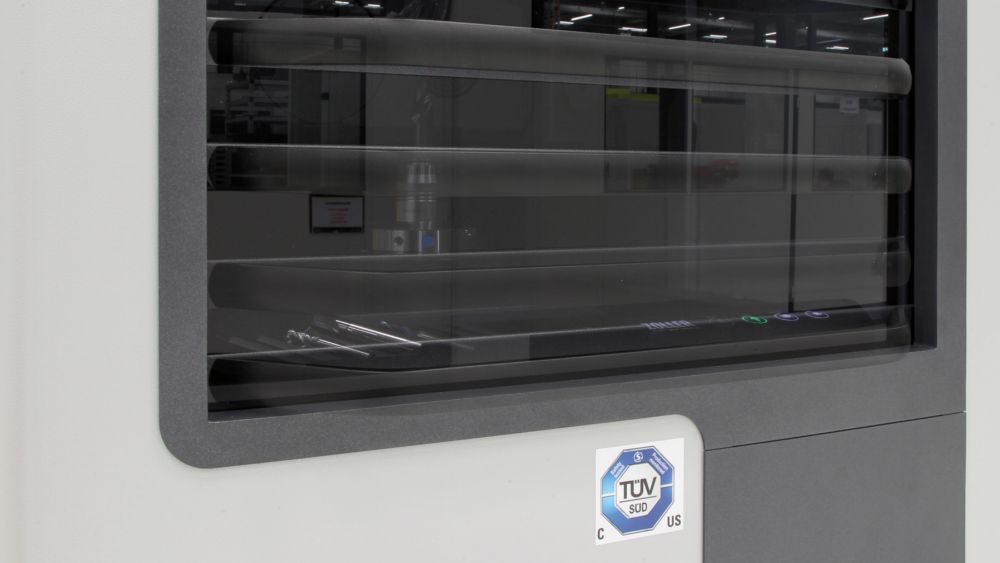

Automatic sliding door
Before starting the measuring process, the sliding door of the measuring machine can be conveniently and easily closed pneumatically via the software and opened again once the measuring process is completed.

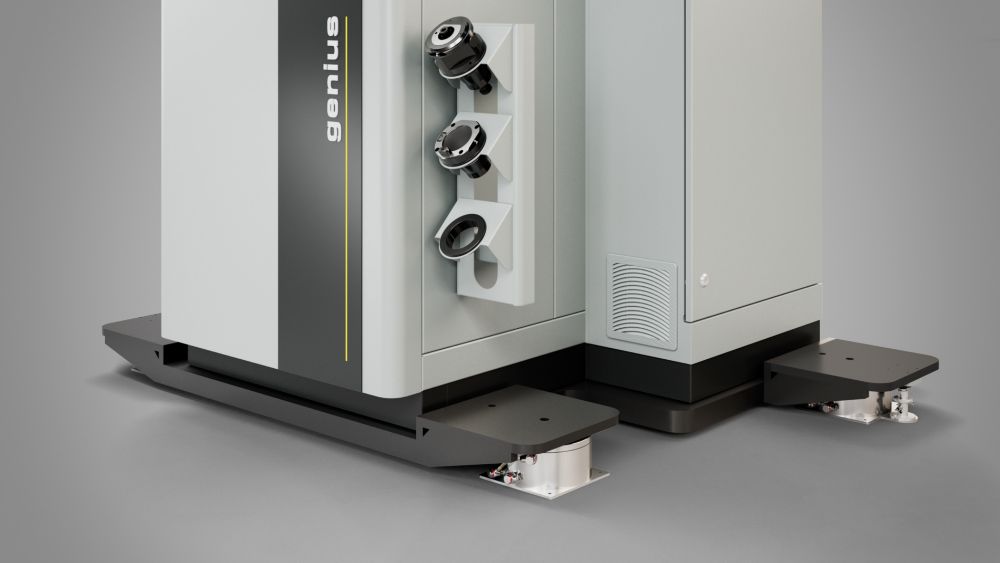

Vibration decoupling
With a dead weight of approx. 650 kg and isolators, the solid vibration platform absorbs external vibration influences at the installation site. The isolators are supplied with compressed air at 6 bar.

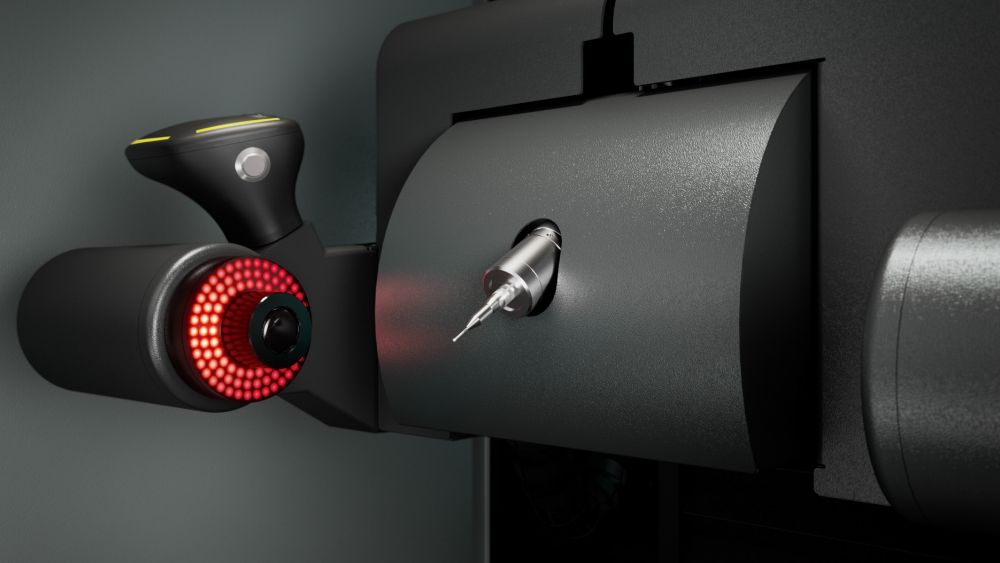

Scanning measuring probe
For electronic tactile measurement of, for example, the thread relief on taps. Available with probe inserts from D 0.01" to D 0.08" (D 0.3 mm to D 2 mm).

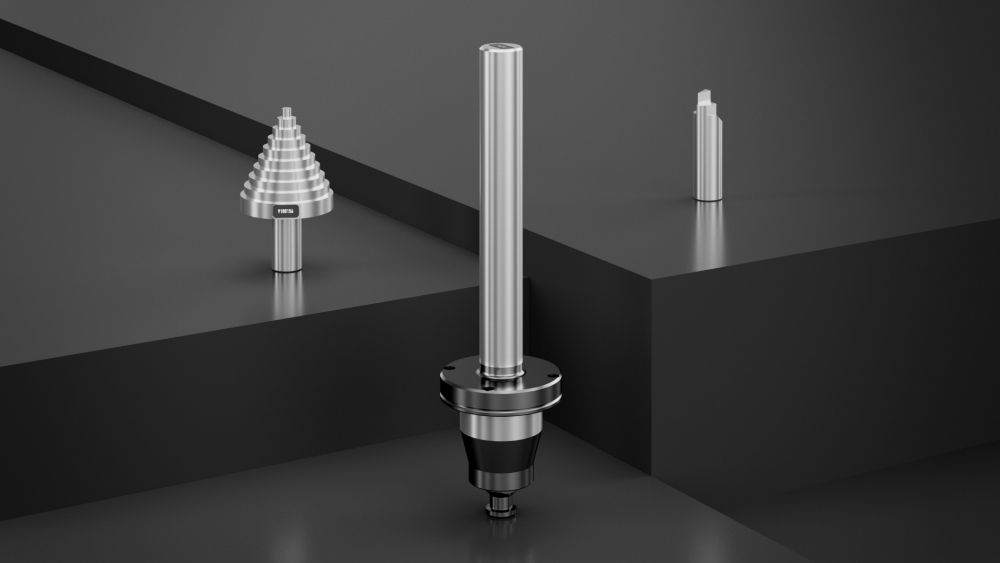

Measuring and inspection tools
For periodic on-site inspection of the measuring machine and to verify the accuracy of transmitted and incident light measurements, ZOLLER offers appropriate measuring and inspection tools for your measuring machine, such as test mandrels, diameter and angle test gauges.

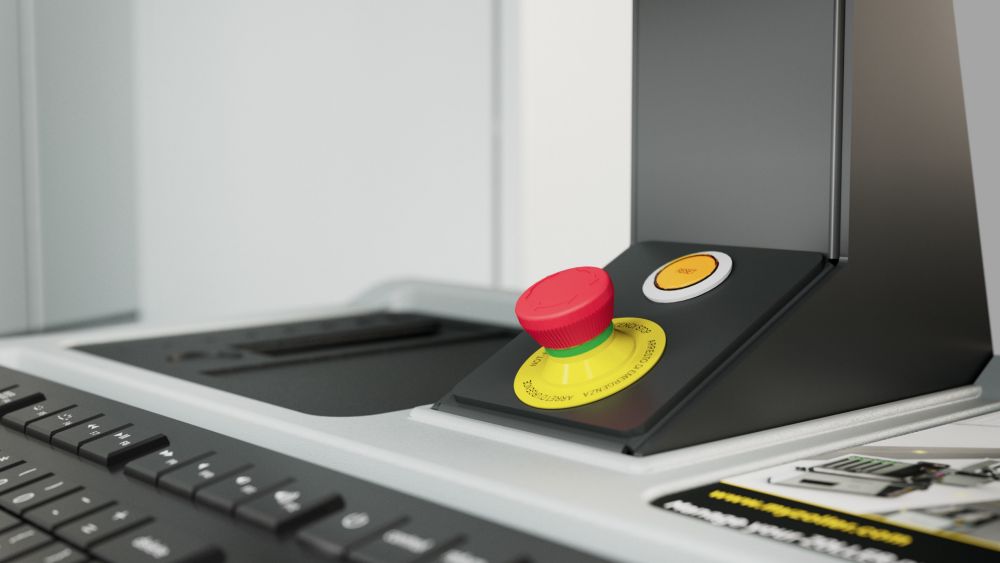

Emergency stop control on the »cockpit«
Allows all motorized movements to be stopped simultaneously in order to further increase the high level of safety of the Uhing drives. The power supply to the electronic components is maintained, so there is no risk of data loss.

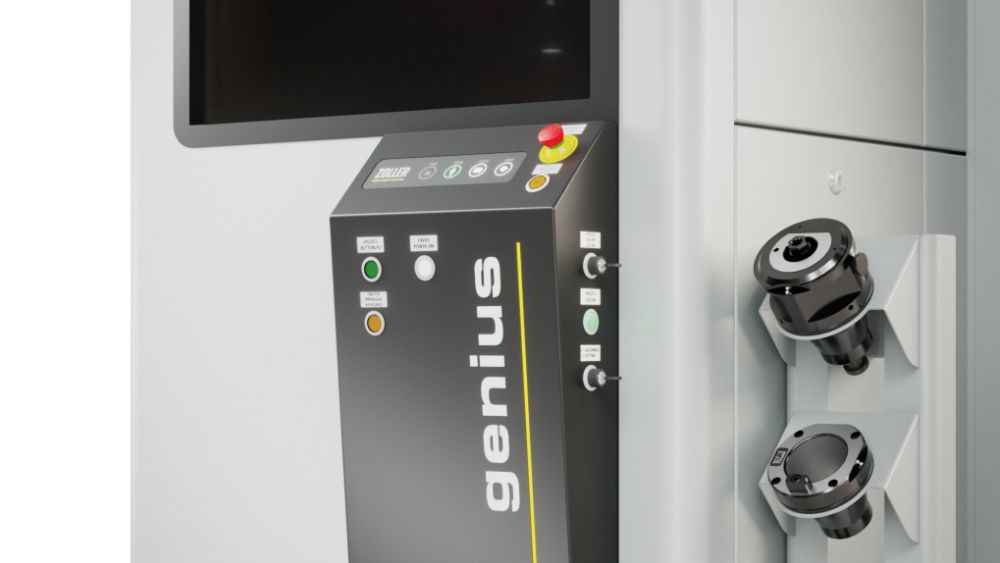

Safety package
Important operating elements are located on the front of the measuring machine. This means you always have unrestricted access to the emergency stop switch, the reset button, the membrane keypad and the button for starting measurement processes.

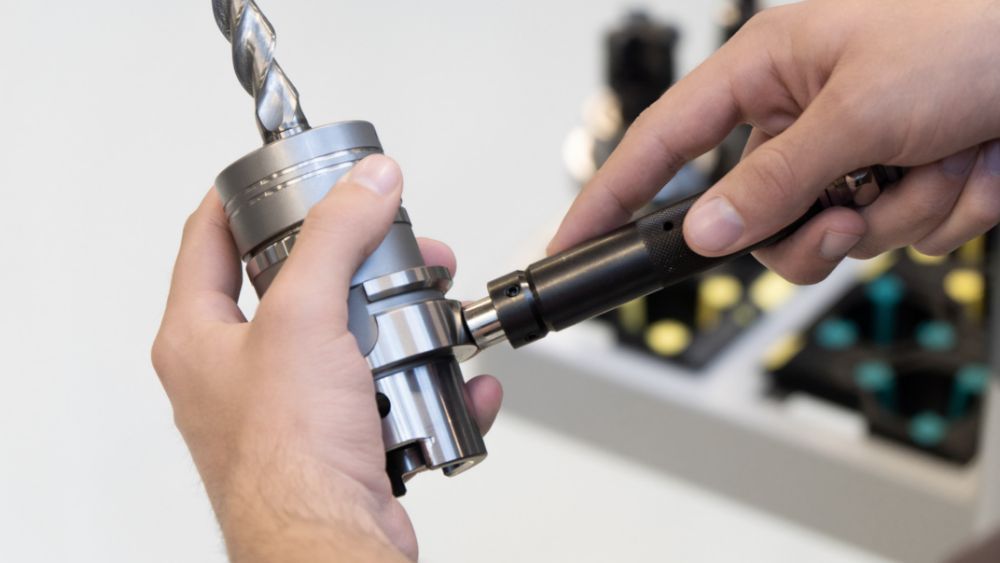

Manual RFID read/write station »mslz«
For manual writing/reading of the code carrier on the tool holder via a handheld reader.

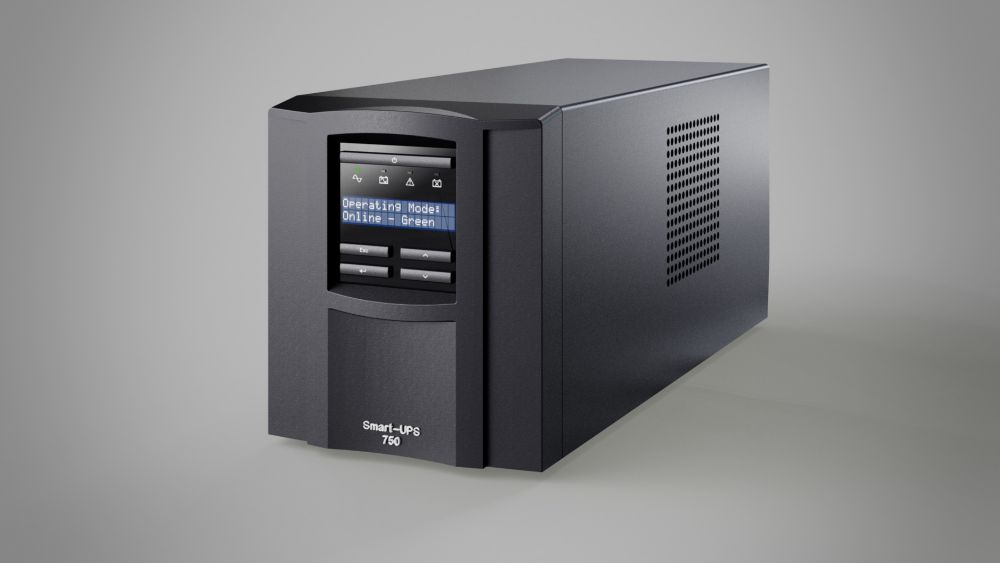

UPS system
The UPS system for uninterruptible power supply ensures that your computer is shut down properly in the case of a power failure to prevent data loss. Mains voltages of 230 V~ (Europe) and 120 V~ (USA) are available.
Sensors configuration
Optics transmitted light
Transmitted light camera HR70, BF approx. 0.15" x 0.14" (4.0 x 3.6 mm2)
Base model
Transmitted light camera 5 Mpx, BF approx. 0.17" x 0.15" (4.4 x 4.0 mm2)
optional
Transmitted light camera WF, BF approx. 0.61" x 0.55" (15.5 x 14.1 mm2)
optional
Optics incident light
Incident light camera HR50 Standard, BF approx. 0.04" x 0.03" (1.1 x 1.0 mm2)
Base model
Incident light camera HR50 Micro, BF approx. 0.01" x 0.01" (0.4 x 0.4 mm2)
optional
Tactile
Scanning measuring probe
optional
Measuring machine configuration
Spindle
High-precision spindle »ace«
Base model
High-precision spindle SK 50
optional
ROD
Base model
Hollow encoder
optional
Linear drive
ZOLLER power transmission
Base model
X-, Y-, Z-axis in column design
Base model
Optics drive
Swivel axis incident light
Base model
Swivel axis incident light & transmitted light
optional
Vibration damping
Leveling element on machine feet
Base model
Active vibration decoupling
optional
Material
Light metal alloy
Base model
