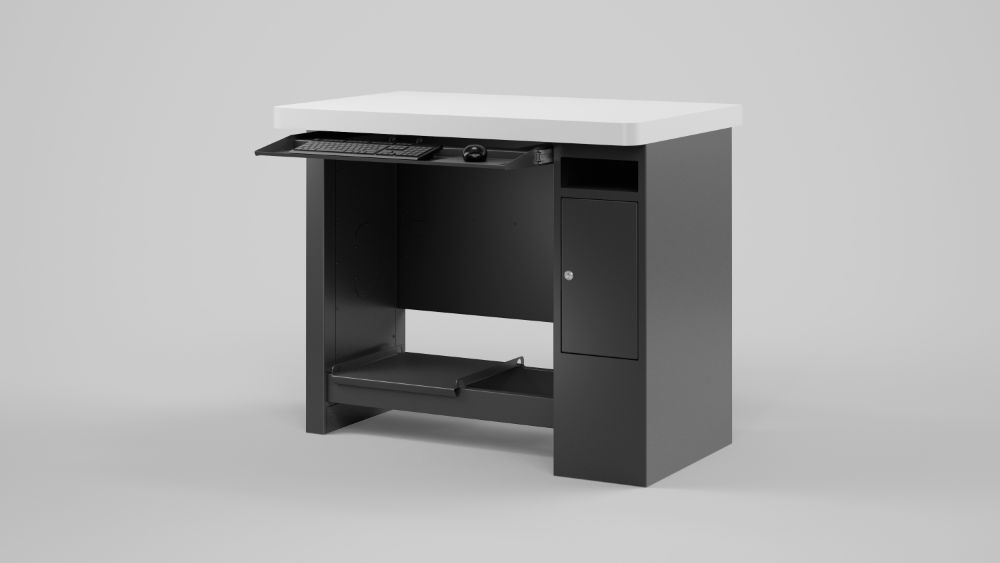

Stable and safe positioning of the »pomBasic« and »pomBasicMicro« inspection machines as a standing workstation. Includes pull-out board for mouse and keyboard.

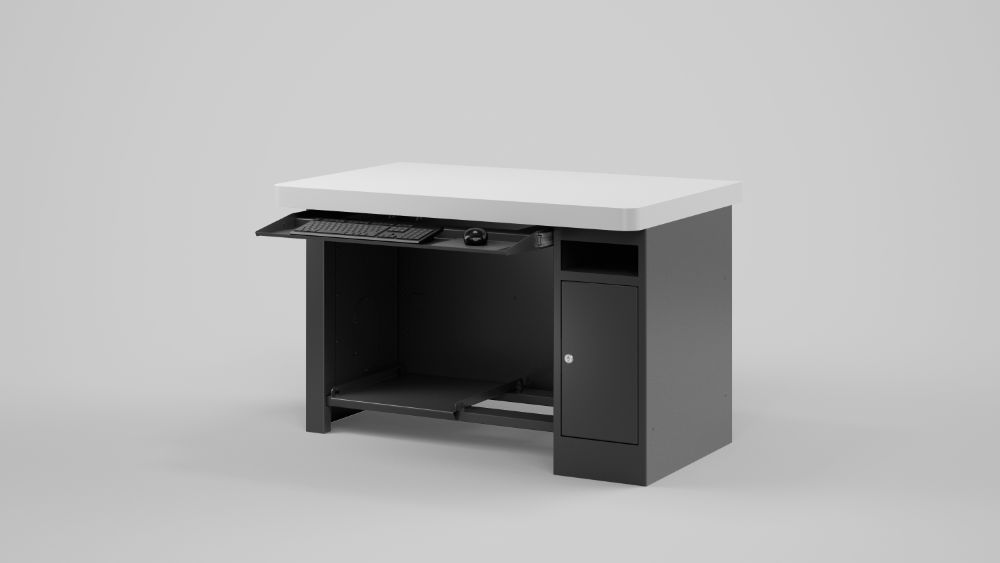

Stable and secure positioning of the »pomBasic« and »pomBasicMicro« inspection machines as a seated workstation for optimum comfort, even on time-consuming inspection tasks. Includes pull-out board for mouse and keyboard.

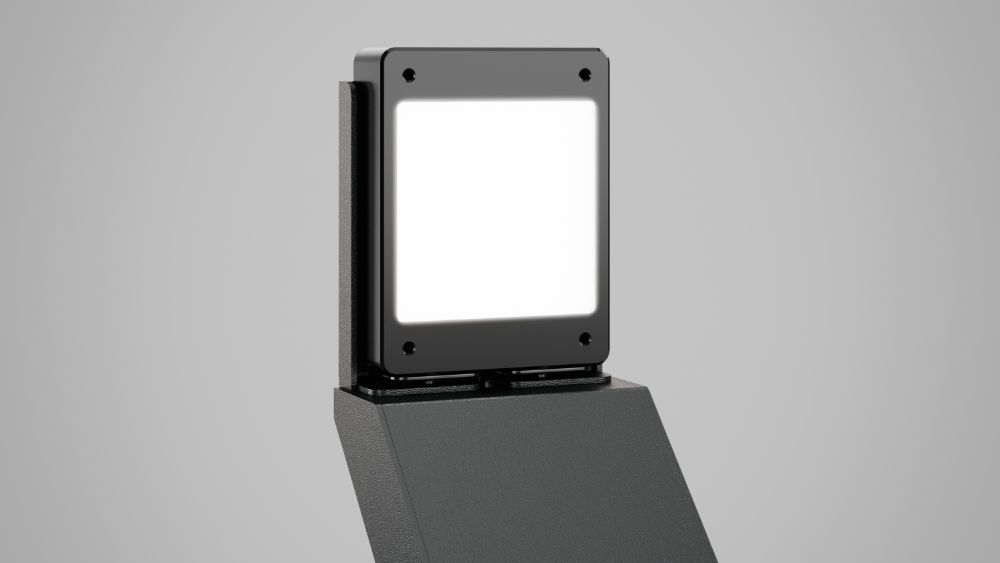

The diffuser (LED flat light) enables transmitted light measurement in the circumferential area. For this purpose, the diffuser is positioned opposite the video microscope system. This means that outer contours, step lengths, point angles and much more can be measured.

Diffuser white for »pomBasic«
Diffuser red for »pomBasicMicro«

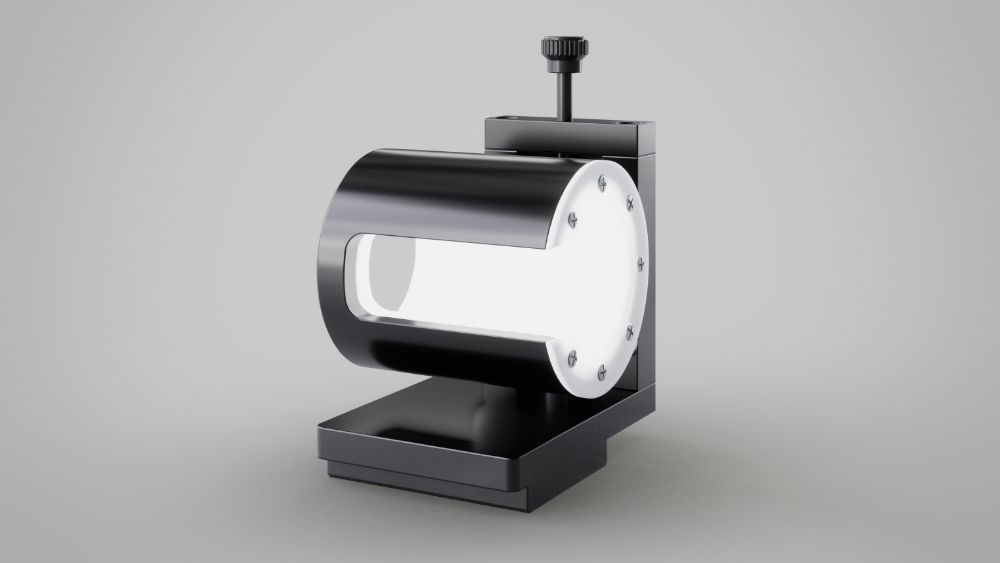

Additional illumination adjustable in height for optimum, high-contrast lighting of even the smallest areas along the tool cutting edge – for radial and axial incident light measurements.

»pomLightTube« white for »pomBasic«
»pomLightTube« red for »pomBasicMicro«

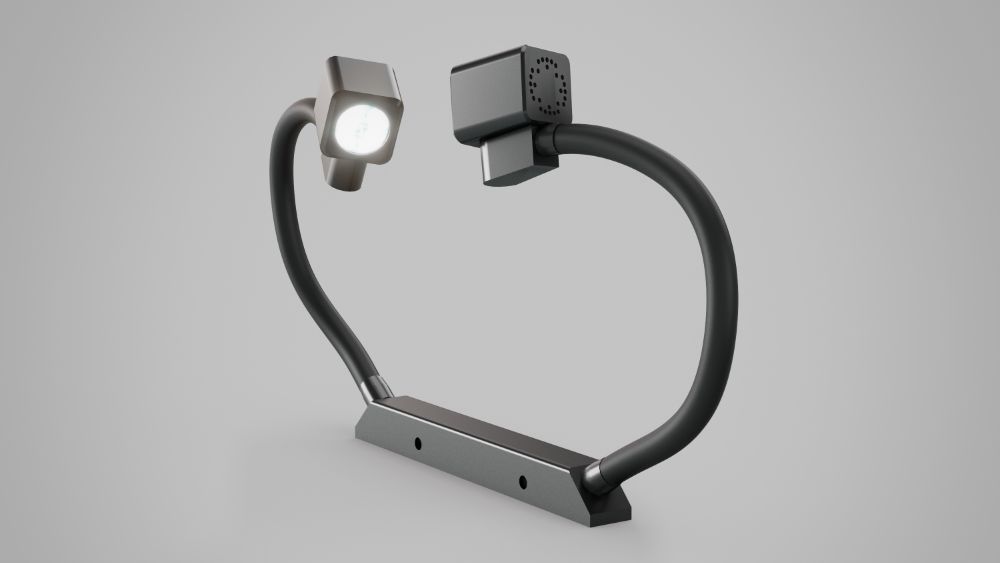

The dimmable additional illumination consisting of two LED spots can be flexibly positioned in relation to the tool to provide optimum lighting even for undercut tool geometries.

LED spots white for »pomBasic«
LED spots red for »pomBasicMicro«

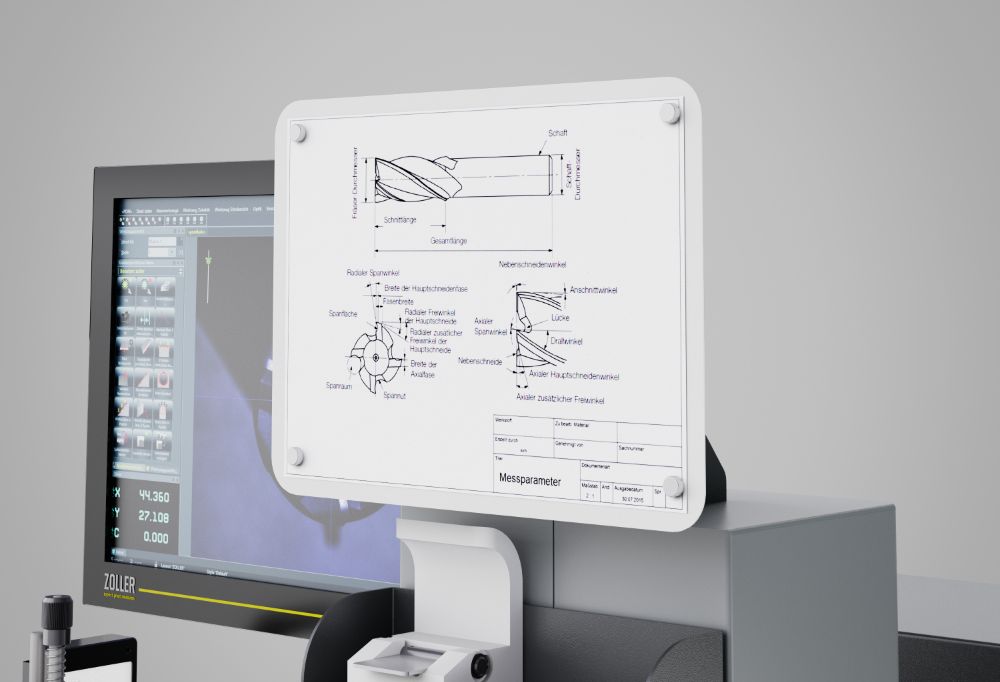

Ideal for attaching drawings in direct proximity of the measurement. The magnetic spherical joint allows flexible and optimum alignment for the operator. The drawings can be easily fixed and quickly changed using magnets.

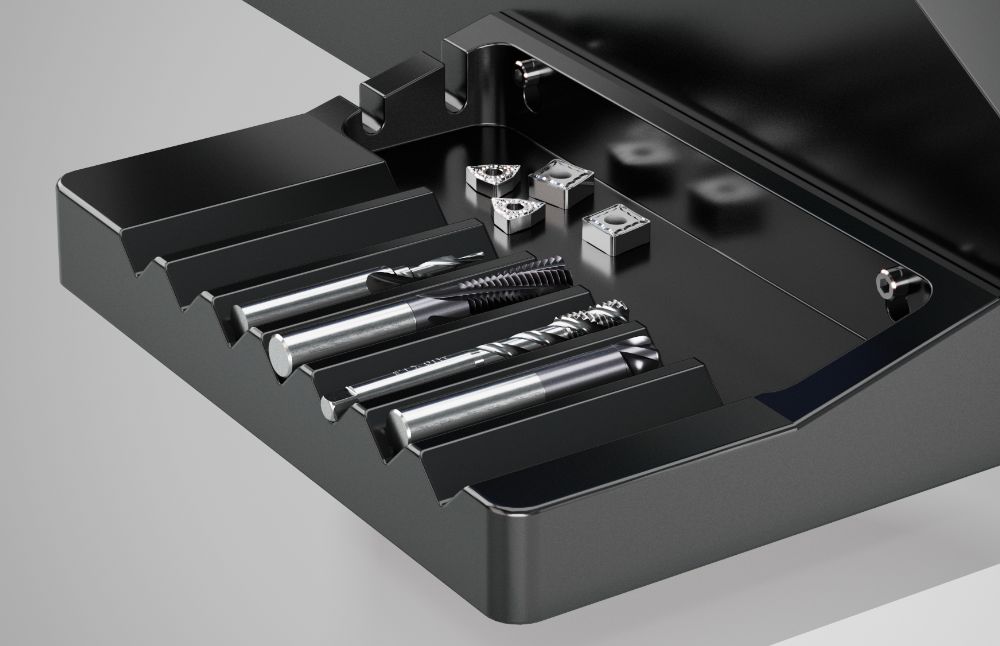

The tray on the left of the inspection device allows tools with a maximum shaft diameter of D 50 mm to be stored carefully. The board also offers sufficient space for small parts and reversible cutting plates.

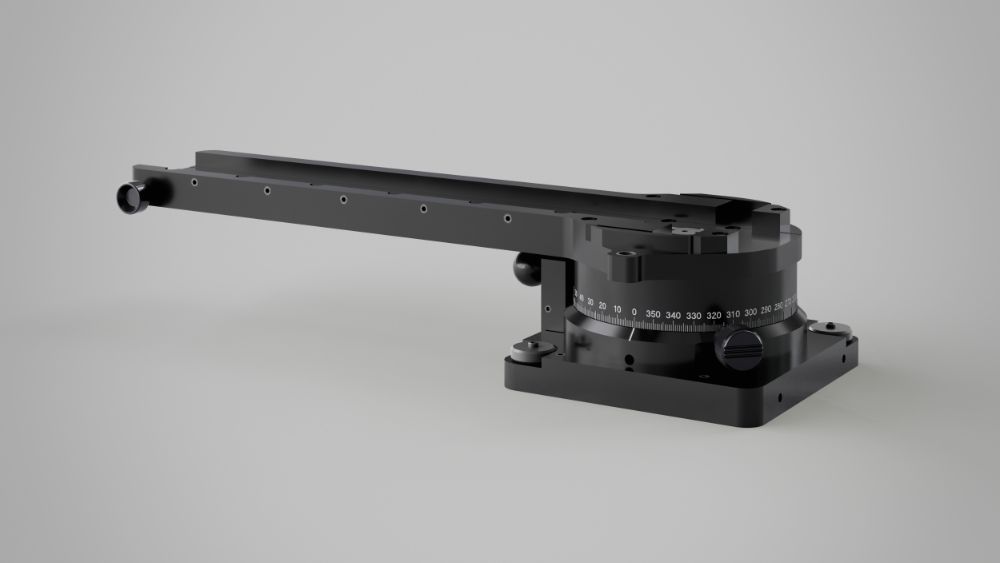

For extra-long tools such as drills or reamers, the extended swivel table enables perfect tool fixing.

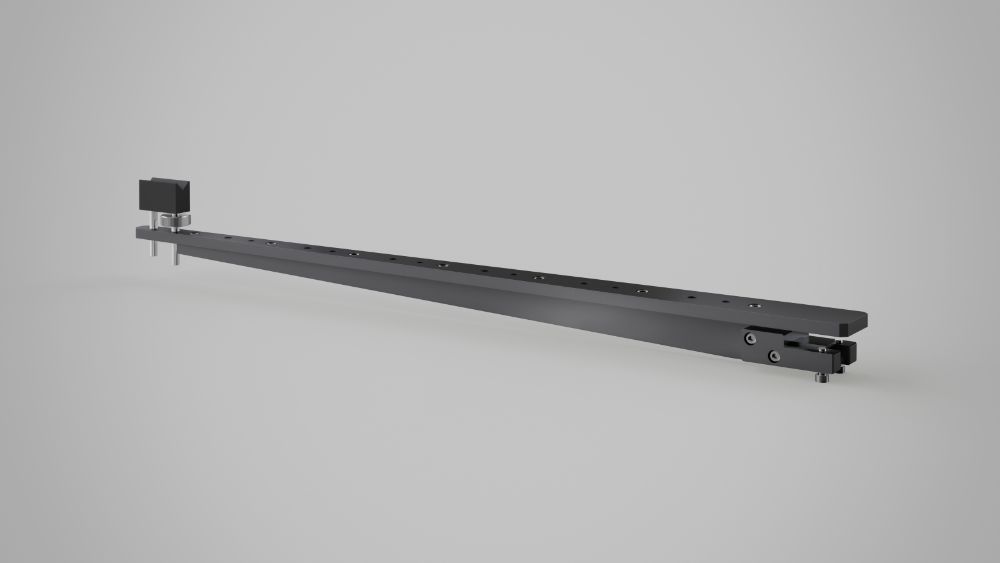

Support for extra-long tools D 0.118" (3 mm) to D 0.787" (20 mm) up to a length of 39.37" (1000 mm). The support height of the prism can be adjusted. The connection to the extended swivel table is mechanical.

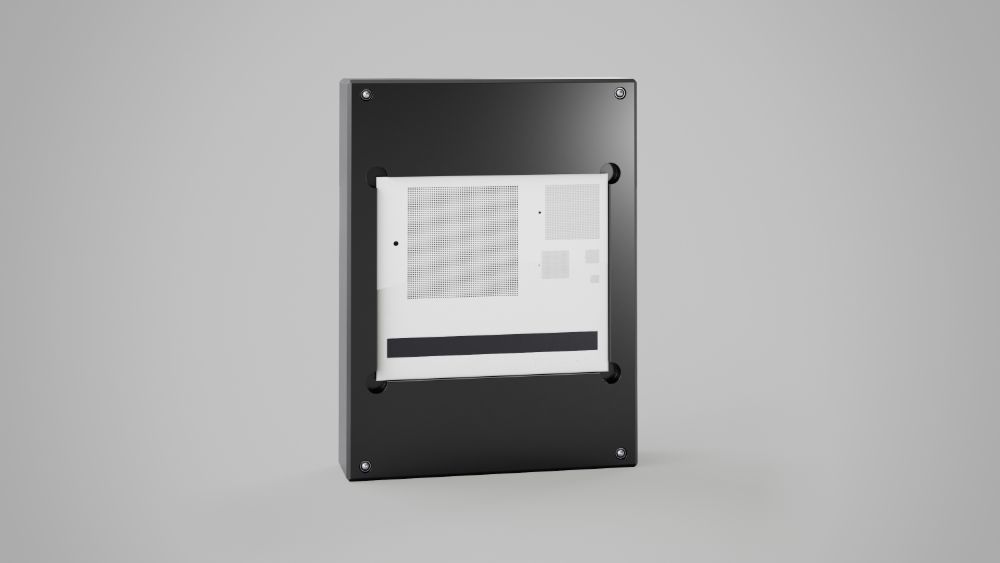

The calibration gauge for the »pomSoft« image processing technology is used to correct the distortion of the optics and to determine the absolute accuracy of the zoom levels. The calibration gauges can be mounted directly on the swivel table.

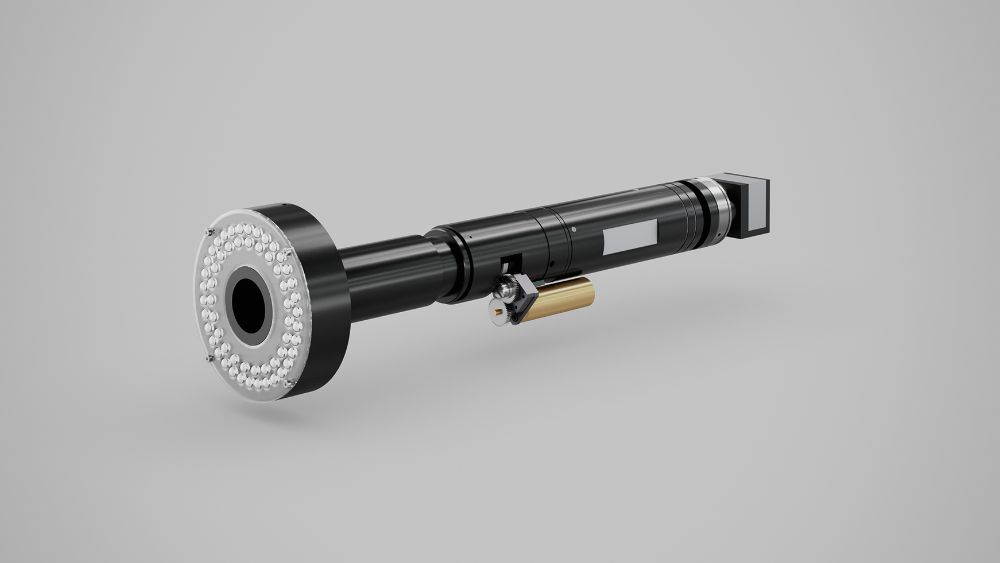

The zoom level is selected in the software at the click of a mouse and automatically adjusted by motor, making measuring processes even more reliable and comfortable.

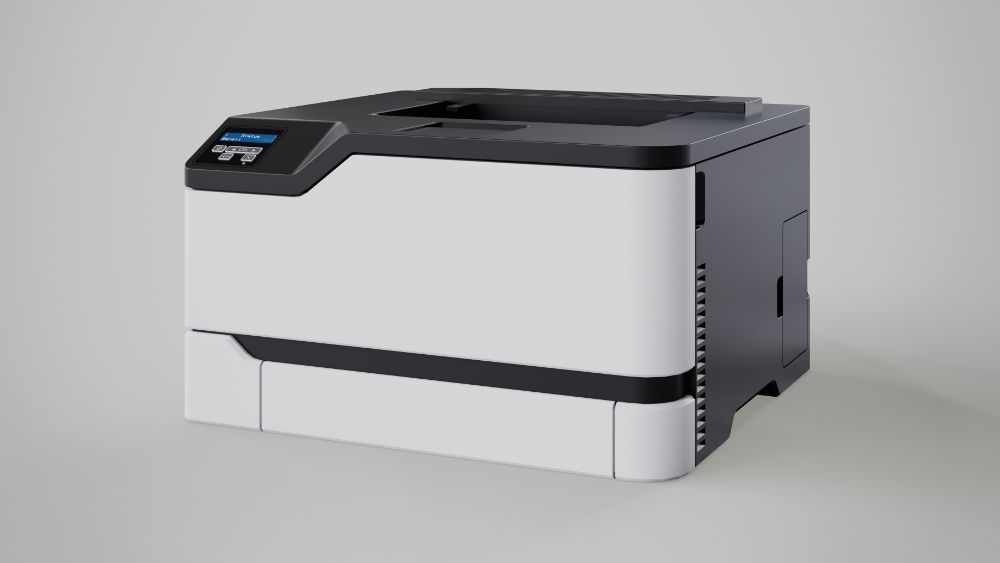

For report printouts directly on the inspection machine.

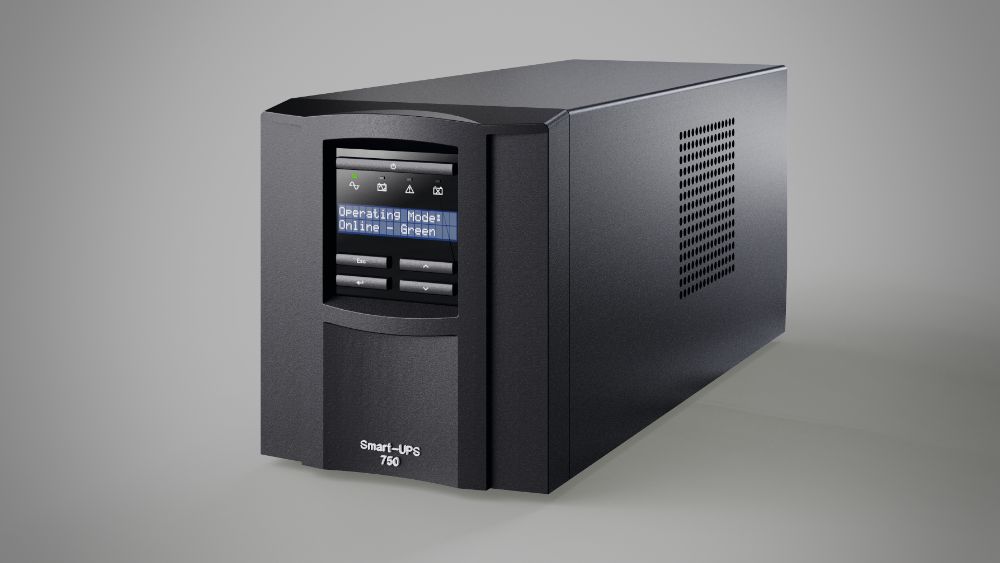

The UPS system for uninterruptible power supply ensures that your computer is shut down properly in the case of a power failure to prevent data loss. Mains voltages of 230 V~ (Europe) and 120 V~ (USA) are available.
