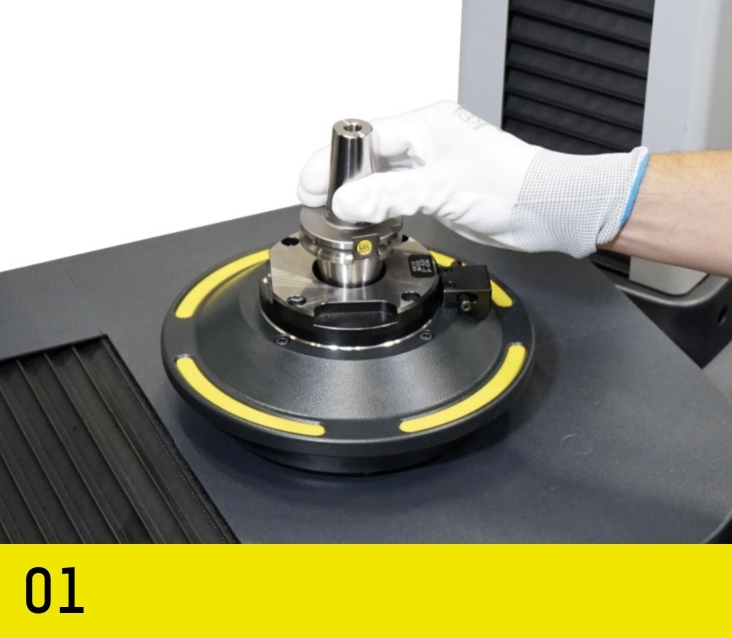

Insert shrink-clamping holder

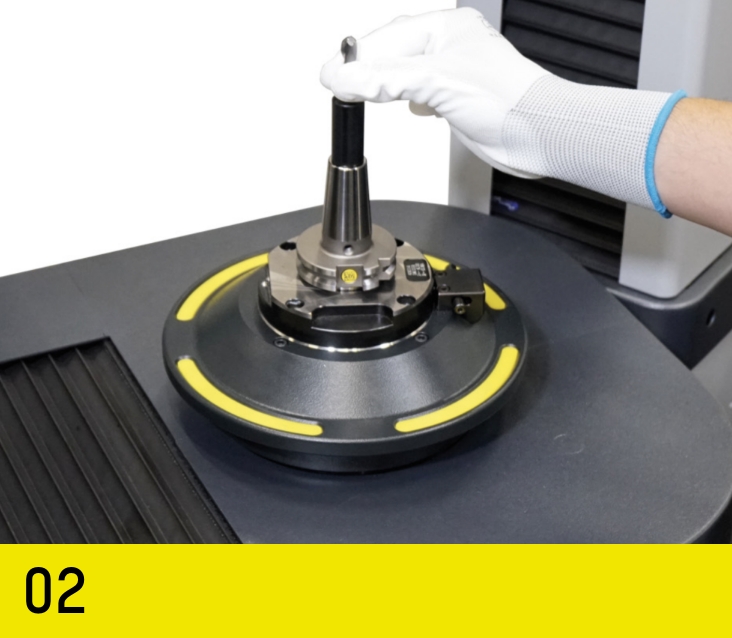

Insert »masterPiece« adjusting adapter and tool

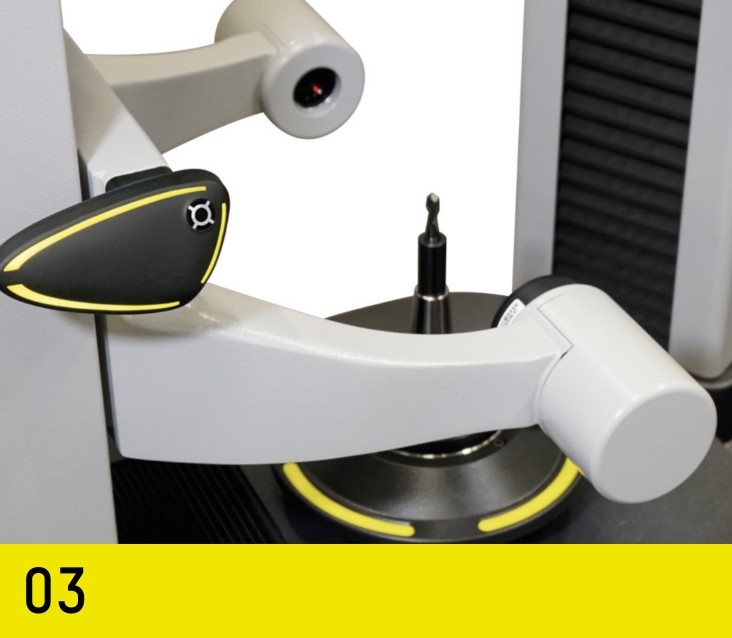

Automatic adjustment of the length setting according to the target tool length

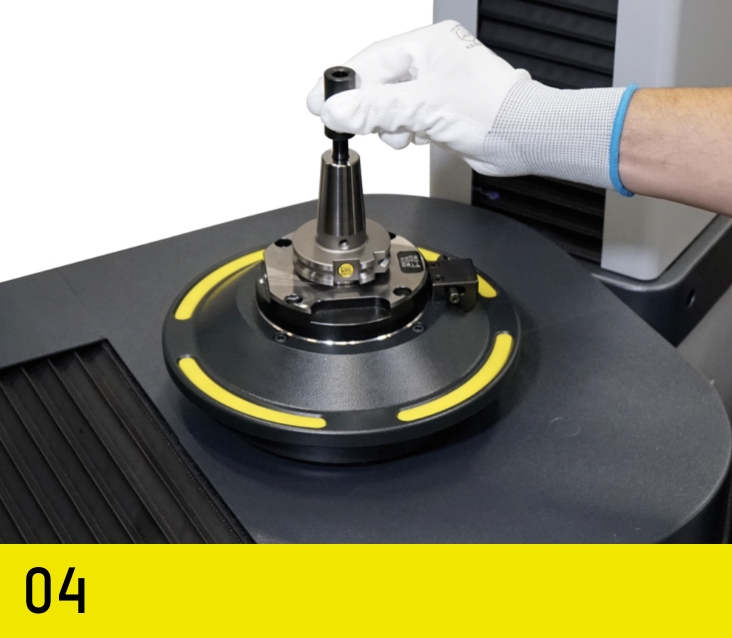

Remove tool and »masterPiece« adjusting adapter

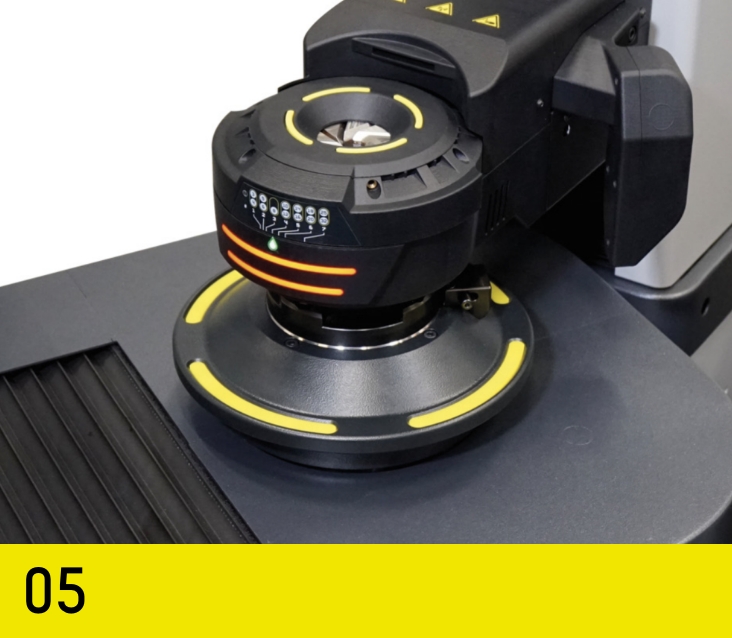

Induction coil moves to position, heating process starts

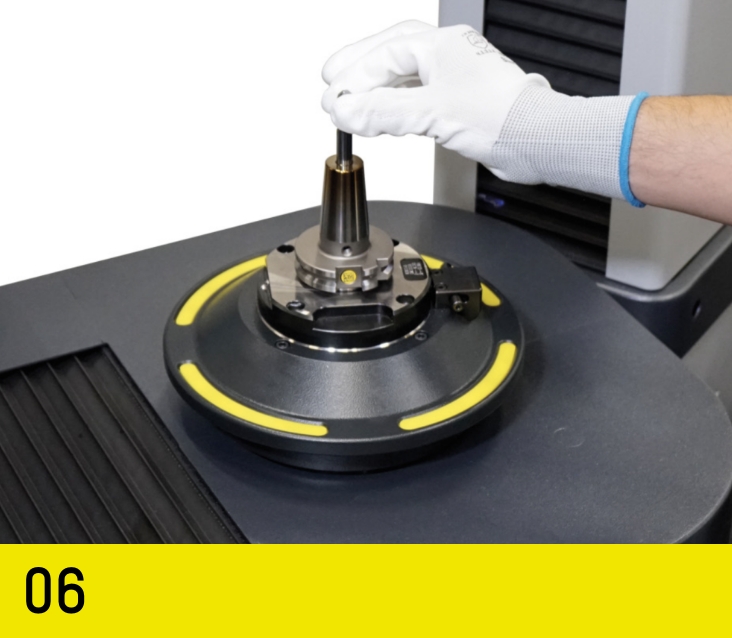

Insert tool

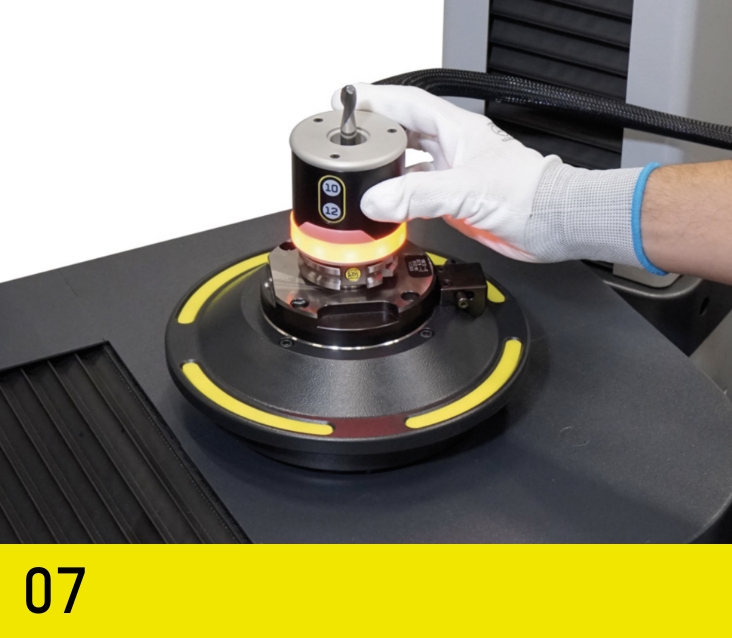

Cooling

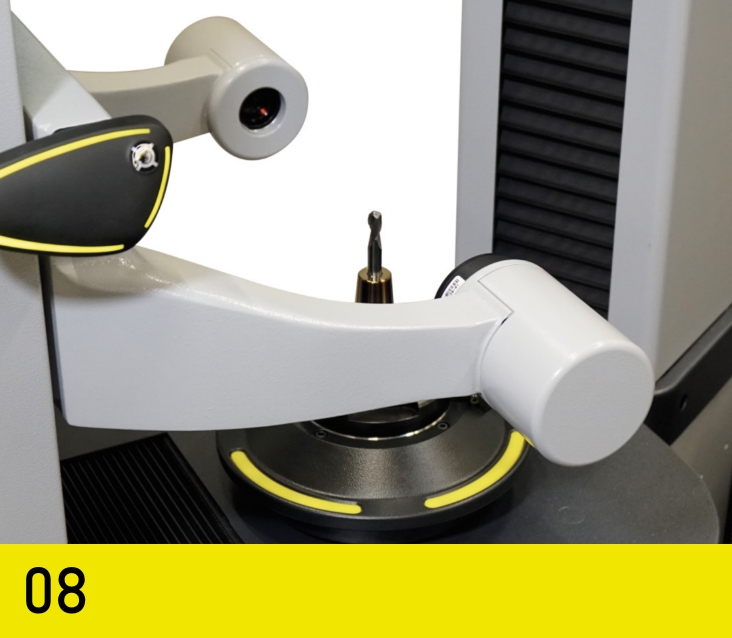

Control measurement

Reaching Your Goal Safely and Efficiently

With the ZOLLER »redomatic«, shrink-clamping tools are ready for use quickly. The »pilot 4.0« image processing software, the carrier unit, and continuous monitoring of job steps make quick and reliable work easier.

The »redomatic« technology ensures the shortest process times. Even inexperienced operators can achieve these times after just a short initial training process. All components have a fixed place on the carrier unit. The »pilot 4.0« image processing software guides users through all job steps and controls many processes fully automatically. The software lists the required components for each job step, and shows where the components are located on the carrier unit on the screen. »redomatic« is the solution for adjusting, measuring, and length-specific shrinkclamping of tools.

»pilot 4.0« Always
Steers Users on the
Path to Success

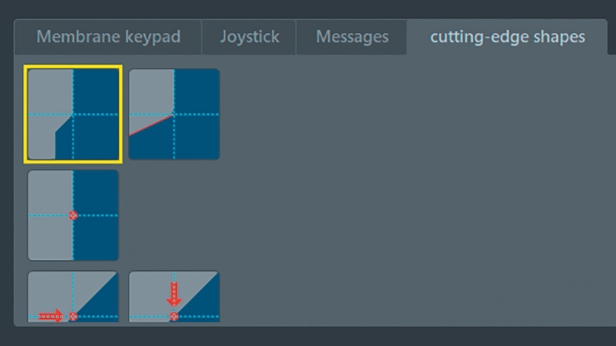

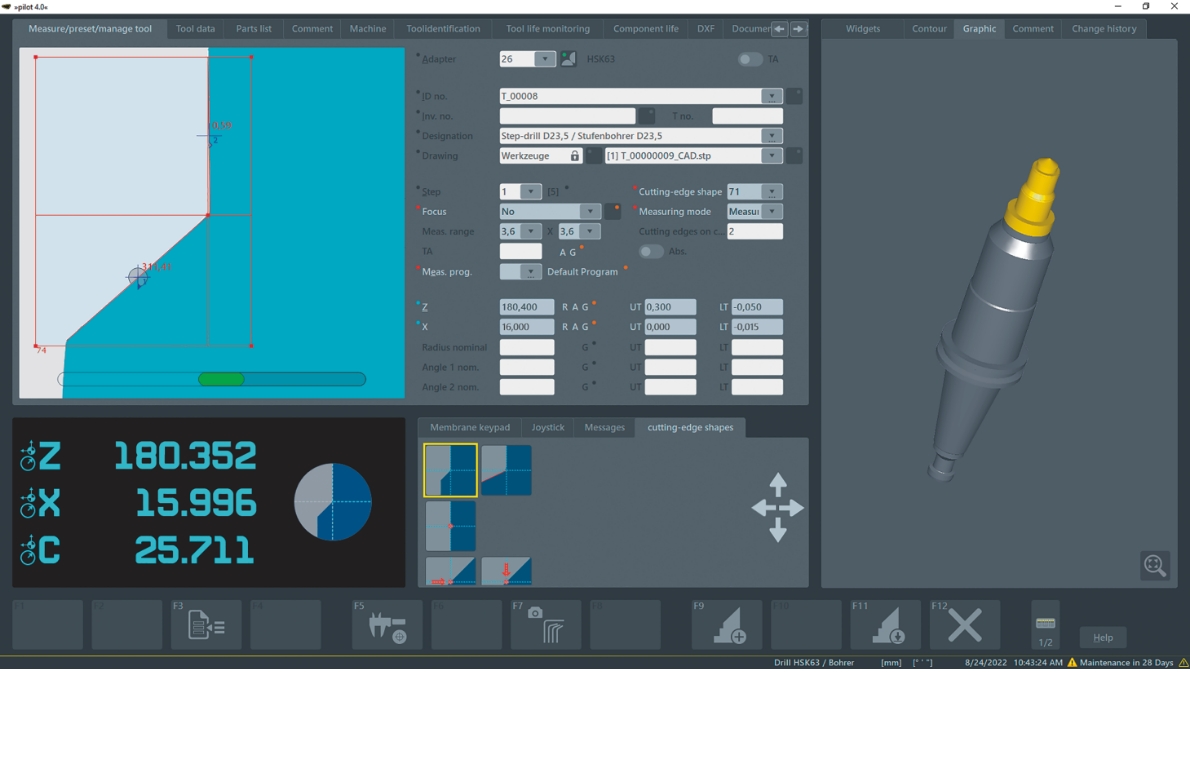

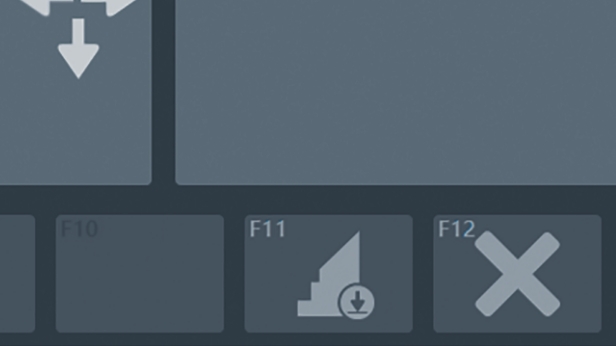

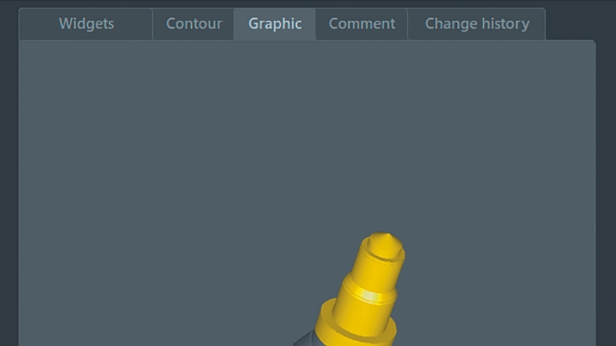

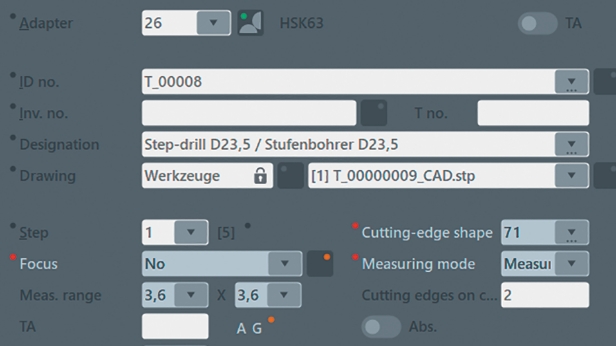

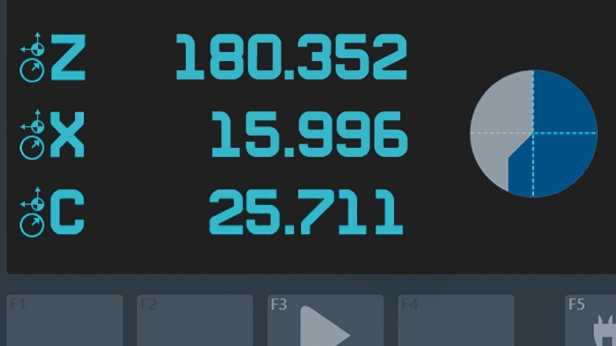

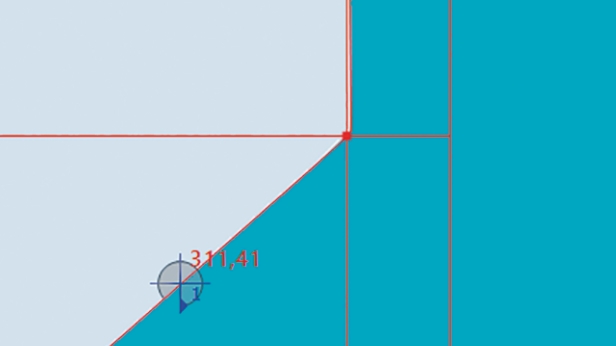

»pilot 4.0« is the extensive and comprehensive software solution for all ZOLLER presetting and measuring machines. The intuitive, graphic user guidance guides users quickly and reliably to precise measurement results. In addition, »pilot 4.0« is so simple to operate that even complex measuring tasks can be completed immediately. At the same time, the software offers such an extensive range of functionality that there is a solution for every demand. It is no coincidence that »pilot 4.0« is considered to be the unrivaled benchmark for tool setting, measuring and testing worldwide.
