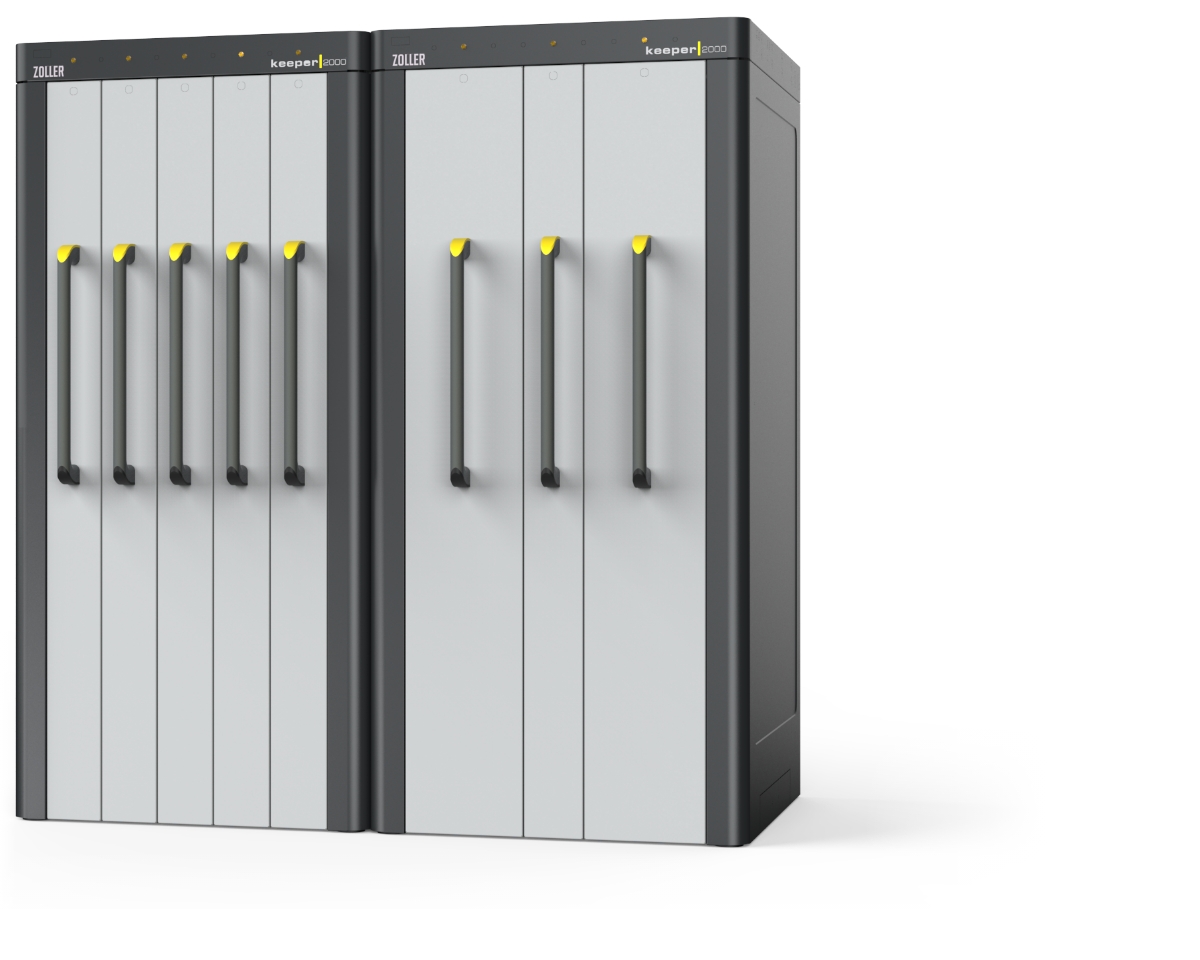

»keeper«
for complete tools and tool holders

Pull-out drawers

Tool inserts

Heavy-duty rollers & feet

Handles

Tool frames

Pull-out drawers

The pull-out drawers – can be locked mechanically or electronically. In the electronic version, the correct pull-out drawer is marked and unlocked via an LED light.

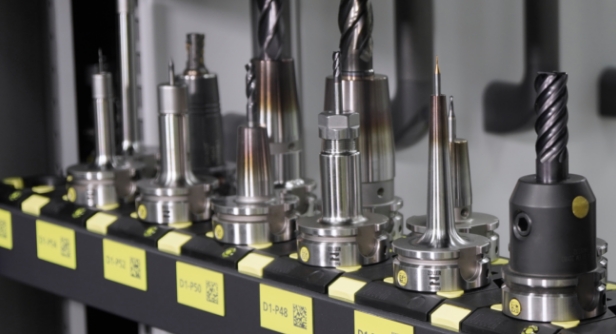

Variety of tool inserts

The tool inserts – are configured for space-saving storage of all common systems.

For permanent marking of the tool storage locations, the ZOLLER marking set offers the optimal solution. The marking is quickly visible with storage location in text form and as a DataMatrix code.

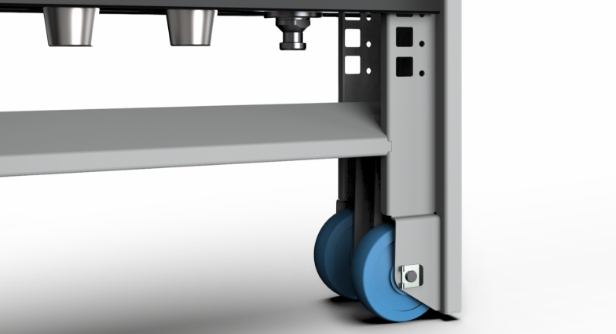

Sturdy heavy-duty rollers & feet

The adjustable feet – ensure that the "keeper" can be placed safely even on uneven ground. Thanks to high-quality heavy-duty rollers, the drawers can be moved easily.

Ergonomic handles

Wide, ergonomic handles – ensure the drawer can be easily extended with one hand, even when heavily loaded.

Flexible tool frames

The tool – frames are height adjustable, ensuring you can store tools of all sizes.

Overview of all options

With Smart Cabinets, you have the say: make your pre-selection and get in touch with our ZOLLER Sales team – we will be happy to advise you and configure your desired model.

»keeper«





Cabinet size and pull-out drawers

3 drawers, H x W x D: 78.7 x 39.4 x 41.3" (2000 x 1000 x 1050 mm), drawer depth 31.9" (810 mm)

5 drawers, H x W x D: 78.7 x 39.4 x 41.3" (2000 x 1000 x 1050 mm), drawer depth 31.9" (810 mm)

Payload

Max. 2204.6 lbs (1000 kg) weight per vertical pull-out drawer

Design

Mechanical design, 3 or 5 drawers

Electronic design, 3 or 5 drawers

Control

Side-mounted panel PC

Separate »cockpit« control unit with »quickPick« control software

TMS Tool Management Solutions – workstation

ZOLLER presetting and measuring machines – with Smart Cabinets software module

Division

Standard 6 tool frames for each drawer

Tool inserts – Version SK

SK 30, size S, width 2.8" (72 mm), max. 14 per frame

SK 40, size S, width 2.8" (72 mm), max. 14 per frame

SK 50, size L, width 3.7" (95 mm), max. 8 per frame

Tool inserts – Version HSK

HSK 25, 32, size S, width 2.8" (72 mm), max. 14 per frame

HSK 40, size S, width 2.8" (72 mm), max. 14 per frame

HSK 50, size S, width 2.8" (72 mm), max. 14 per frame

HSK 63, size S or L, width 2.8" (72 mm) or 3.7" (95 mm), max. 14 or 8 per frame

HSK 80, size L, width 3.7" (95 mm), max. 8 per frame

HSK 100, size L, width 3.7" (95 mm), max. 8 per frame

Tool inserts – Version VDI

VDI 30, size S, width 2.8" (72 mm), max. 14 per frame

VDI 40, size S, width 2.8" (72 mm), max. 14 per frame

Tool inserts – Version PSC

PSC 40, size S, width 2.8" (72 mm), max. 14 per frame

PSC 50, size S, width 2.8" (72 mm), max. 14 per frame

PSC 63, size S, width 2.8" (72 mm), max. 14 per frame

Tool inserts – Version blank

B58, width 2.3" (58 mm), max. 8 per frame

B75, width 3.0" (75 mm), max. 8 per frame

B120, width 4.7" (120 mm), max. 8 per frame

Tool inserts – Version adapter tool post

D 78 VSH size 1, width 3.7" (95 mm), max. 8 per frame

Tool inserts – Version wooden insert

Wooden insert/blank, width 12.9" (328 mm), max. 2 per frame

D 42 14 drill holes, width 12.9" (328 mm), max. 2 per frame
