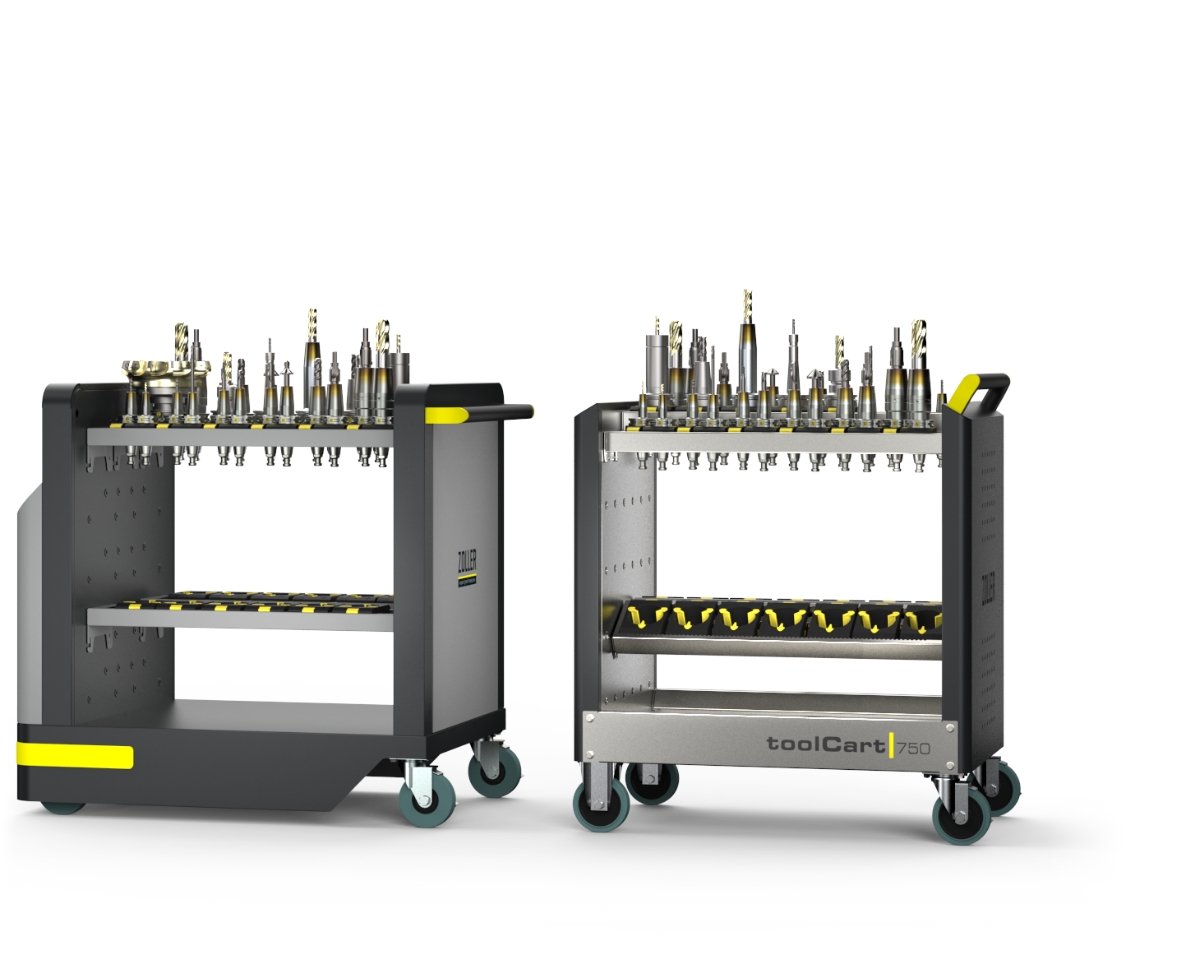

»toolCart« & »toolCart 750«
for convenient tool transportation

Tool frame

Tool inserts

Handle

Rollers

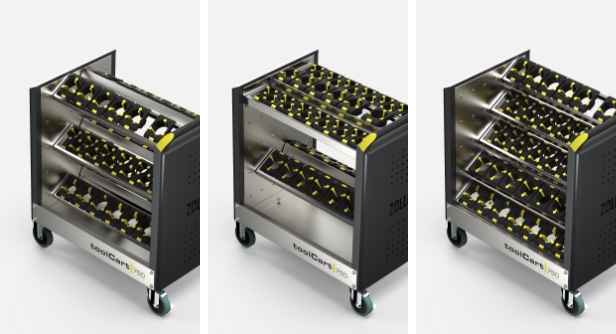

Sturdy tool frame

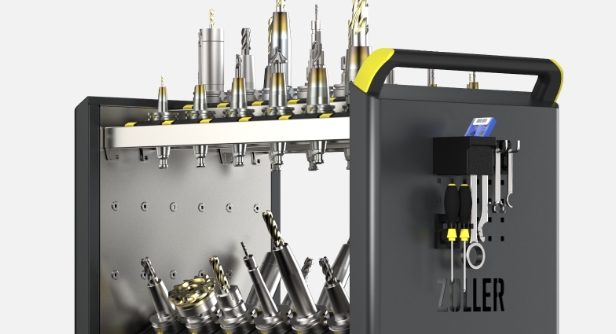

Tool frames – can be universally attached to the grid on the side walls and are suitable for complete tools of many different sizes. Thanks to the stable design you can transport with the »toolCart 750« despite its low own weight a total load of up to 551.2 lbs (250 kg). On the flexible grid you can store reliably important accessories as an oil can or working gloves with the mounting hook set.

Flexible tool inserts

Tool inserts – allow to store complete tools in different sizes. Thanks to the Y-shape of the tool inserts you transport space-savingly even more tools per frame in the »toolCart 750«, e.g. HSK 63.

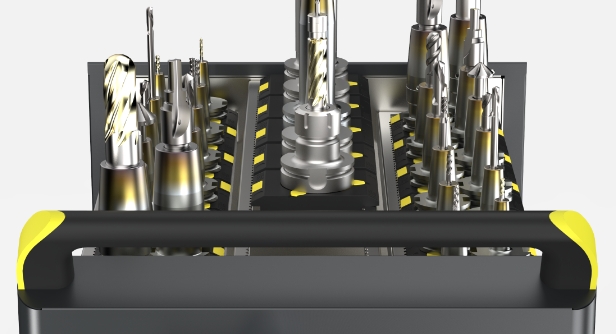

Ergonomic handle

Handle – in extreme sturdy and functional manner equips the »toolCart« reliably. Tools and adapters can be transported safely and comfortably through the production.

High quality rollers

Rollers – ensure workshop use and are equipped with a brake.

Overview of all options

With Smart Cabinets, you have the say: make your pre-selection and get in touch with our ZOLLER Sales team – we will be happy to advise you and configure your desired model.

»toolCart«





Size

H x W x D: 38.8 x 26.0 x 41.3" (985 x 660 x 1050 mm)

Payload

Max. 992.1 lbs (450 kg)

Tool inserts – Version SK

SK 30, size S, width 2.8" (72 mm), max. 13 per frame

SK 40, size S, width 2.8" (72 mm), max. 13 per frame

SK 50, size L, width 3.7" (95 mm), max. 7 per frame

Tool inserts – Version HSK

HSK 25, 32, size S, width 2.8" (72 mm), max. 13 per frame

HSK 40, size S, width 2.8" (72 mm), max. 13 per frame

HSK 50, size S, width 2.8" (72 mm), max. 13 per frame

HSK 63, size S or L, width 2.8" (72 mm) or 3.7" (95 mm), max. 13 or 7 per frame

HSK 80, size L, width 3.7" (95 mm), max. 7 per frame

HSK 100, size L, width 3.7" (95 mm), max. 7 per frame

Tool inserts – Version VDI

VDI 30, size S, width 2.8" (72 mm), max. 13 per frame

VDI 40, size S, width 2.8" (72 mm), max. 13 per frame

Tool inserts – Version PSC

PSC 40, size S, width 2.8" (72 mm), max. 13 per frame

PSC 50, size S, width 2.8" (72 mm), max. 13 per frame

PSC 63, size S, width 2.8" (72 mm), max. 13 per frame

Tool inserts – Version blank

B58, width 2.3" (58 mm), max. 7 per frame

B75, width 3.0" (75 mm), max. 7 per frame

B120, width 4.7" (120 mm), max. 7 per frame

Tool inserts – Version adapter tool post

D 78 VSH size 1, width 3.7" (95 mm), max. 7 per frame

Tool inserts – Version wooden insert

Wooden insert/blank, width 12.9" (328 mm), max. 2 per frame

D 42 14 drill holes, width 12.9" (328 mm), max. 2 per frame

Accessories

Additional tool frames

Pull out drawer

Storage board at the bottom

Storage board on the side

Tool inserts at choice

»toolCart 750«





Size

H x W x D: 35.8 x 22.0 x 34.6" (910 x 560 x 880 mm)

Payload

Max. 992.1 lbs (450 kg)

Tool inserts – Version SK

SK 30, size S, width 2.8" (72 mm), max. 12 per frame

SK 40, size S, width 2.8" (72 mm), max. 12 per frame

SK 50, size L, width 3.7" (95 mm), max. 7 per frame

Tool inserts – Version HSK

HSK 25, 32, size S, width 2.8" (72 mm), max. 12 per frame

HSK 40, size S, width 2.8" (72 mm), max. 12 per frame

HSK 50, size S, width 2.8" (72 mm), max. 12 per frame

HSK 63, size S or L, width 2.8" (72 mm) or 3.7" (95 mm), max. 12 or 7 per frame

HSK 80, size L, width 3.7" (95 mm), max. 7 per frame

HSK 100, size L, width 3.7" (95 mm), max. 7 per frame

Tool inserts – Version VDI

VDI 30, size S, width 2.8" (72 mm), max. 12 per frame

VDI 40, size S, width 2.8" (72 mm), max. 12 per frame

Tool inserts – Version PSC

PSC 40, size S, width 2.8" (72 mm), max. 12 per frame

PSC 50, size S, width 2.8" (72 mm), max. 12 per frame

PSC 63, size S, width 2.8" (72 mm), max. 12 per frame

Tool inserts – Version blank

B58, width 2.3" (58 mm), max. 7 per frame

B75, width 3.0" (75 mm), max. 7 per frame

B120, width 4.7" (120 mm), max. 7 per frame

Tool inserts – Version adapter tool post

D 78 VSH size 1, width 3.7" (95 mm), max. 7 per frame

Tool inserts – Version wooden insert

Wooden insert/blank, width 12.9" (328 mm), max. 2 per frame

D 42 14 drill holes, width 12.9" (328 mm), max. 2 per frame

Accessories

Additional tool frames

Tool inserts at choice
