Corpus – whose extremely robust construction ensures the perfect stability of the tool cabinet.
Sophisticated monitor holder

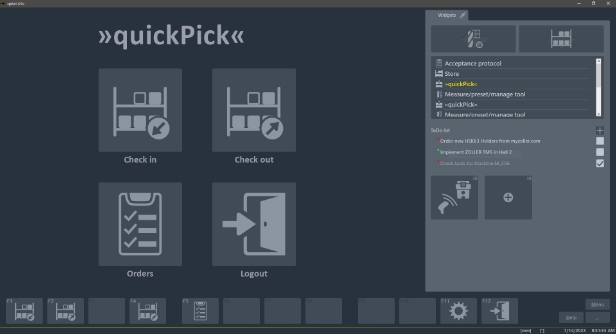

Monitor holder – whose table electronics with the control software »quickPick« guarantees safe operation: the storage locations of the opened drawer are graphically displayed in 3D on the monitor.
Intelligent LEDs

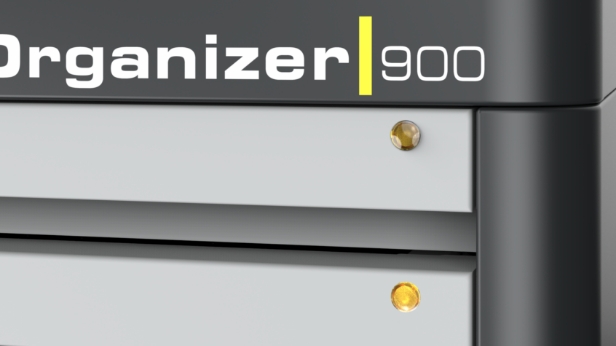

LEDs – are used for visual orientation and indicate which drawer and which compartment can be opened.
Individual drawers

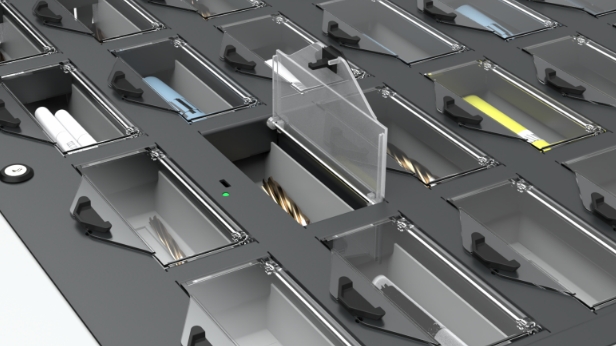

The drawers and compartments – composed according to your wishes, e.g. with »smartCompartment«, so you arrange your products as needed. The drawers can be controlled directly via the TMS Tool Management Solutions software.
Customized drawer height
Drawers – of different heights, which can be locked both mechanically and electronically.
Adjustable feet
The "feet" – are finely adjustable to set up the cabinet safely and stably even on uneven ground.
Overview of all options
With Smart Cabinets, you have the say: make your pre-selection and get in touch with our ZOLLER Sales team – we will be happy to advise you and configure your desired model.

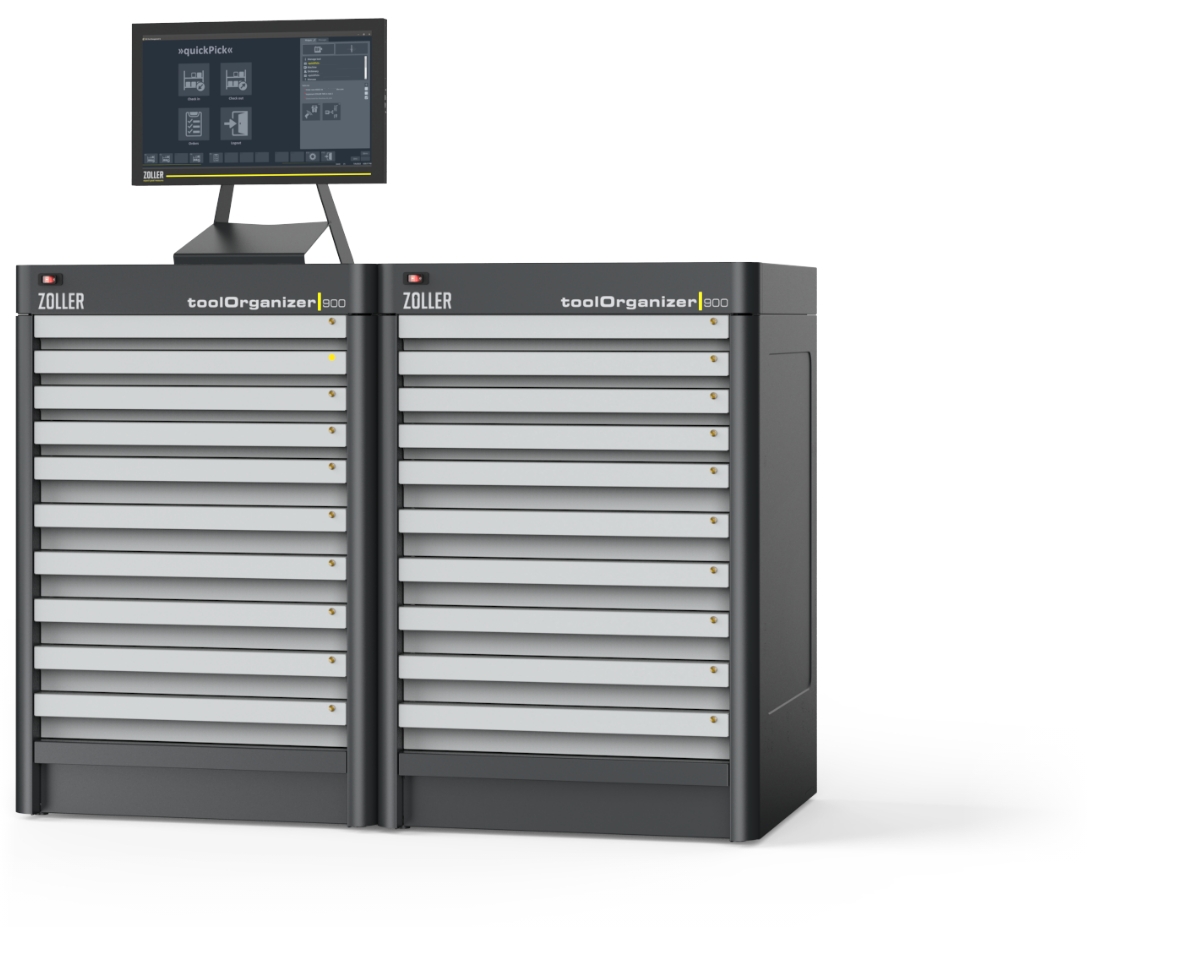

»toolOrganizer«
Configurable useable height
23.6" (600 mm), 35.4" (900 mm), 48.2" (1225 mm)
Cabinet size
»toolOrganizer 600« – H x W x D: 34.4 x 31.5 x 31.1" (875 x 800 x 790 mm)
»toolOrganizer 900« – H x W x D: 46.3 x 31.5 x 31.1" (1175 x 800 x 790 mm)
»toolOrganizer 1225« – H x W x D: 59.1 x 31.5 x 31.1" (1500 x 800 x 790 mm)
Payload
Max. 176.4 lbs (80 kg) per drawer, optionally max. 352.7 lbs (160 kg) (from drawer height 5.9" (150 mm))
Design
Mechanical central lock
Electronic drawer lock
Electronic single compartment locking »smartCompartment«
Control
Table electronics
Separate »cockpit« control unit with »quickPick« control software
TMS Tool Management Solutions – workstation
ZOLLER presetting and measuring machines – with Smart Cabinets software module
Drawer height
3.0", 3.9", 4.9", 5.9", 6.9", 7.9", 9.8", 11.8" (75 mm, 100 mm, 125 mm, 150 mm, 175 mm, 200 mm, 250 mm, 300 mm)
