Ergonomic one-hand control handle »eQ« (ergonomic & quick) – to easily move the optics carrier to the correct position in the Z- and X-axes. The button with the Solutions symbol can be individually configured with additional practical functions, making operation even easier and more convenient.

Z-, X-axis manual/CNC – the high-precision and smooth-running linear axes are used for fast and fine positioning of the measuring optics to the tool cutting edge. Whether manually for spot checks using the »eQ« one-hand control handle or CNC-controlled for fully automatic processes, these allow the measurement to be carried out safely, quickly and conveniently.

Manual fine adjustment – the alternative to CNC control. The ergonomic handwheels for additional manual fine adjustment of the Z- and X-axes are particularly suitable for the tool inspection module.

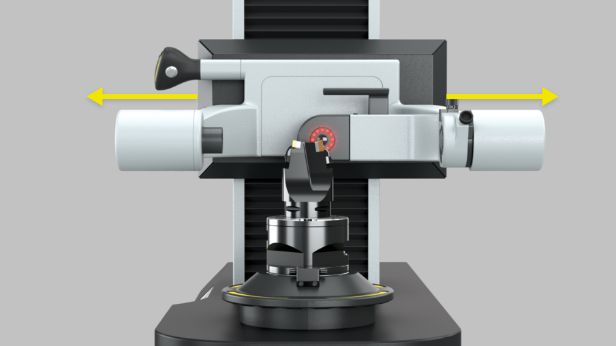

Y-axis – the optional, CNC-controlled linear axis for measuring off-center cutting edges on turning or multifunctional tools.

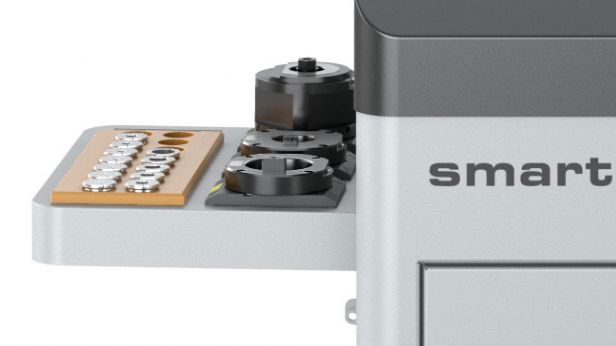

Practical storage board – holds adapter tool posts, adapters, tools and intermediate sleeves.

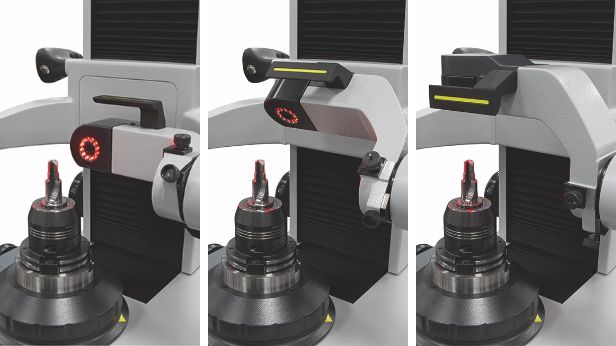

Tool inspection with manually swiveling incident light camera – for radial and axial inspection and measuring tasks. The integrated LED ring light with adjustable light intensity ensures optimum illumination of the surface. The clamping and locking device as well as the swivel range of -30° to 90° ensure an ideal perspective for the respective measuring point.

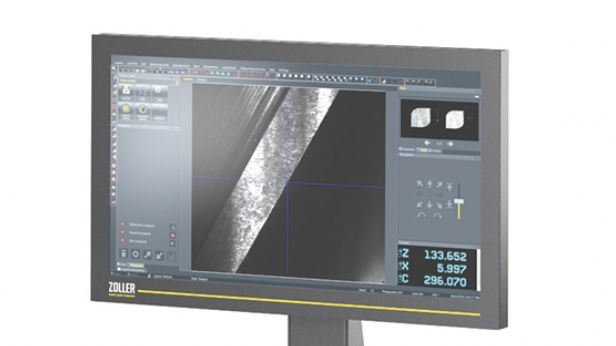

Software »pilot 4.0« – is self-explanatory, clearly laid out and enables the operator to take reliable measurements. It offers a uniform user interface on all ZOLLER systems – right up to ZOLLER TMS Tool Management Solutions. The individual structure of the software allows customer-specific adaptations to be implemented quickly.

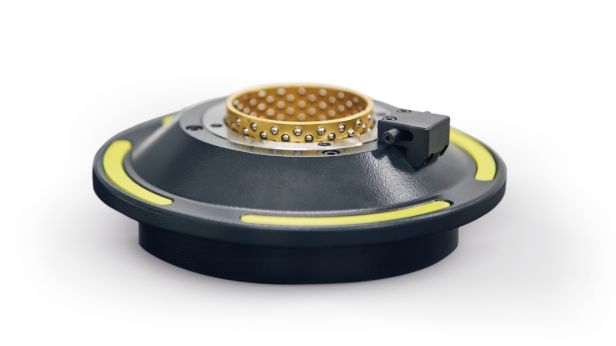

High-precision spindle »ace« – guarantees μm-accurate clamping of tools and holders of all kinds. Adaptation to many tool holder systems is guaranteed by the universal adapter tool post changing system. The optional CNC drive with autofocus and precise angle measuring system offers automatic focusing of the tool cutting edge and recording of the cutting contour.

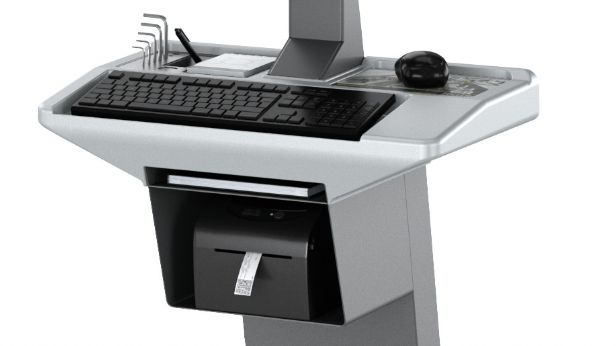

Separate control unit »cockpit« – offers space for keyboard and mouse as well as shelves for label and laser printers, scanners and tools. The height and angle of the 24" TFT color monitor can be adjusted to make using the software as comfortable as possible. This means that every operator can set up the workstation individually in just a few simple steps.

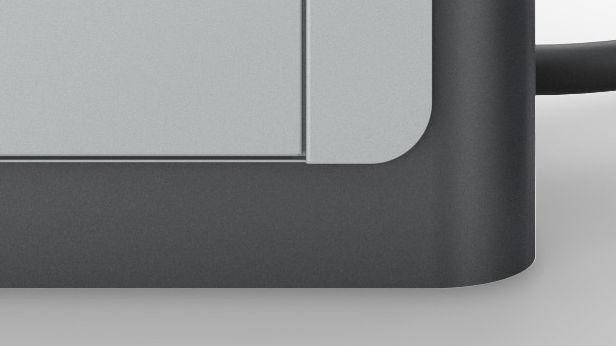

Stable table – forms the base of the device. Electronics and pneumatic elements are stored here in an industrial and service-friendly manner, all neatly laid out with sufficient space for good accessibility and optimum ventilation.
