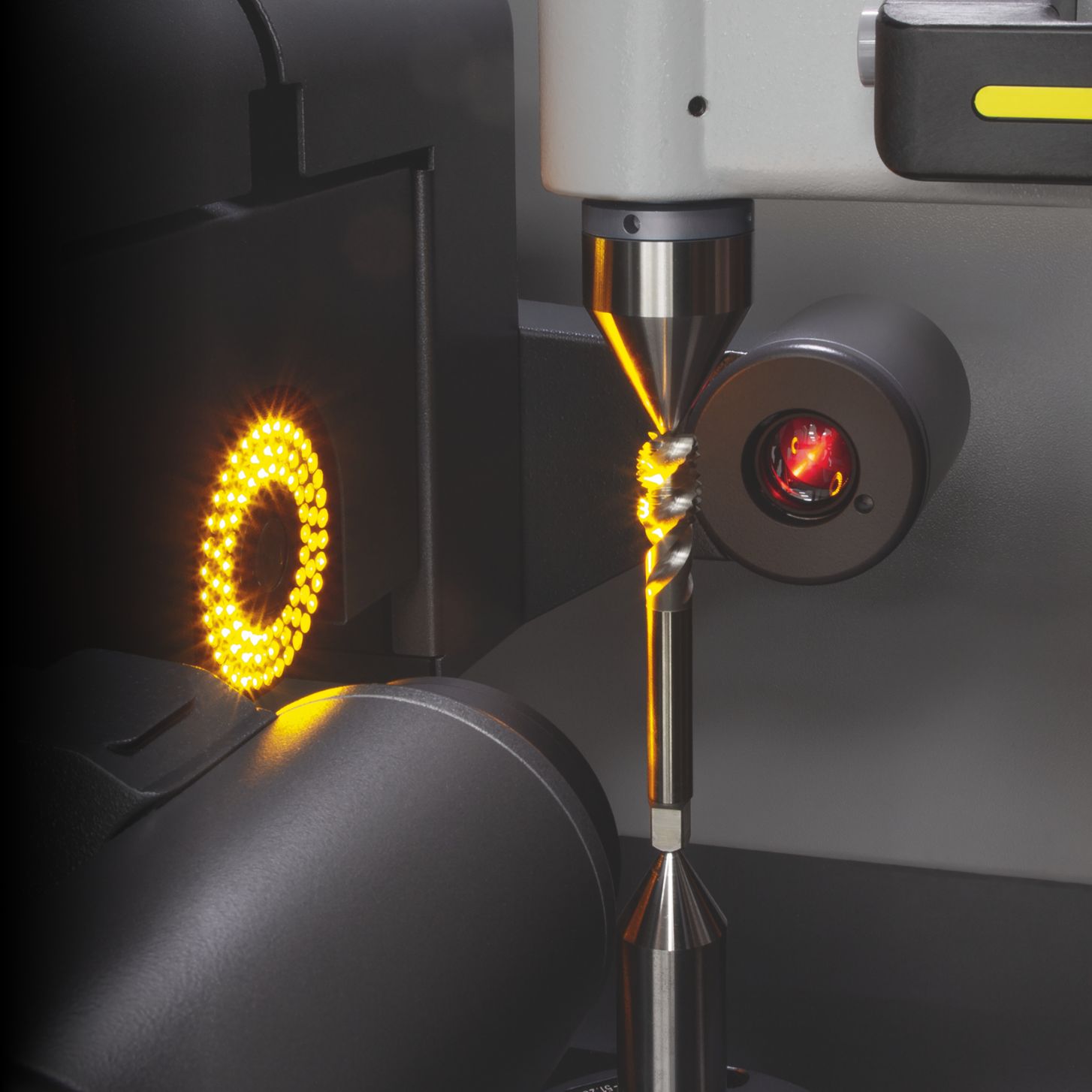

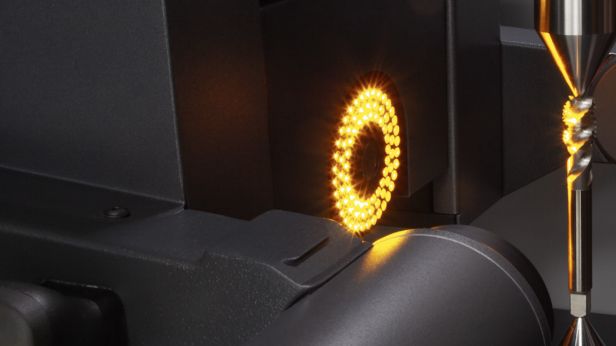

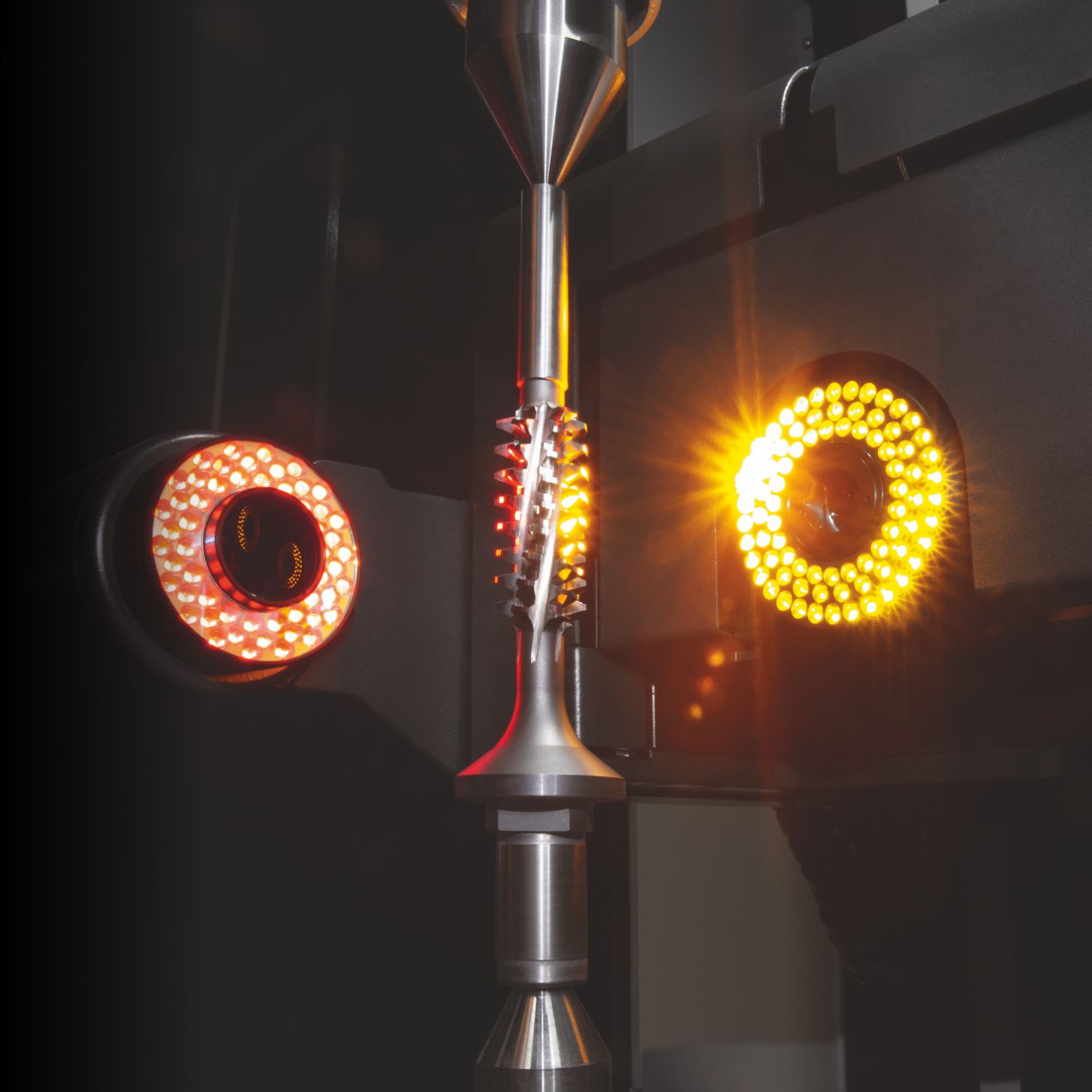

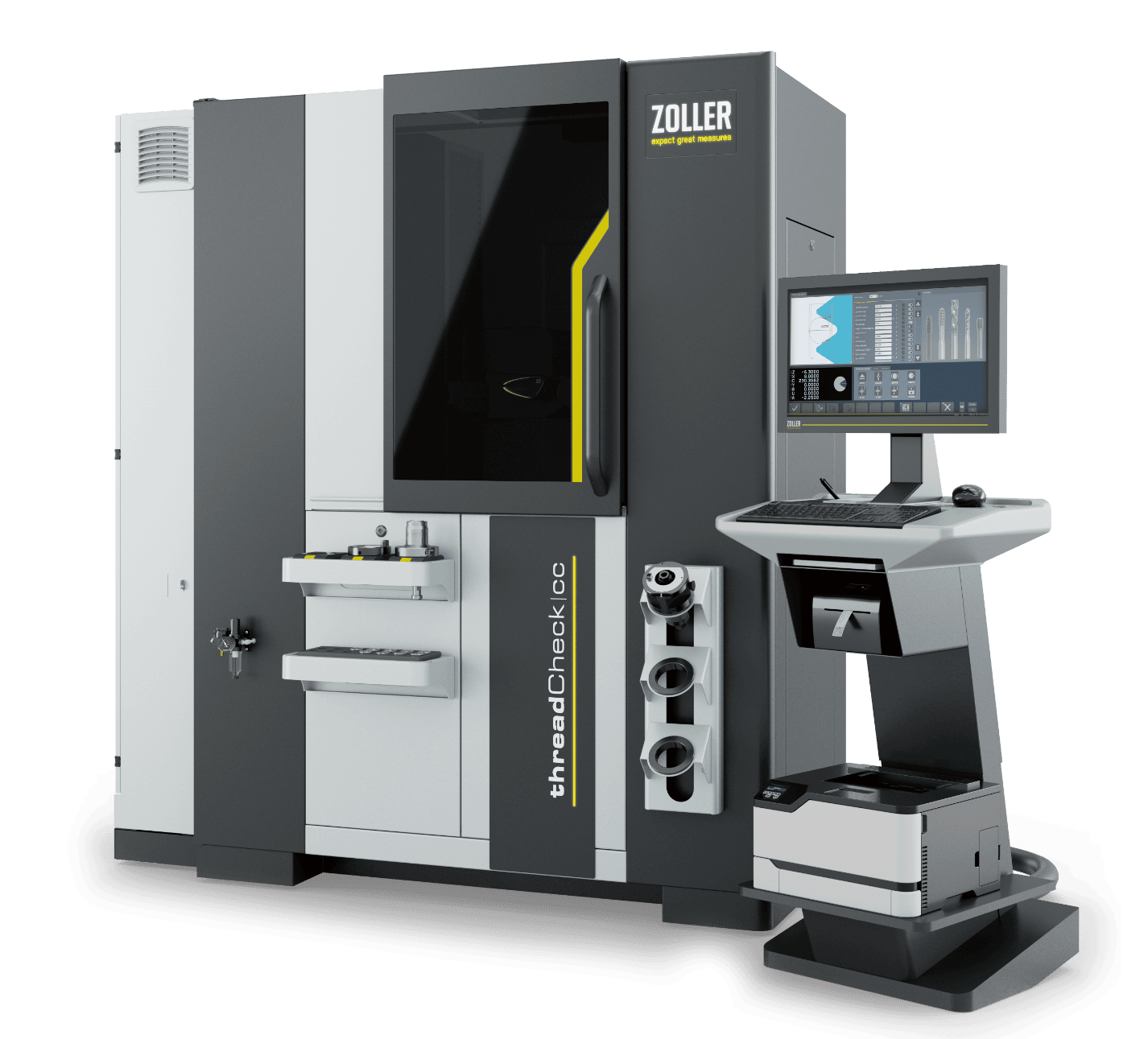

Incident light camera with multi-LED segment illumination and CNC swiveling device – for the inspection and automatic measurement of tool geometries on the circumference, in the chip space and on the face. Simply enter the target parameters in the measuring program dialog and every measured variable is automatically measured and logged: rake angle, radial relief angle, flute contour, chamfer width and many other geometries. The high-performance LEDs, segmented into eight areas, are automatically controlled by the measuring system and ensure optimum illumination of the surface thanks to automatic intensity control – for high precision and repeated accuracy. The sensor equipment is configurable.

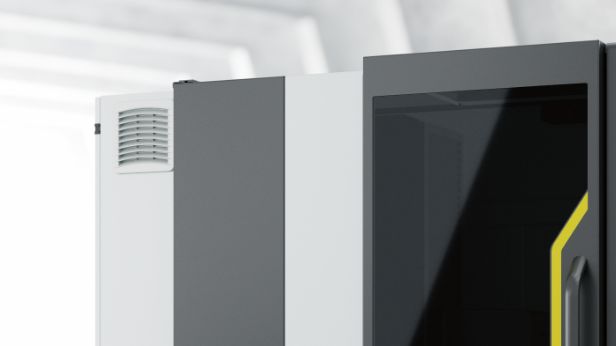

Control panel – with active ventilation. The electronic components are installed carefully and securely for defect-free operation. It also ensures optimum accessibility for maintenance and service work.

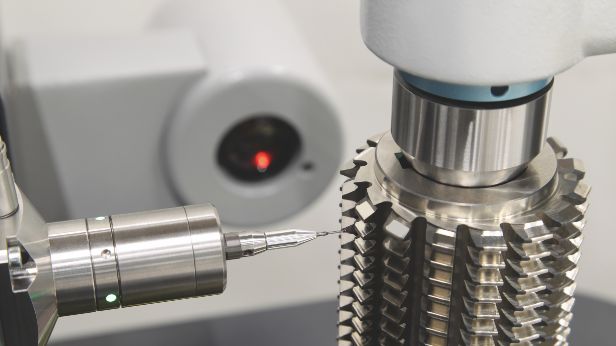

Swiveling multi-sensor optics carrier »orthoScan« – always finds the perfect viewing angle on the tool. This means that the cutting edge geometries of tools with a pitch, such as taps or hob cutters, can be measured in transmitted light without distortion.

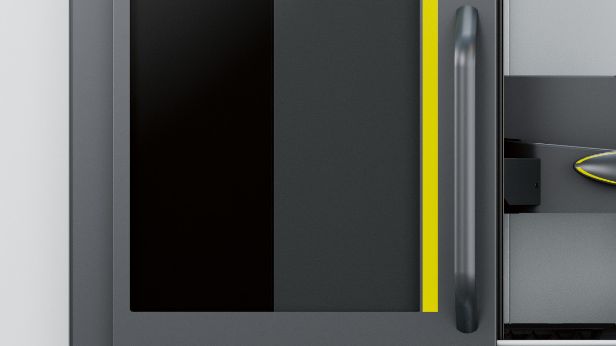

Space-saving and ergonomic sliding door – reliably keeps out external influences such as dirt or extraneous light during measurement. The generous opening, even in the upper area, allows heavy tools to be loaded and unloaded using lifting gear or a crane.

High-end design – with the device base made of hard stone as a highprecision platform for the measuring device tower, spindle and tailstock.

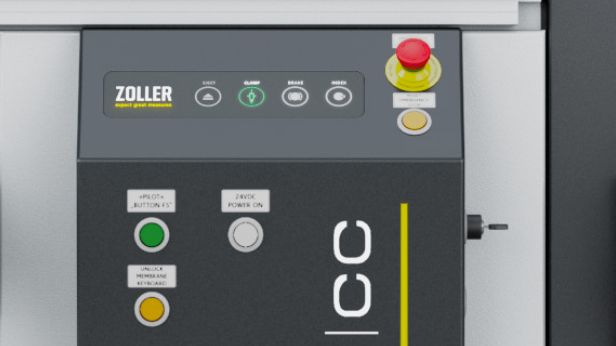

Safety package – in which important operating elements are located at the front of the measuring machine. This means you always have unrestricted access to the emergency stop switch, the reset button, the membrane keypad and the button for starting measuring processes.

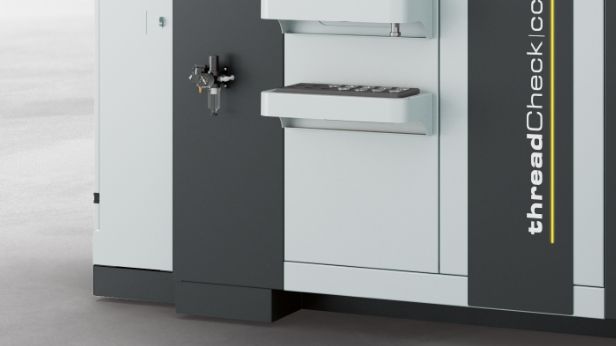

Vibration decoupling – the integrated, active vibration damping with automatic level control absorbs external vibration influences at the installation site.

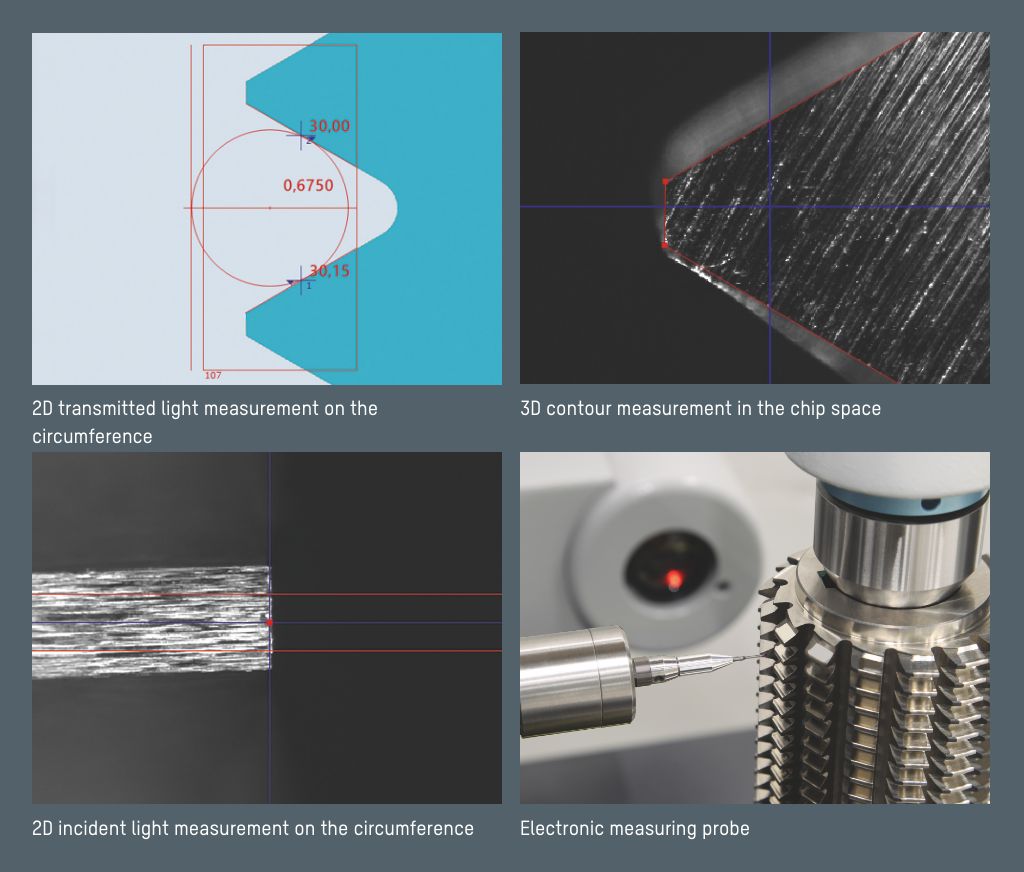

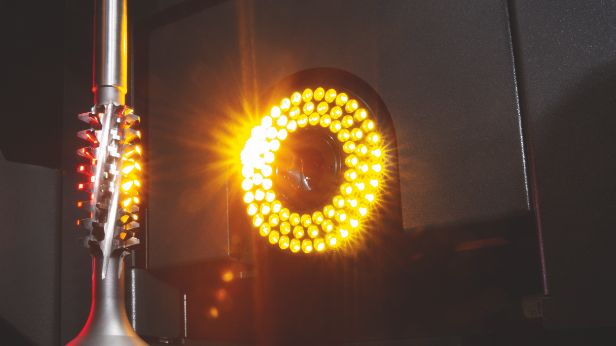

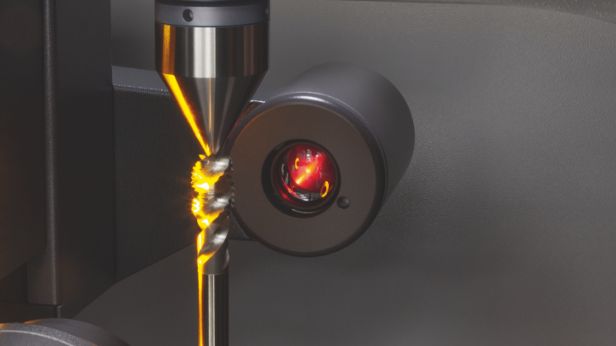

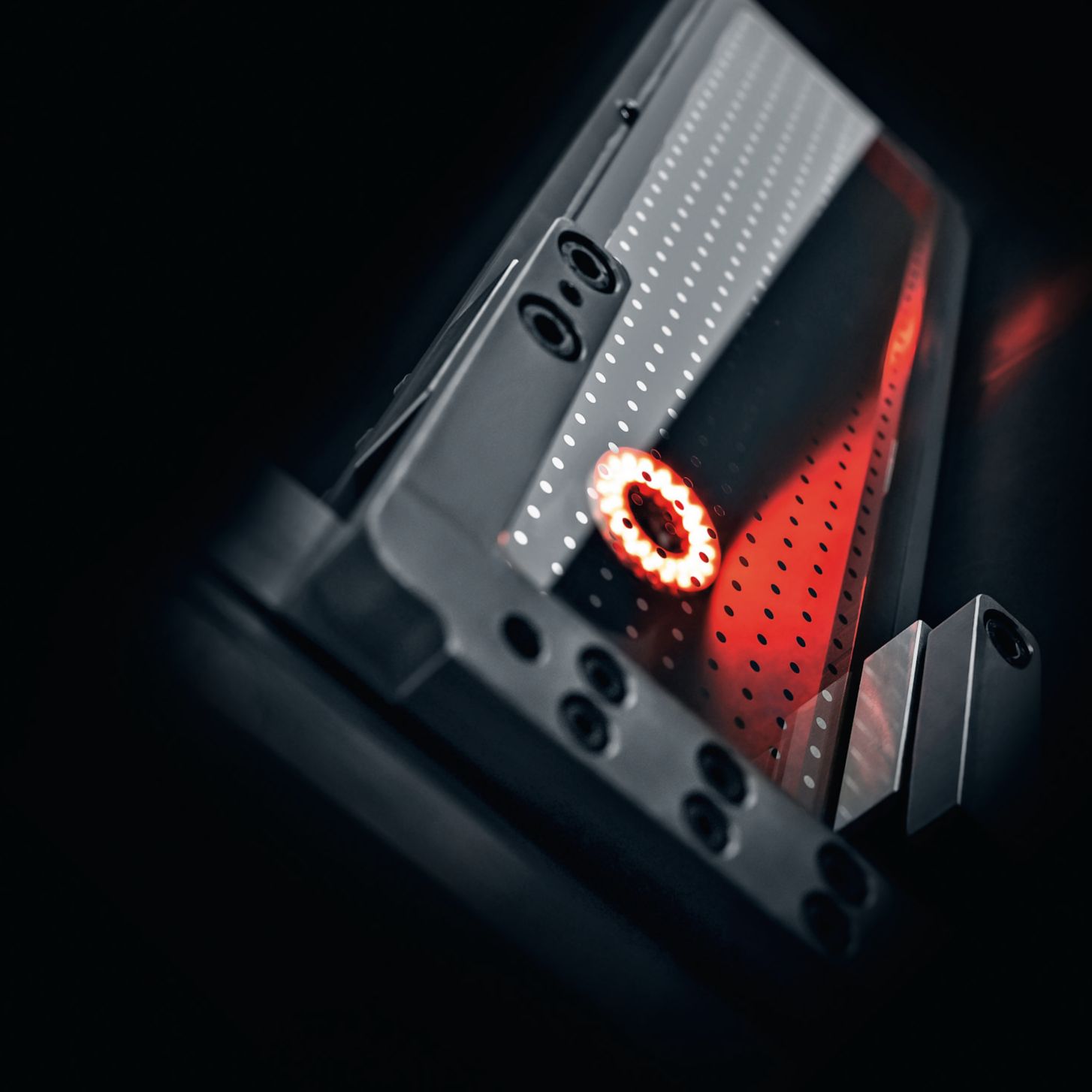

Transmitted light camera with multi-LED illumination – with high-quality, low-distortion optics and telecentric transmitted light, enables the μm-precise measurement of cutting edge contours and step geometry in the silhouette with up to 5 megapixels. The camera has a high frame rate for fast focus and contour recording from the tool rotation. The multi-LED ring light ensures bright, highcontrast illumination of the cutting edge inspection in incident light.

Pneumatic tailstock – with high-precision moving center allows the holding of long and thin tools as a counter center as well as clamping between centers. The smooth-running quick adjustment allows sensitive entry into the tool center and the automatic pressure build-up ensures that the tools are held securely without distortion. In addition, the integrated CNC drive enables automation for loading and clamping between centers.

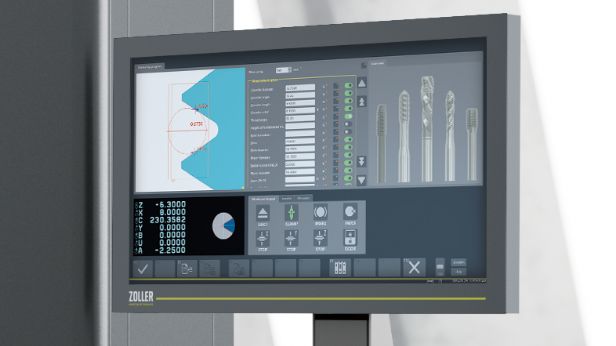

Software »pilot 4.0« – is self-explanatory, clearly laid out and enables the operator to take reliable measurements. It offers a uniform user interface on all ZOLLER systems – right up to ZOLLER TMS Tool Management Solutions. The individual structure of the software allows customer-specific adaptations to be implemented quickly.

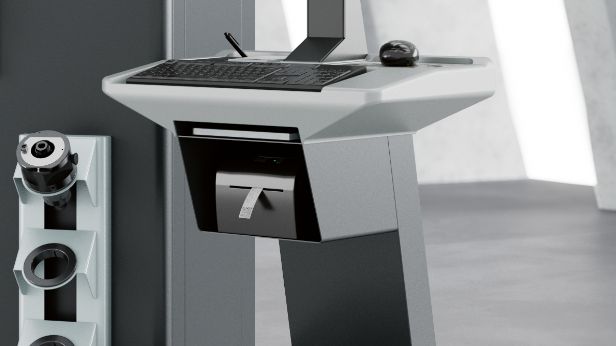

Control unit »cockpit« – offers the operator ergonomics and comfort through individual adjustment options. The »cockpit« can be adjusted in height and position and the 24" TFT color monitor can also be tilted.

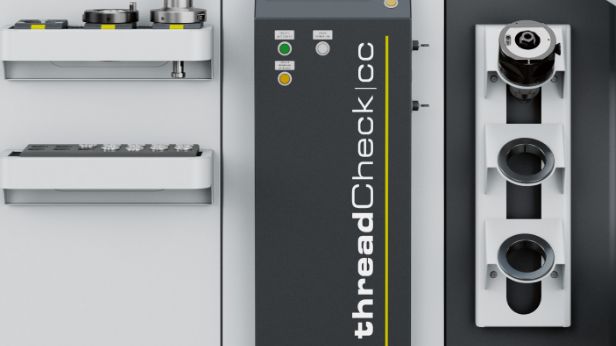

Storage options – for adapter tool posts and intermediate sleeves can be found in the integrated shelves. This means you always have your accessories to hand.
