Overview of all options
Two models, with lots of features and practical options: Choose between two different tool lengths and accessories for optimal everyday use. For highly customized workflows and circumstances in your production.
Make your choice easily with clear and complete information, or contact us: We are happy to assist you in selecting your model, as well as a variety of innovative options.
Device equipment
Integrated control unit (monitor holder) with 17 inch touch monitor and ZOLLER operating software

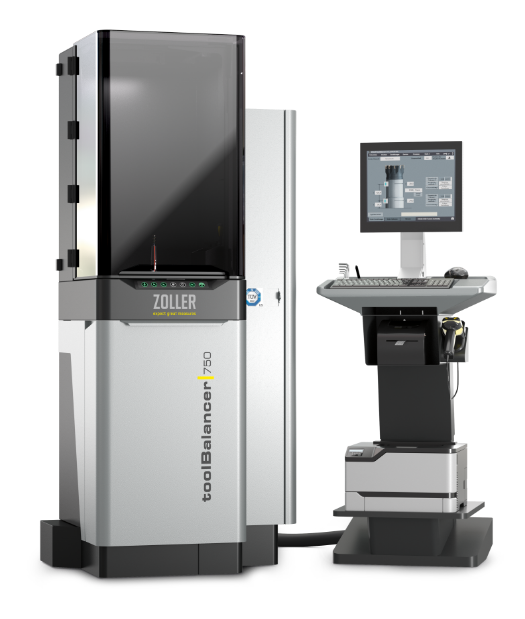

Separate »cockpit« control unit with 17 inch touch monitor and ZOLLER operating software, including keyboard, mouse and shelves for printer and other accessories
»twinPanel« safety cover for maximum safety during balancing
Control cabinet for securely holding all electronic components
Membrane keypad for operating the spindle and cover lock
“EMERGENCY STOP” SWITCH
Storage compartment for balancing adapter
Accessories
Tool identification via handheld scanner with holder
Precision scale (optionally with DAkkS certification)/tool scale
Column storage for scale and balancing screw set
Laser printer/label printer
Shelves for label printer, laser printer, tools
Test rotor
Calibration magnets
Balancing putty
Balancing screw set/balancing rings
UPS unit 230 V/750 VA
Floor attachment set
Technical Data

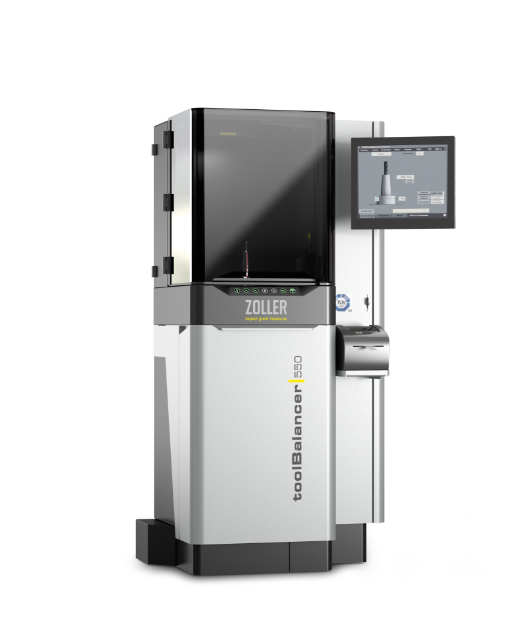

»toolBalancer 550«
»toolBalancer 750«
38.2 x 31.7 x 67.8" (973 x 806 x 1725 mm)
Dimensions with integrated control unit (monitor holder)
38.2 x 31.7 x 76.9" (973 x 806 x 1957 mm)
Dimensions with integrated control unit (monitor holder)
59.7 x 51.1 x 67.8" (1518 x 1300 x 1725 mm)
Dimensions with separate »cockpit« control unit
59.7 x 51.1 x 76.9" (1518 x 1300 x 1957 mm)
Dimensions with separate »cockpit« control unit
1631.42/1609.37 lbs (740/730 kg)
Weight of standard version
1664.49/1642.44 lbs (755/745 kg)
Weight of standard version
21.6" (550 mm)
Maximum tool length
29.5" (750 mm)
Maximum tool length
18.9" (480 mm)
Maximum tool diameter
18.9" (480 mm)
Maximum tool diameter
30 kg
Maximum tool weight
30 kg
Maximum tool weight
1200 U/min
Maximum spindle speed
1200 U/min
Maximum spindle speed
< 0,4 gmm
Measuring accuracy
< 0,4 gmm
Measuring accuracy
