efficient indexable insert changer

The »micBox« is the fully automatic ZOLLER system for assembling, rotating, turning, and exchanging indexable inserts on milling tools – operator-free and therefore absolutely process reliable. Processes that were previously performed in labor-intensive manual work can now be executed precisely and error-free, making the »micBox« a true game-changer in your manufacturing.

»micBox«
efficient indexable insert changer

The »micBox« is the fully automatic ZOLLER system for assembling, rotating, turning, and exchanging indexable inserts on milling tools – operator-free and therefore absolutely process reliable. Processes that were previously performed in labor-intensive manual work can now be executed precisely and error-free, making the »micBox« a true game-changer in your manufacturing.

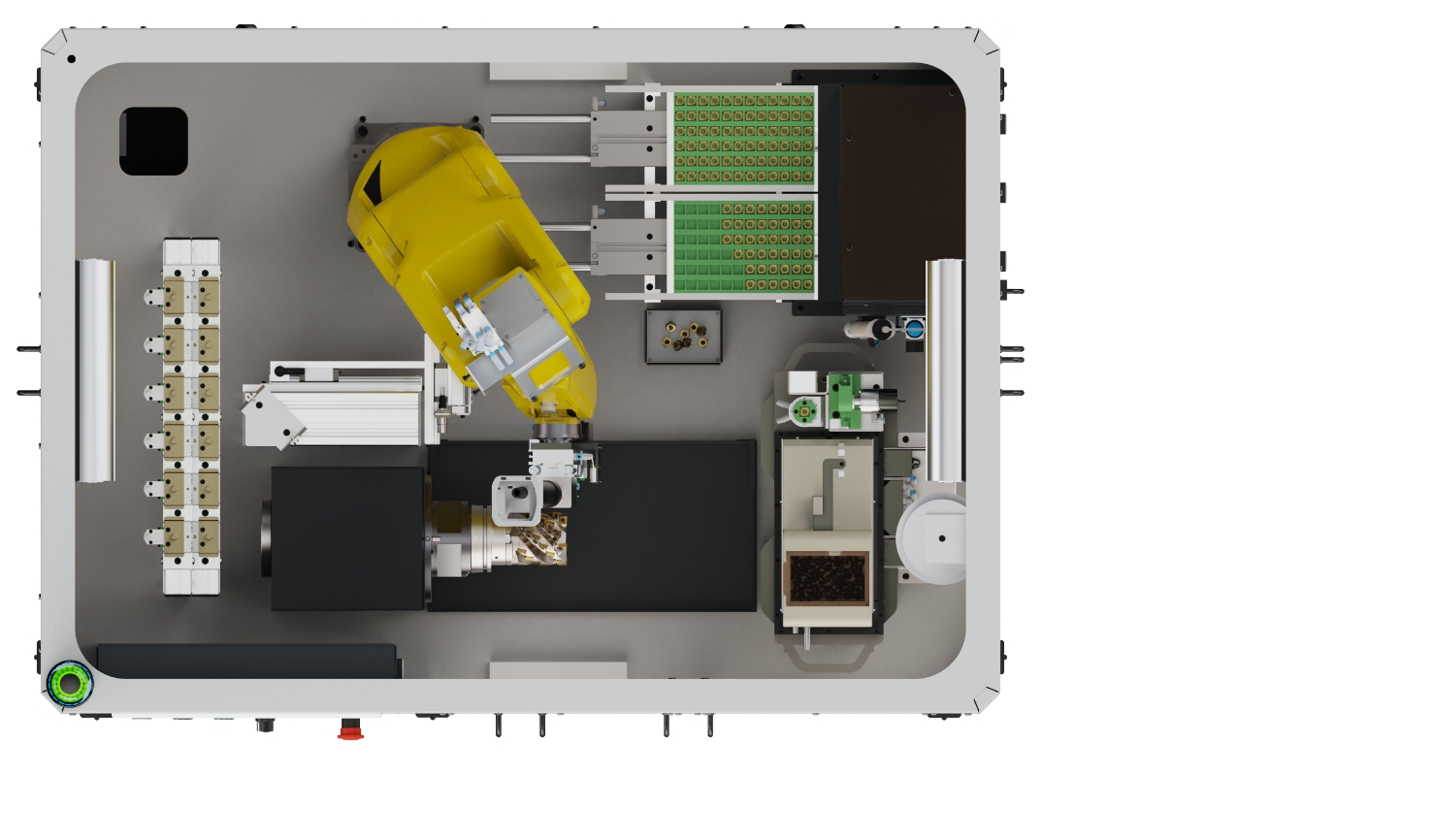

System Solution in Detail

6-axis robot

Magazine for indexable inserts

Rotating and turning unit

Screwdriving unit

Universal spindle

Control software

Gripper magazine

Lubrication unit for torquing

Agile 6-axis robot

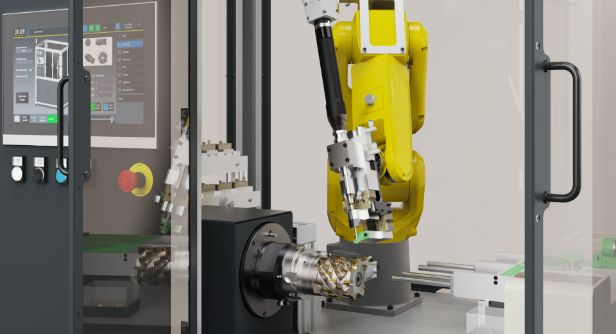

6-axis robot – from Fanuc with which the indexable inserts and torquing are exchanged precisely.

Integrated magazine for indexable inserts

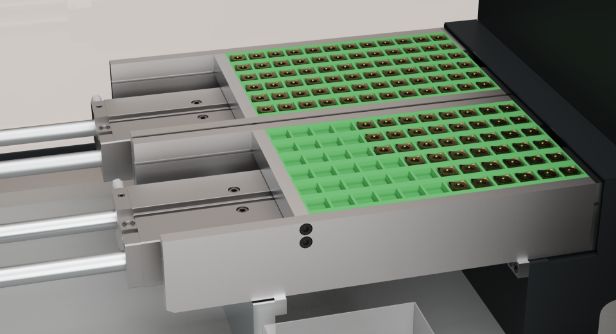

Magazine for indexable inserts – offers sufficient space. The two magazines within the »micBox« can be filled differently.

Moving rotating and turning unit

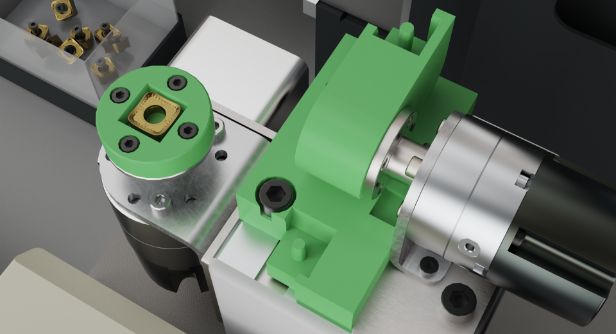

Rotating and turning unit – is filled with indexable inserts by the 6-axis robot. This use of the indexable inserts into the turning and indexing unit by the 6-axis robot ensures that the indexable inserts are realigned. With the screw magazine, a new screw is always used for the tool if required.

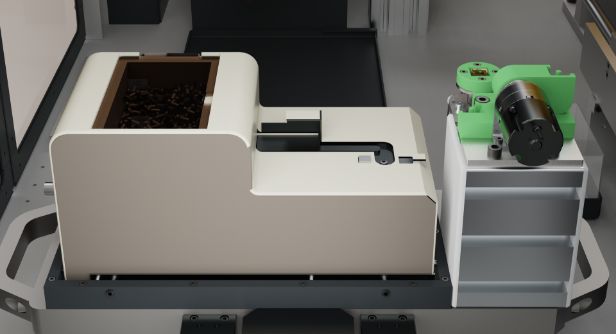

Efficient screwdriving unit

Screwdriving unit – with integrated vacuum gripper, which is fitted to the robot and always ensures precise exchange and tightening of torquing with the correct torque.

High-precision universal spindle

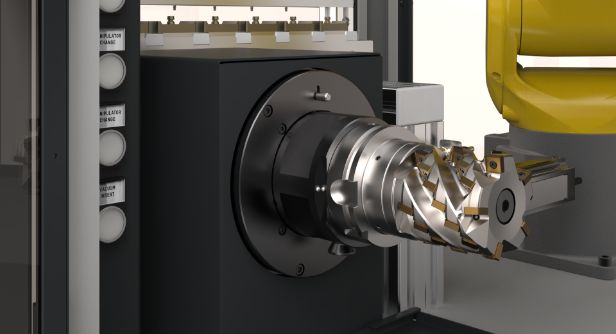

Universal spindle – enables the holding of tools up to 20 kg and also allows tools to be positioned precisely in rotation.

Powerful control software

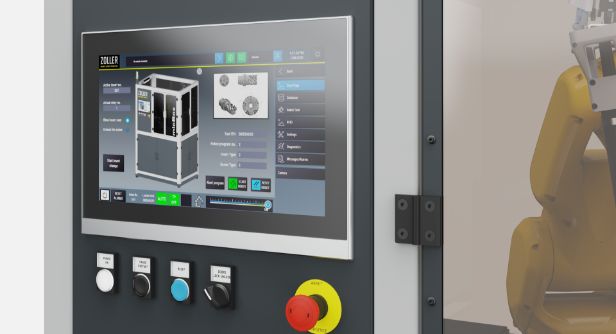

Control software – warrants the complete operation of the »micBox«. The software can additionally be displayed on external screens.

Multiple gripper magazine

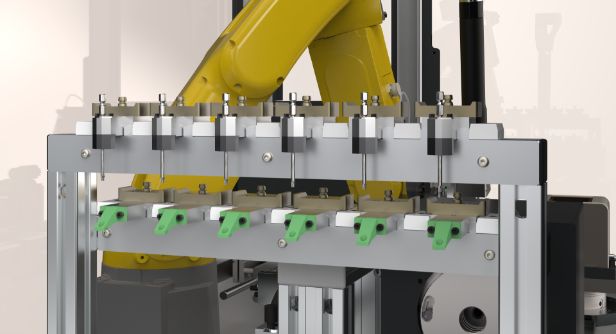

Gripper magazine – which can store up to six grippers for different indexable inserts.

Integrated lubrication unit

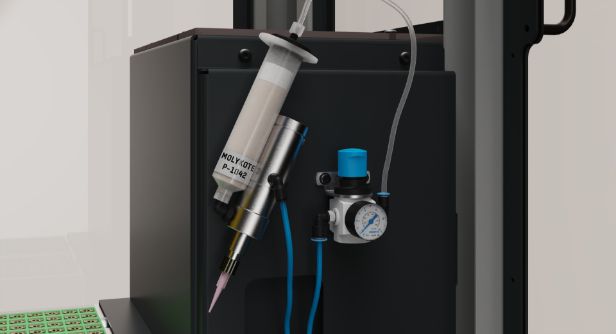

Lubrication unit – for torquing has a specialized grease and guarantees the simple release of the screws by means of the screw unit.



Technical data »micBox«*

Tool length up to 420 mm

Tool diameter up to 340 mm

Tool weight up to 20 kg

*Other dimensions available on request

Equipment

Fanuc 6-axis robot

Safety enclosure

Control software

Screwdriving unit

Screwdriving unit Torx bits Torx 15 / Torx 20 / Torx Plus 15 / Torx Plus 20

Vacuum indexable insert changer

Quick-change pallet for screw magazine, rotate and indexing unit

Magazines for reversible inserts 2x

Baluff tool ID

Lubrication unit for torquing

Size

H x W x D: 2138 x 1490 x 1190 mm
