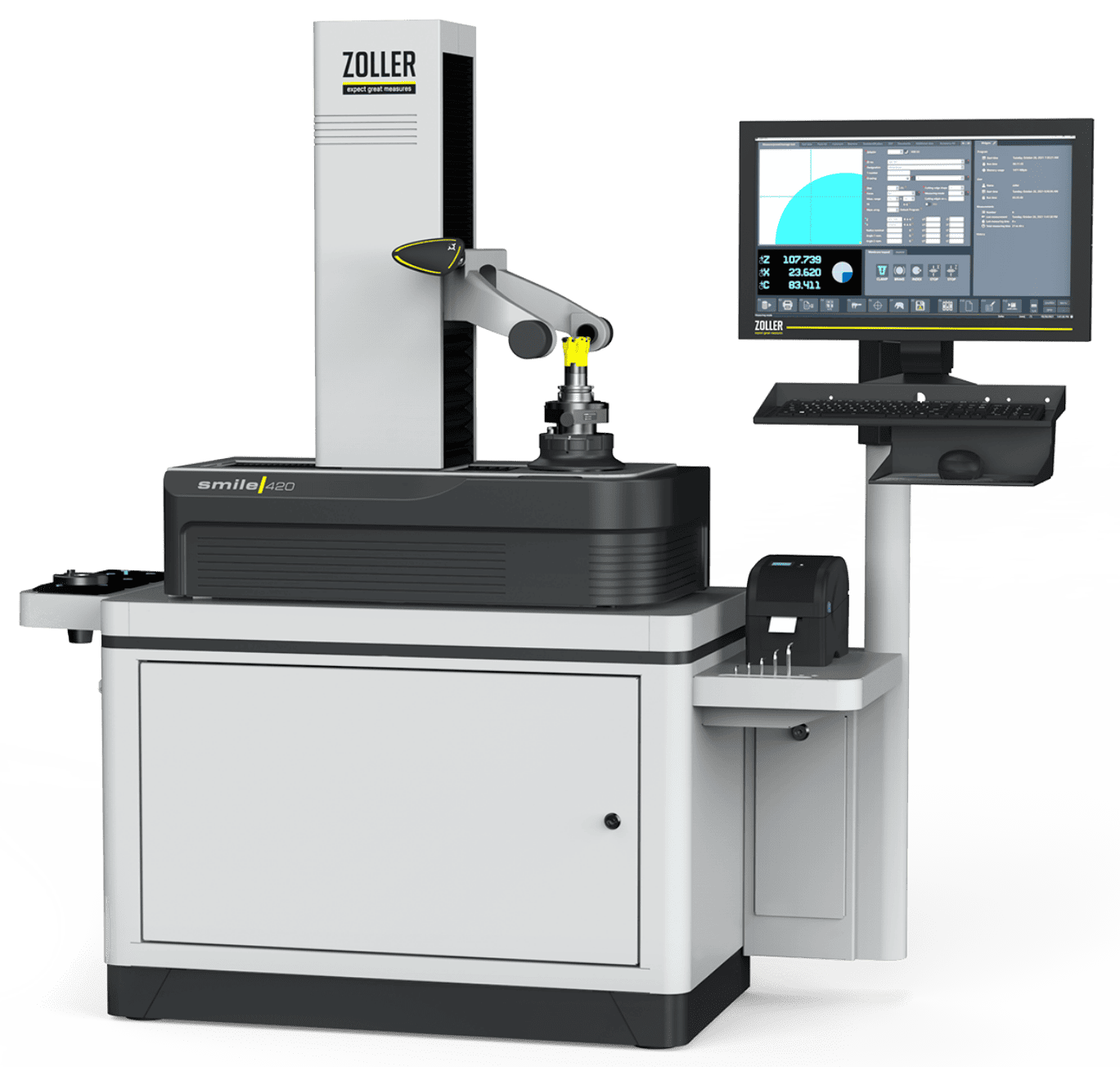

»smile 420«

The must-have for professional tool settings and measurement

Changes the workflow to precise data

A »smile 420« sets your production on the reliable basis of exact tool measurement data. This workflow provides the best starting conditions you can offer your CNC machines.

Changes the workflow to precise data

A »smile 420« sets your production on the reliable basis of exact tool measurement data. This workflow provides the best starting conditions you can offer your CNC machines.

Ergonomic operating concept

Built for measurements directly on the shop floor

Adapters for all common mounting systems

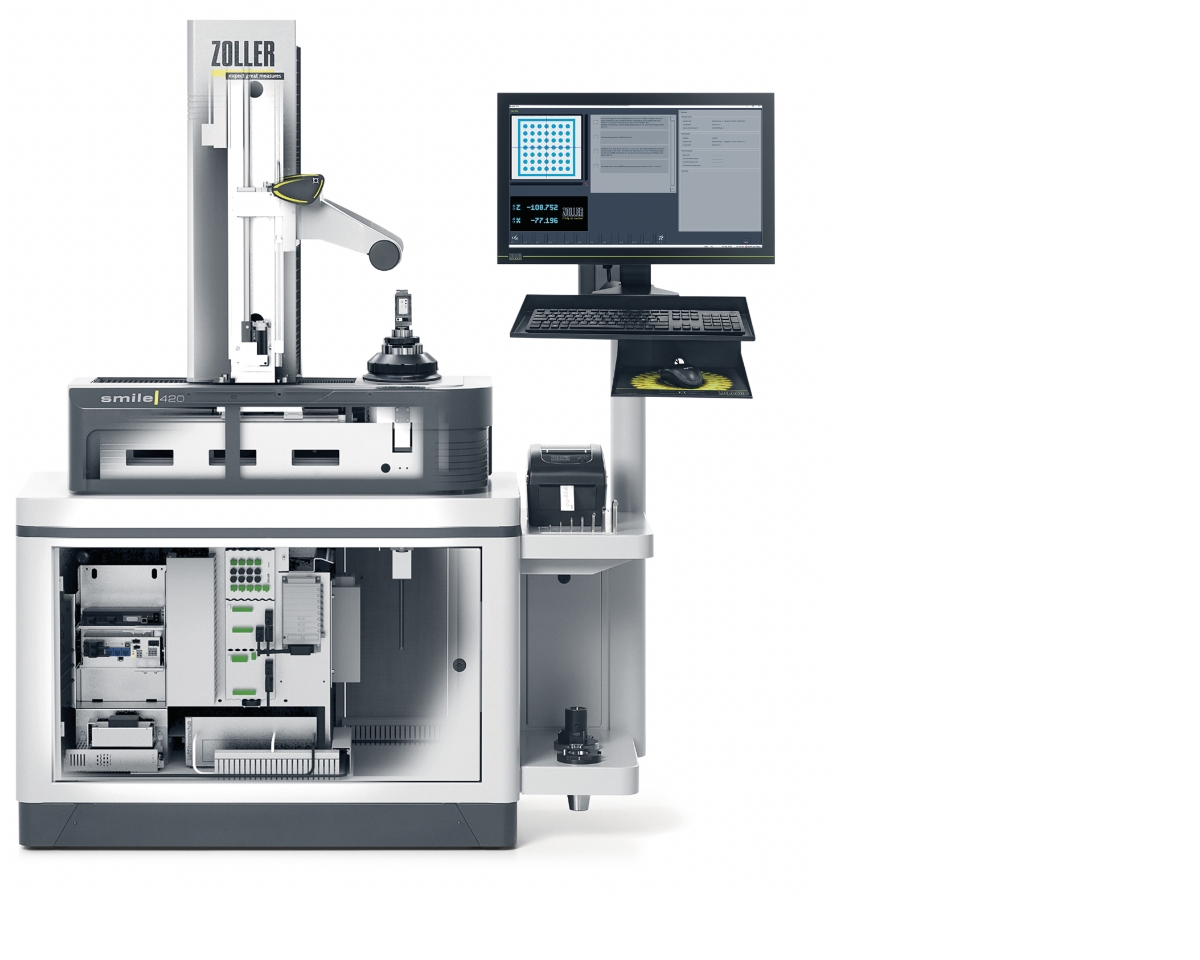

Strong reasons for the quality of ZOLLER

Panel-PC

Monitor holder

Main body

Bosch/Festo pneumatics elements

Stable machine table

Panel-PC

Panel-PC with industrial-grade 24“-TFT monitor – for sharp representation of tools and geometries. High computer performance to analyse and evaluate the measurement data.

Monitor holder with keyboard shelf

Main body

Main body in the Z-axis and X-axis – made of a light metal alloy specially developed for measuring machines. Designed to record the weight and forces of the tools. The guarantee for long-term stability and precision in process reliable measuring.

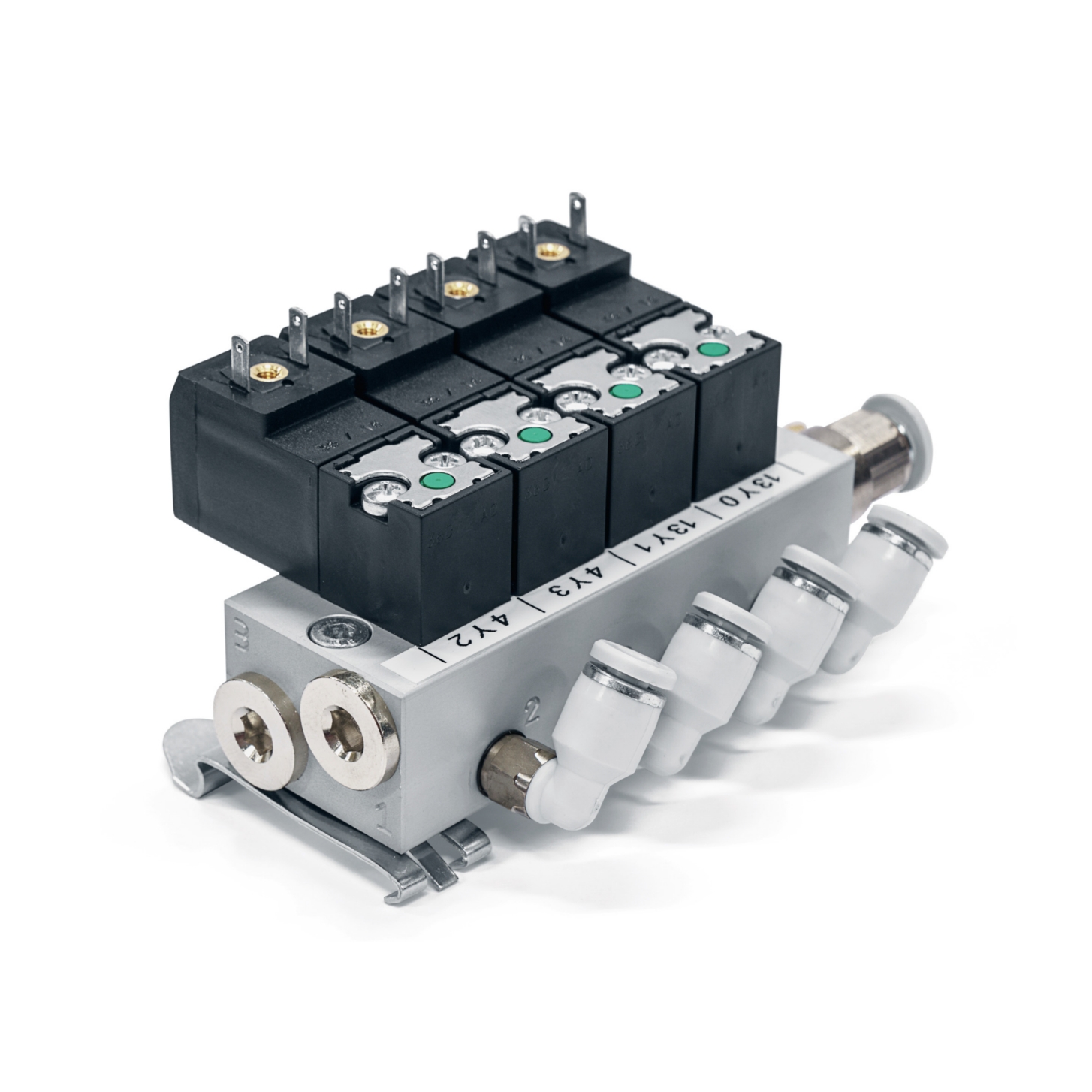

Bosch/Festo pneumatics elements

Bosch/Festo pneumatic elements – for the safe operation of pneumatics functions such as the power clamping functions on the spindle.

Stable machine table

Stable machine table – the basis of the device: Computer, pneumatic elements and electronics are housed here. Good accessibility and optimal ventilation.

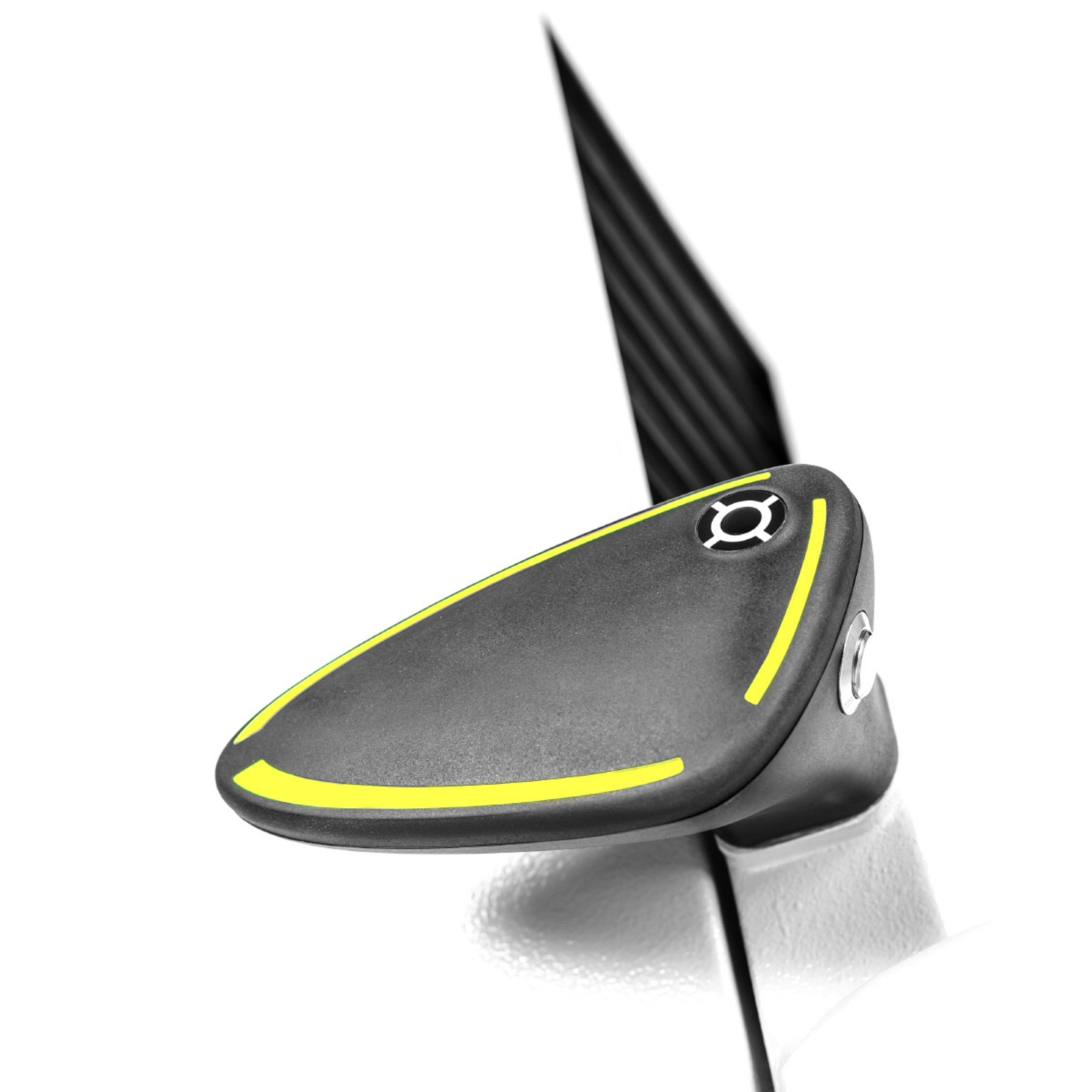

Ergonomics in the handle

The »eQ« (ergonomic & quick) one-hand control handle is all you need to adjust the entire appliance tower in the X-axis and Z-axis with just one hand. In addition, important functions can be assigned to the »eQ« release button. This makes operation even more convenient and ergonomic.

Ergonomics in the handle

The »eQ« (ergonomic & quick) one-hand control handle is all you need to adjust the entire appliance tower in the X-axis and Z-axis with just one hand. In addition, important functions can be assigned to the »eQ« release button. This makes operation even more convenient and ergonomic.

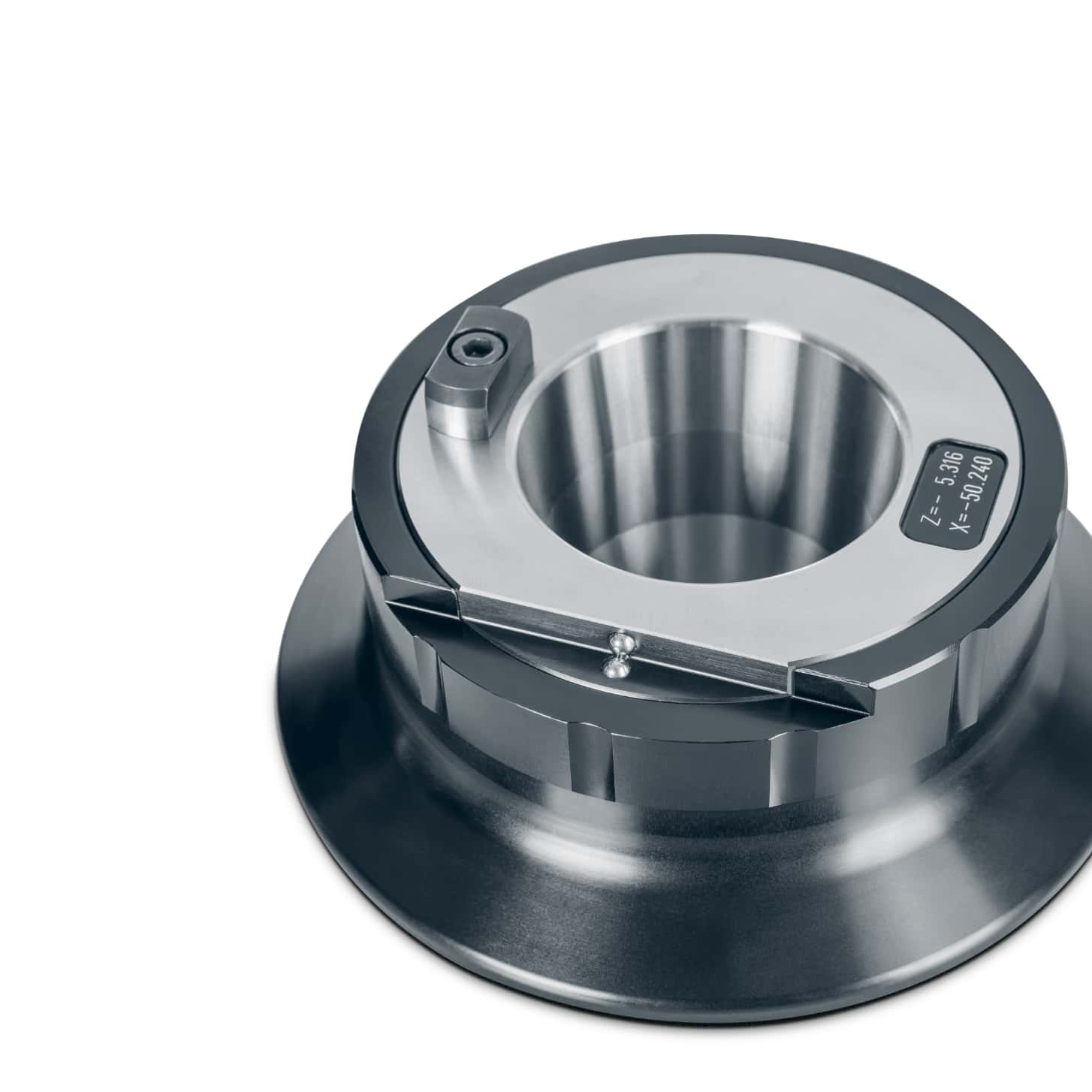

Prepared for high precision

The SK 50 spindle records adapters with SK50 holding. It delivers precise results with every measurement thanks to its especially special features. It has a concentricity of < 2 µm, a pneumatics spindle brake, 4 x 90° spindle indexing and integrated calibration balls.

Prepared for high precision

The SK 50 spindle records adapters with SK50 holding. It delivers precise results with every measurement thanks to its especially special features. It has a concentricity of < 2 µm, a pneumatics spindle brake, 4 x 90° spindle indexing and integrated calibration balls.

Built for production

Everything about »smile 420« is designed for durability and continuous use. Whether large-scale production, medium-sized operation or small production - this presetting and measuring machine keeps up with your cycle. Even right next to the CNC machine.

Built for production

Everything about »smile 420« is designed for durability and continuous use. Whether large-scale production, medium-sized operation or small production - this presetting and measuring machine keeps up with your cycle. Even right next to the CNC machine.

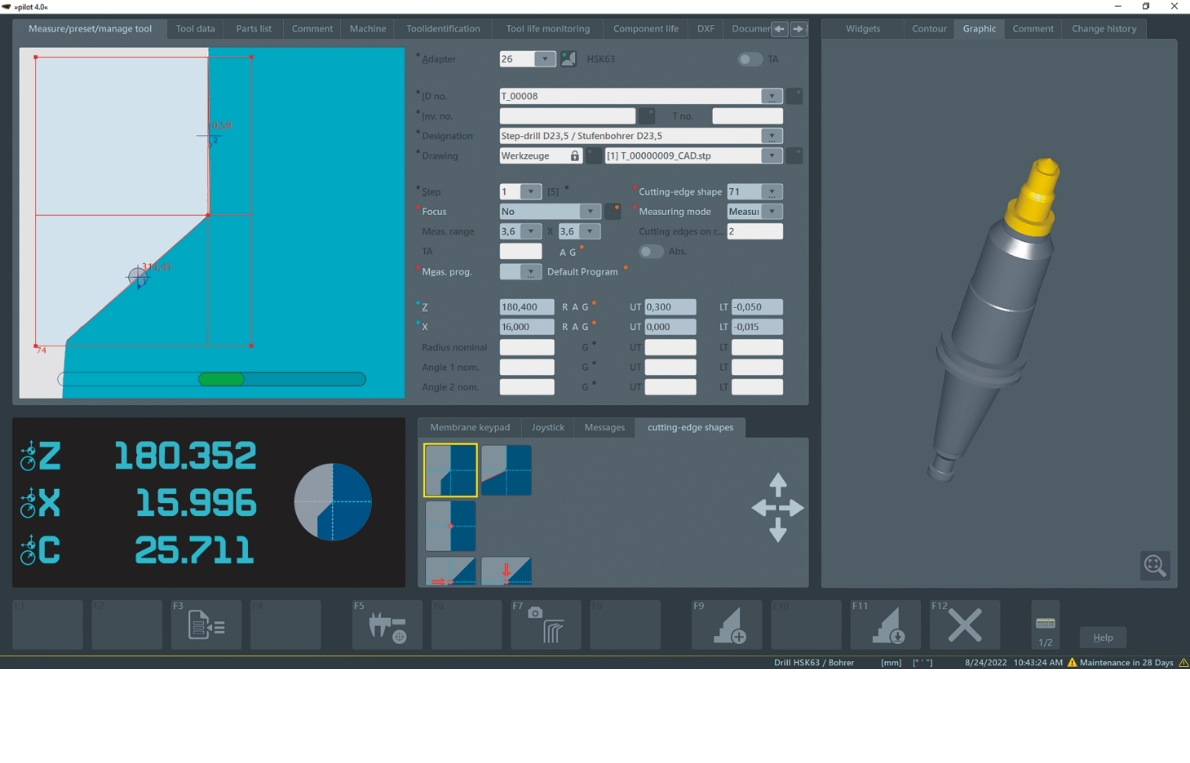

»pilot 4.0« – the software that sets the standard worldwide

»pilot 4.0« is the user-friendly device software and image processing of your »smile 420« and »venturion 450«. With the intuitive graphic user guidance, you can quickly and safely obtain precise measurement results and production-relevant tool data. Even complex measuring tasks can be completed immediately. It is not for nothing that »pilot 4.0« applies as the world's unrivalled benchmark for tool settings, measurement and testing.

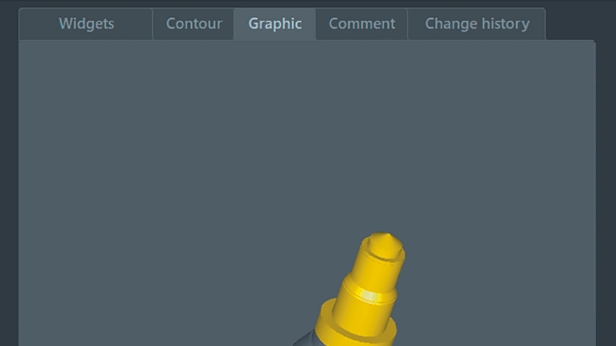

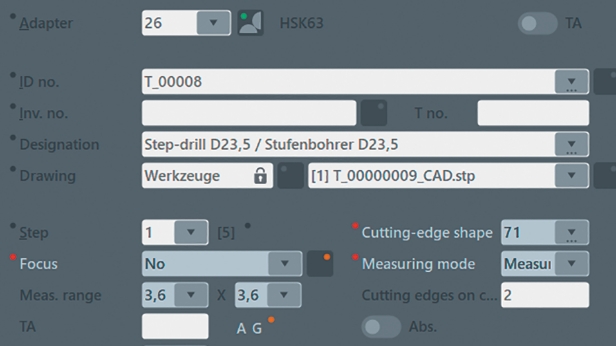

Tool-specific information

Adapter management

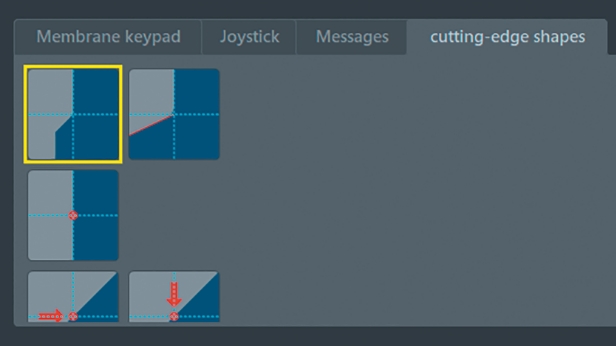

Cutting-edge shapes

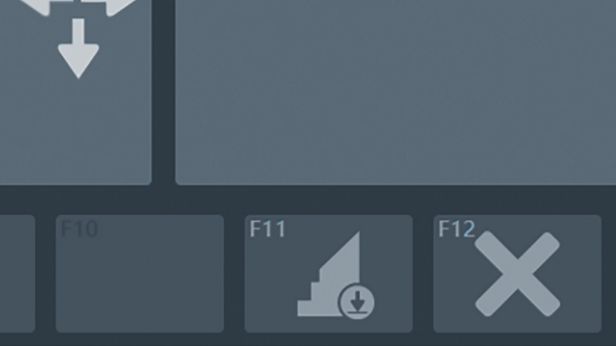

Function buttons

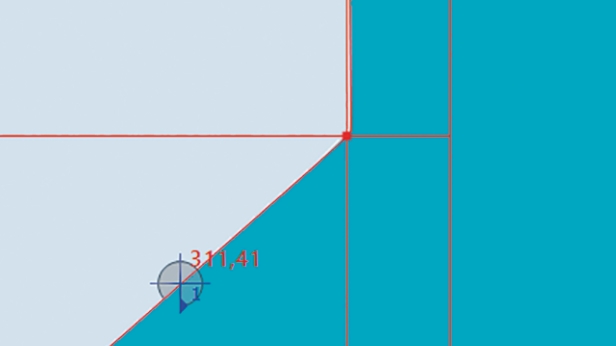

Current camera image

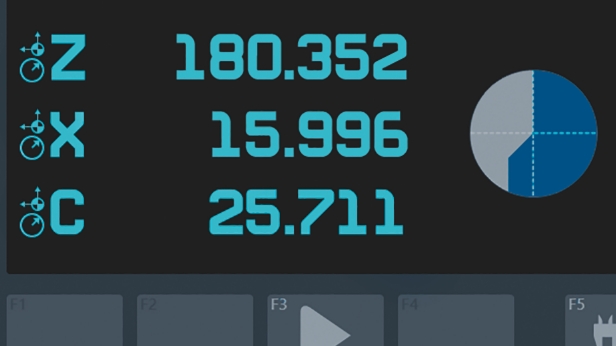

Current position information
