01. Select tool type, e.g. end mill > end mill with corner radius

02. Select the desired parameters

03. Active measurement e.g. cutting contour corner radius

04. Measurement results (19 items, measured fully automatically and without data input/programming)

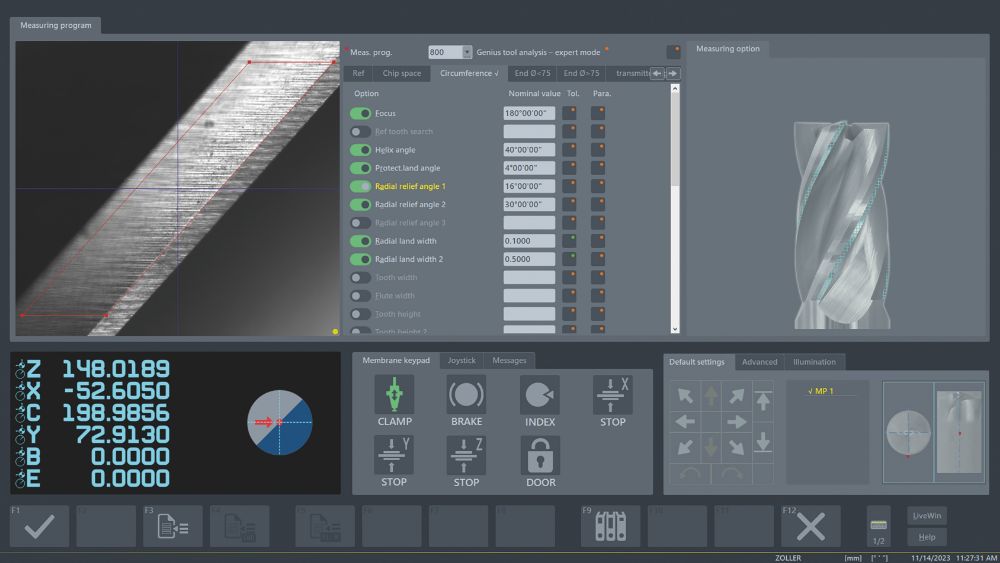

The »expert« is the specialist for measurements on precision tools and is based on the ZOLLER »pilot 4.0« software. The intelligent software generates the optimum measuring sequence from the selected parameters – fully automatic, reproducible and with photo-realistic parameter selection. Using checkboxes, the parameters to be measured can be selected easily, quickly and specific to the tools for each measuring program sequence. Simply select and confirm the parameters to be measured, and the measurement sequence starts.

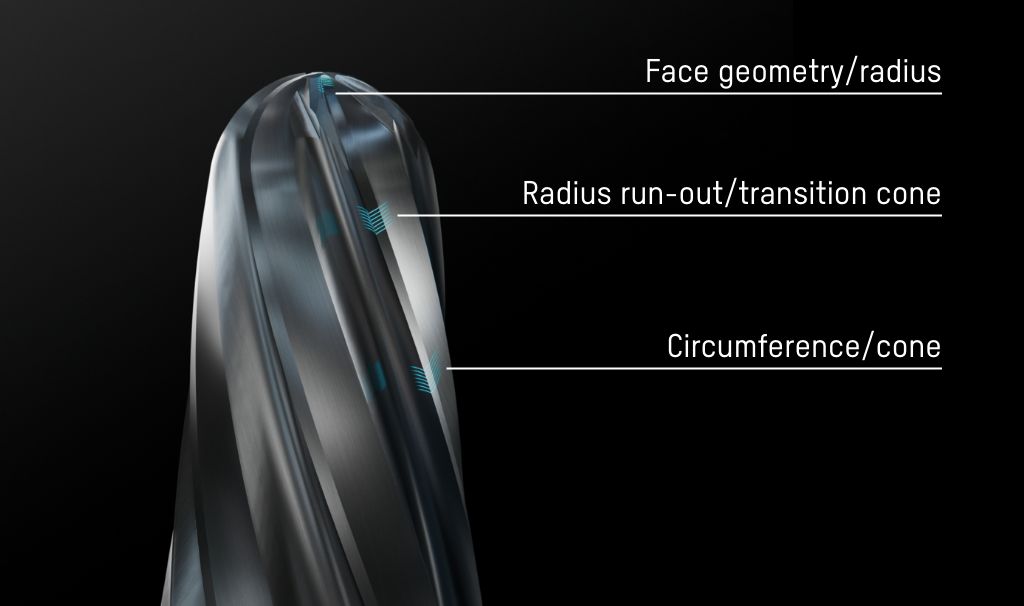

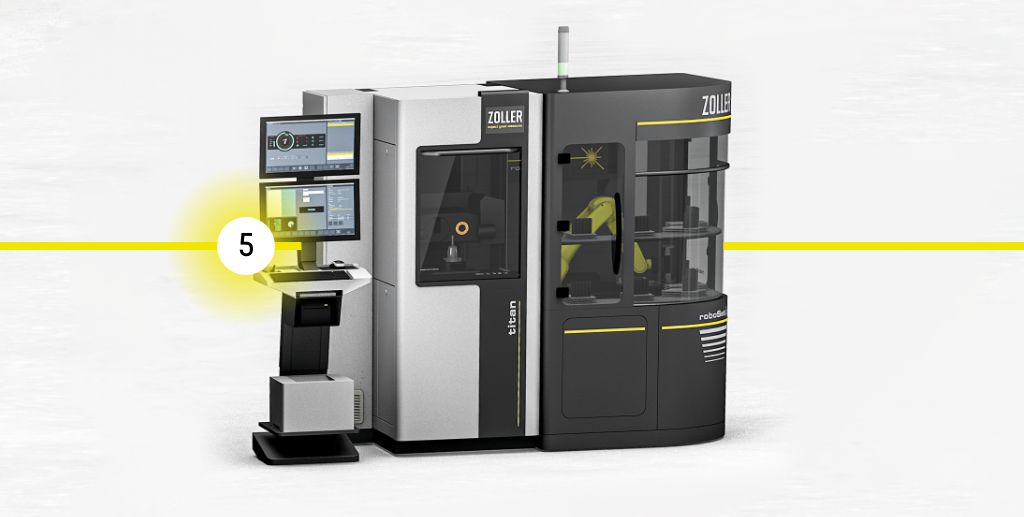

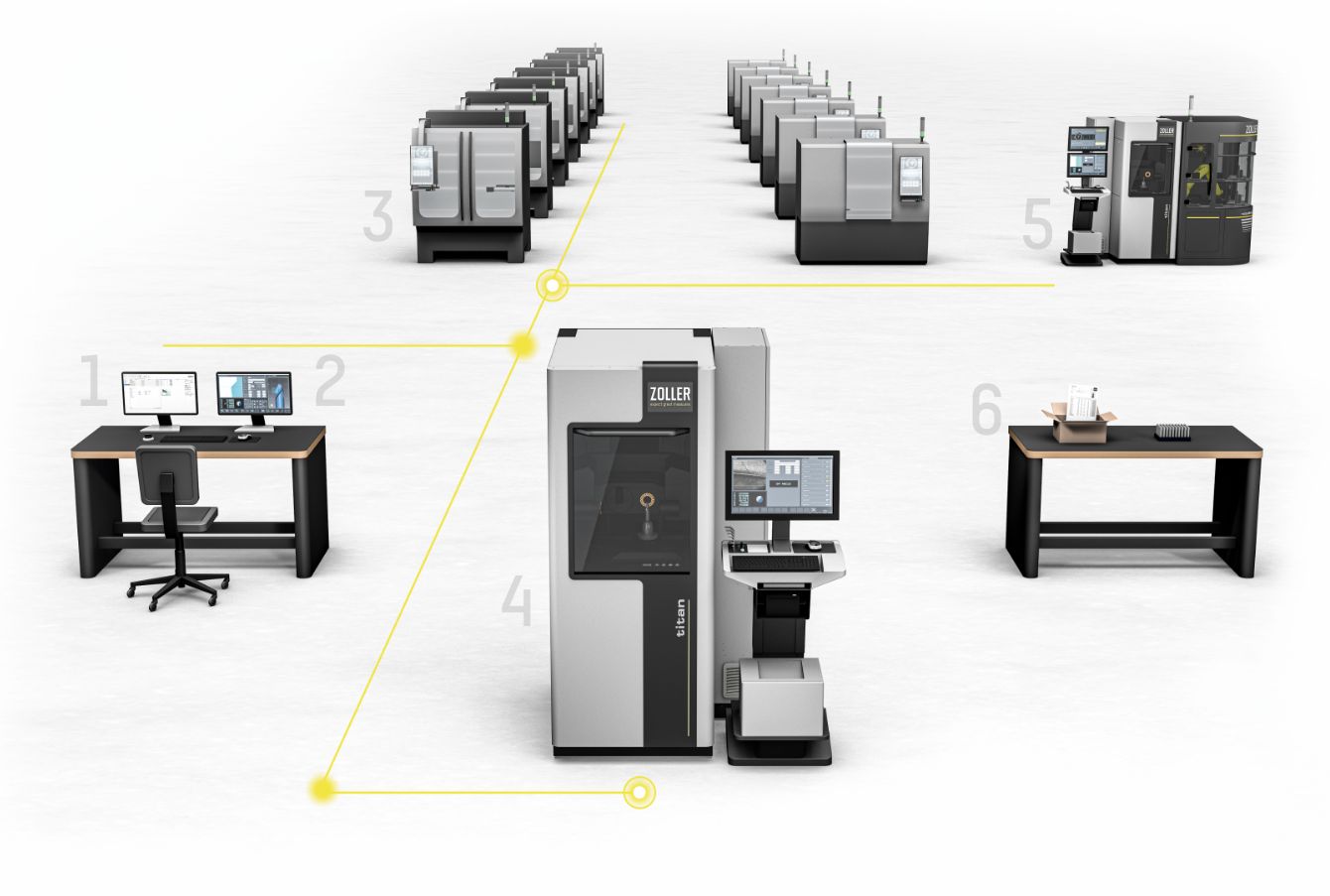

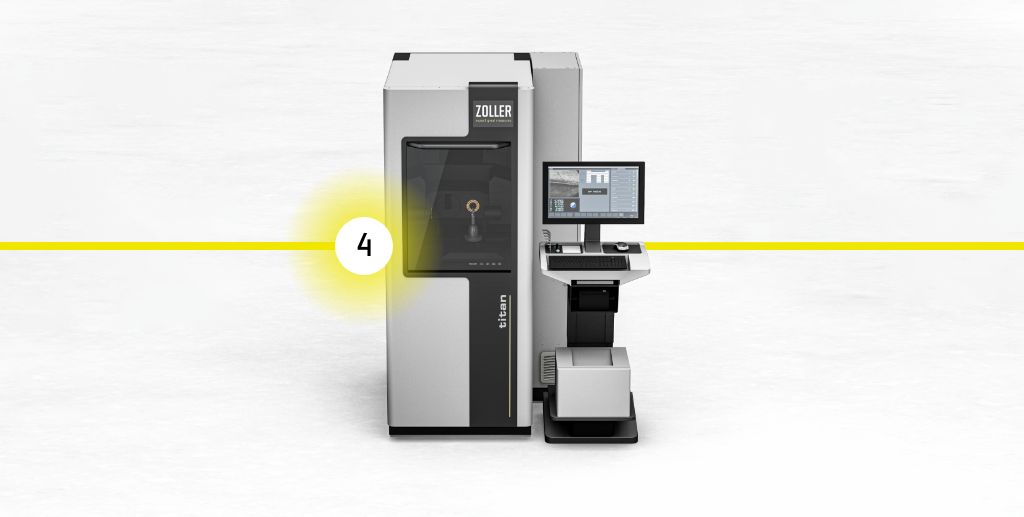

To achieve optimum tool life and efficient, precise cutting performance from cutting tools, a defined preparation of the cutting edges is crucial. The control and optimization of the cutting edge preparation and its reliable and detailed documentation play an increasingly important role. The ZOLLER »titan« with the CNC-controlled swiveling »zep« measuring sensor and the »skp« software measures the most varied forms of cutting edge preparation quickly, contact-free and fully automatically.

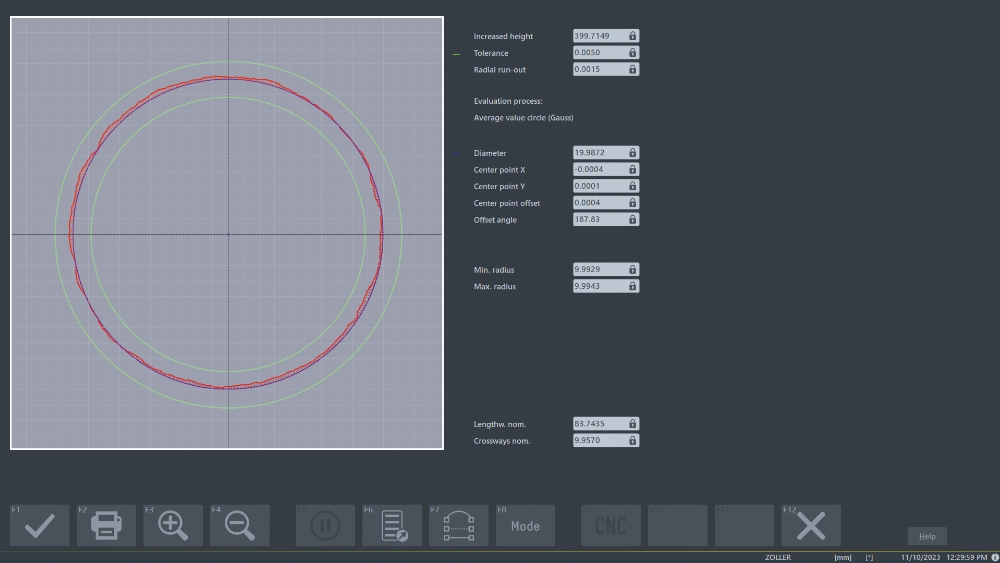

To automatically determine the radial run-out on circular surfaces (e.g. tool shank) and graphically evaluate the entire contour.

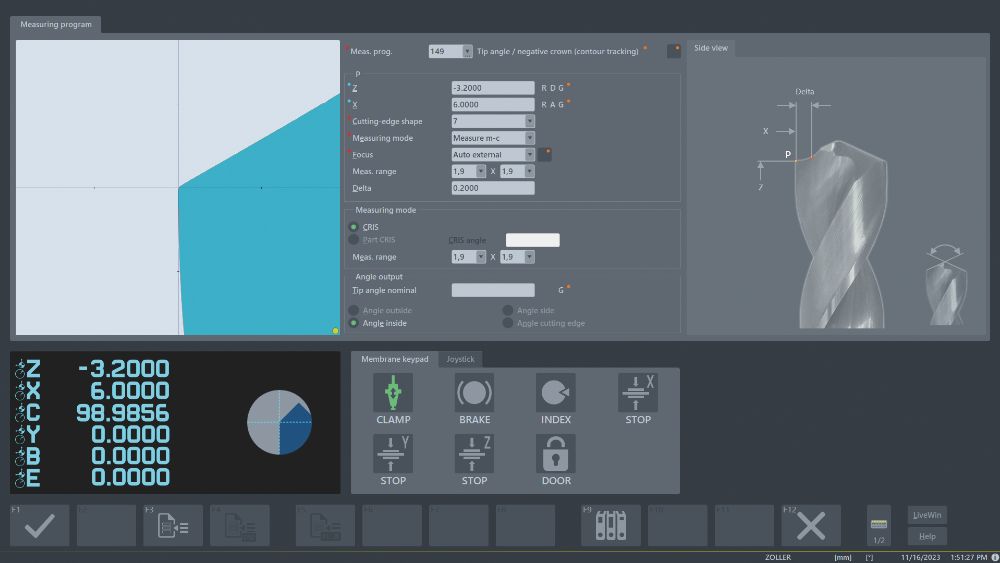

Is determined on drilling tools and hollow-ground tool cutting edges from the starting point (outside diameter) to the tool tip or the defined end point by contour tracking.

Automatically scans the flute/chip space contour without contact and displays it graphically.

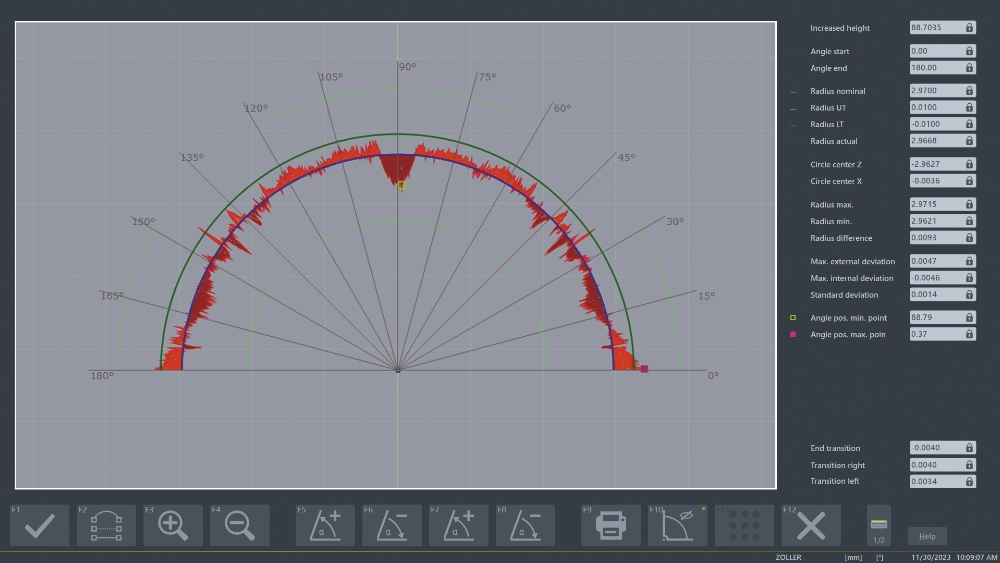

For automatic determination of concave and convex radii on the outer contour of tools including adjustable angle sectors with graphic evaluation.

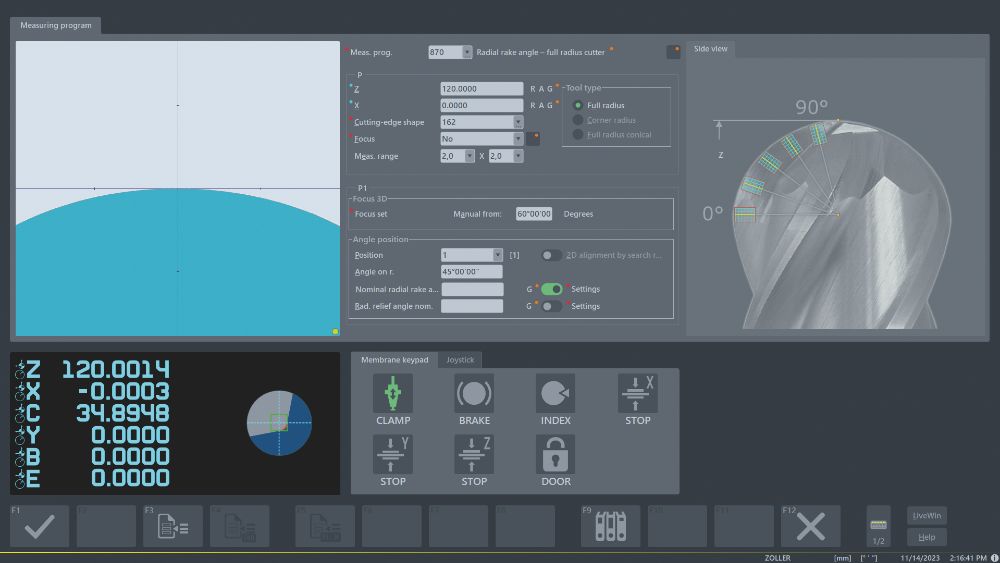

Determines the rake angle in the radius segment at the specified angles. Suitable for die, corner and full radius cutters.

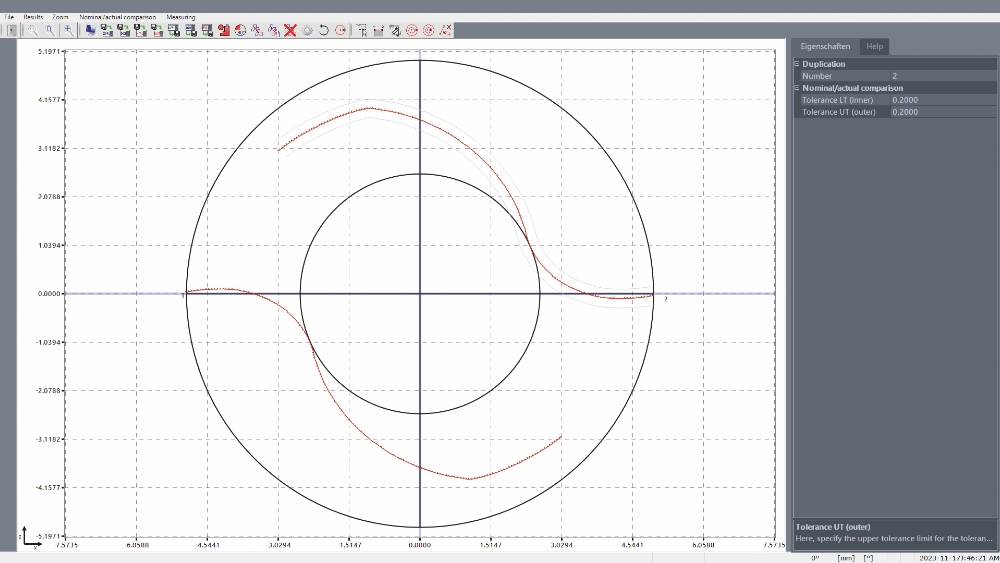

To scan any tool and workpiece contours and perform a nominal/actual comparison or dimensioning of the contour.

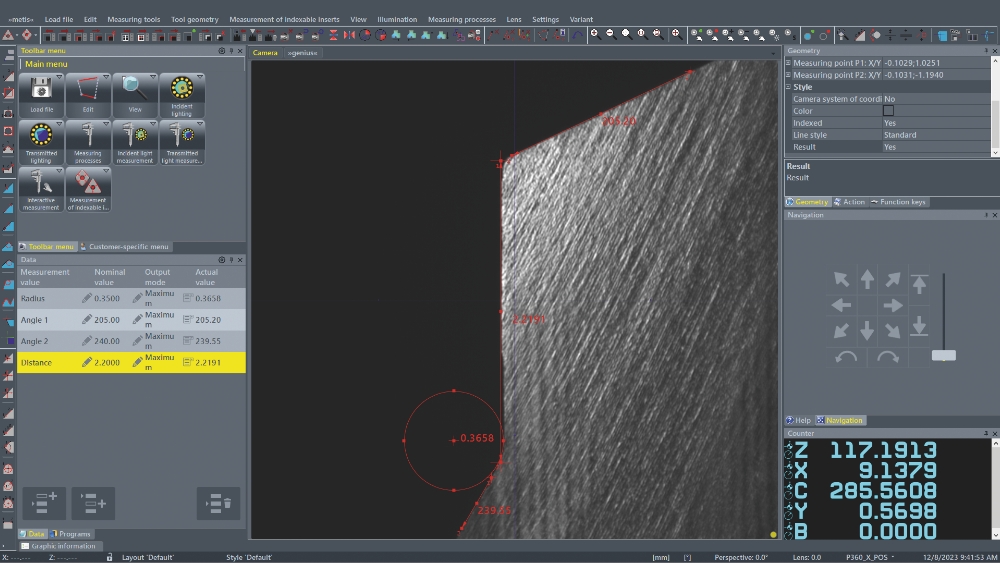

Measures and documents any contours, radii, angles, distances and defects (wear) in incident light.

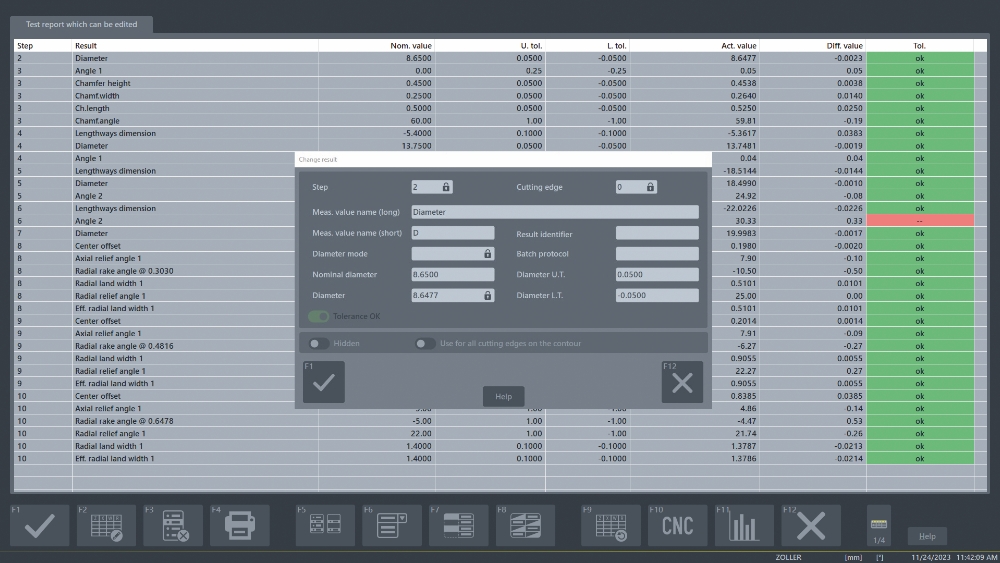

To display all measurement results including designations, nominal values, tolerances and much more in tabular form and flexibly in the layout.

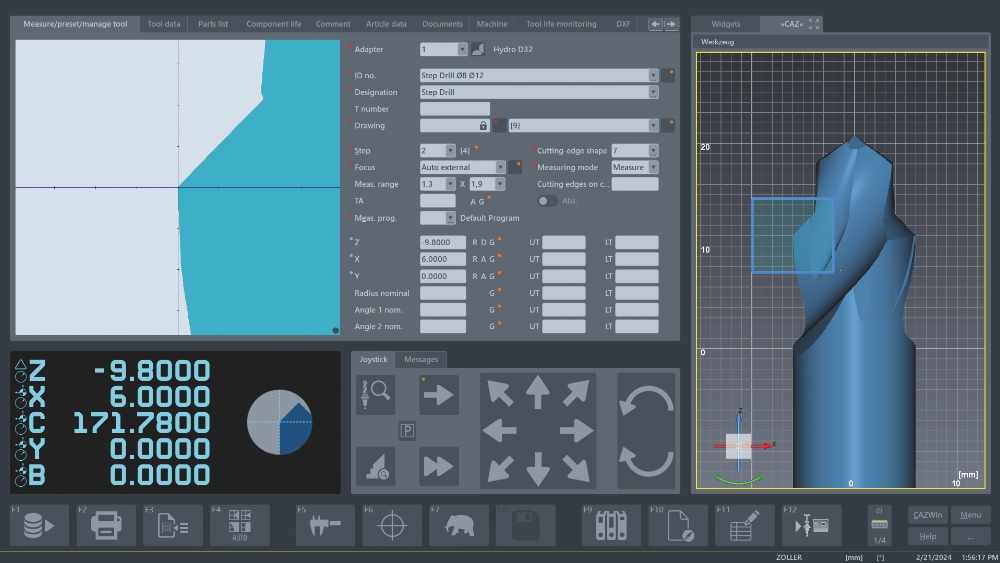

The virtual measuring device for PC workstations for external creation of the inspection and measuring process including measuring programs, nominal values and tolerances using the 3D model of the tool before it is manufactured.
