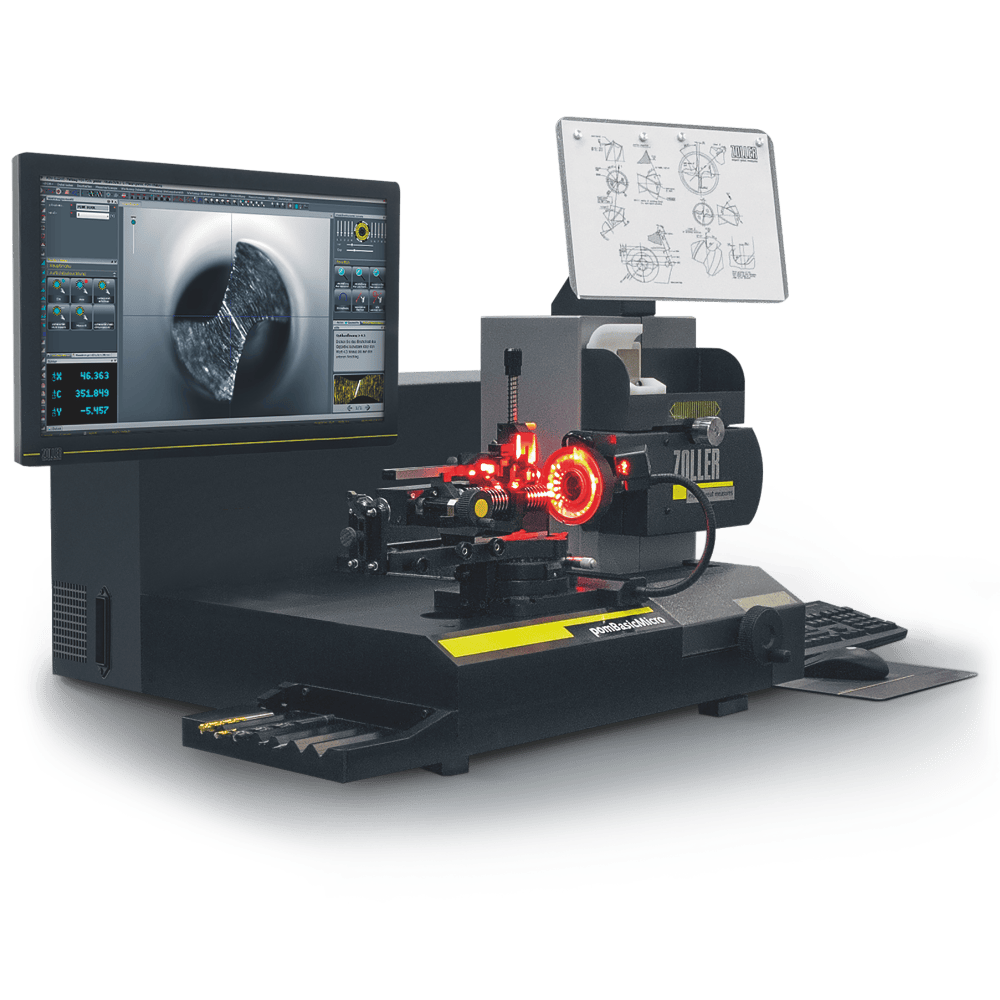

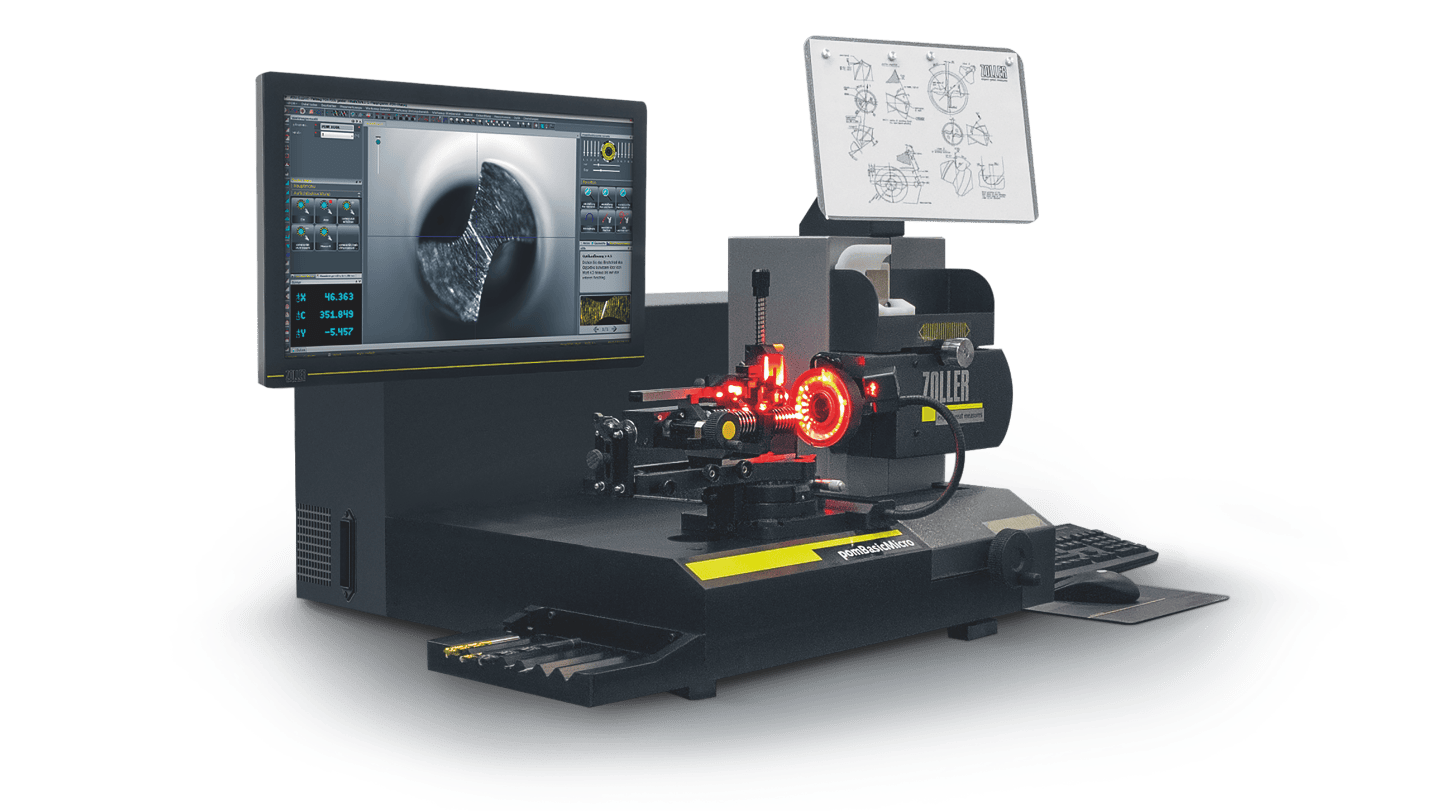

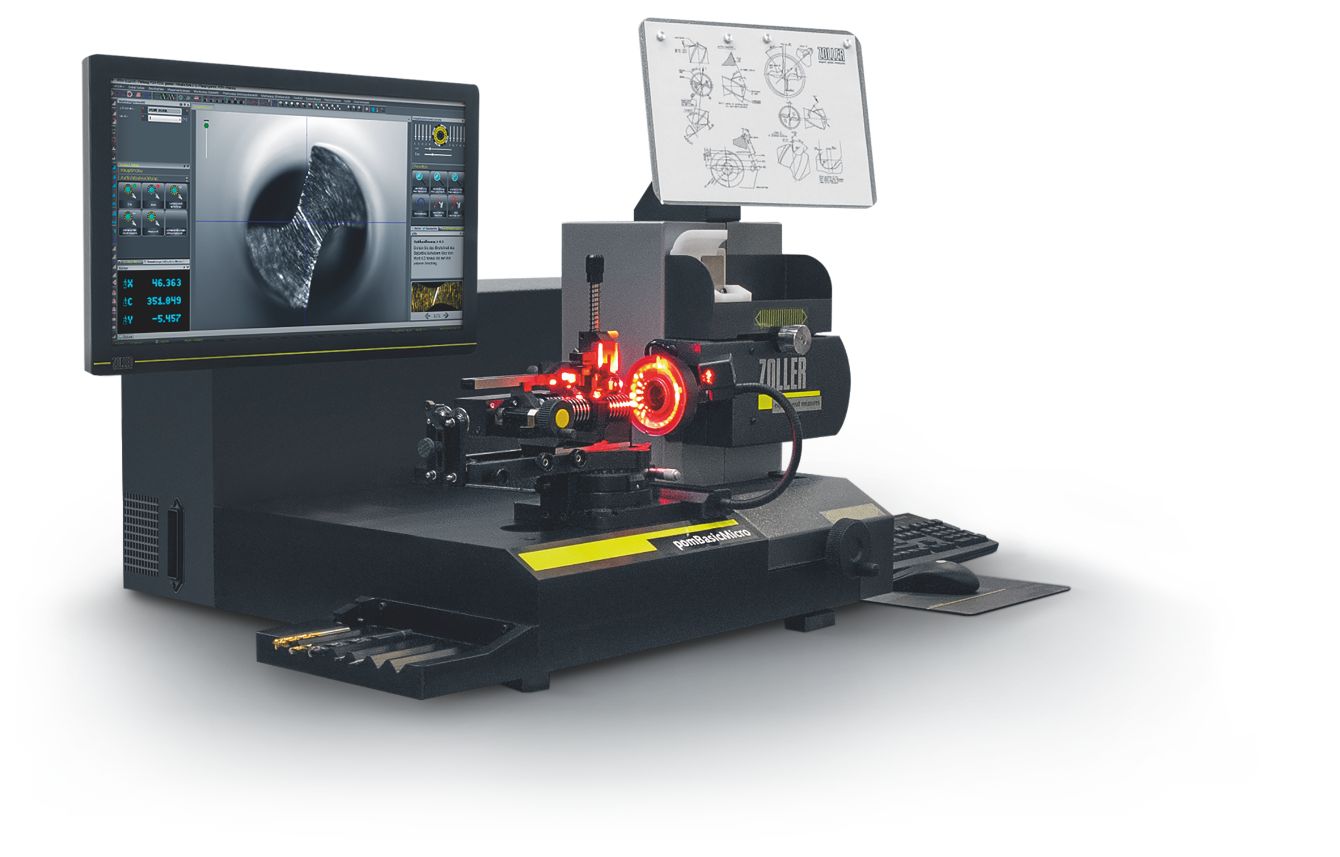

pomBasicMicro

The eagle eye for a sharp view of micro tools

Great for tiny things

Inspecting micro tools with diameters as small at 0.2 mm manually and close to production requires extremely precise mechanics, high-resolution optics and durability. We only see one solution: the »pomBasicMicro«.

Great for tiny things

Inspecting micro tools with diameters as small at 0.2 mm manually and close to production requires extremely precise mechanics, high-resolution optics and durability. We only see one solution: the »pomBasicMicro«.

Automatic lighting control

Manual, no-contact measurements

Excellent mechanical quality and precision

Process-oriented measuring

24-inch TFT color monitor

»pomBasic«

Video microscope system

Swiveling table

White diffuser

24-inch TFT color monitor

Large tool images and convenient »pomSoft« software operation.

»pomBasic«

Inspection solution for process-oriented measurement. Manual 3‑axis version with fine adjustment.

Video microscope system

Camera system with zoom macro lens with field of view from 2 to 13 mm. The SXGA camera has a resolution of 1280 x 1024. The LED ring light is segmented and dimmable and has automatic lighting control.

Swiveling table

Manual swiveling table for »pomPrisma« tool holding fixture.

Swiveling range of 180°, index positions 90/0/+90° and vernier.

Integrated rotary encoder (ROD) for high-precision positioning in the C‑axis.

White diffuser

LED flat light for transmitted light measurements.

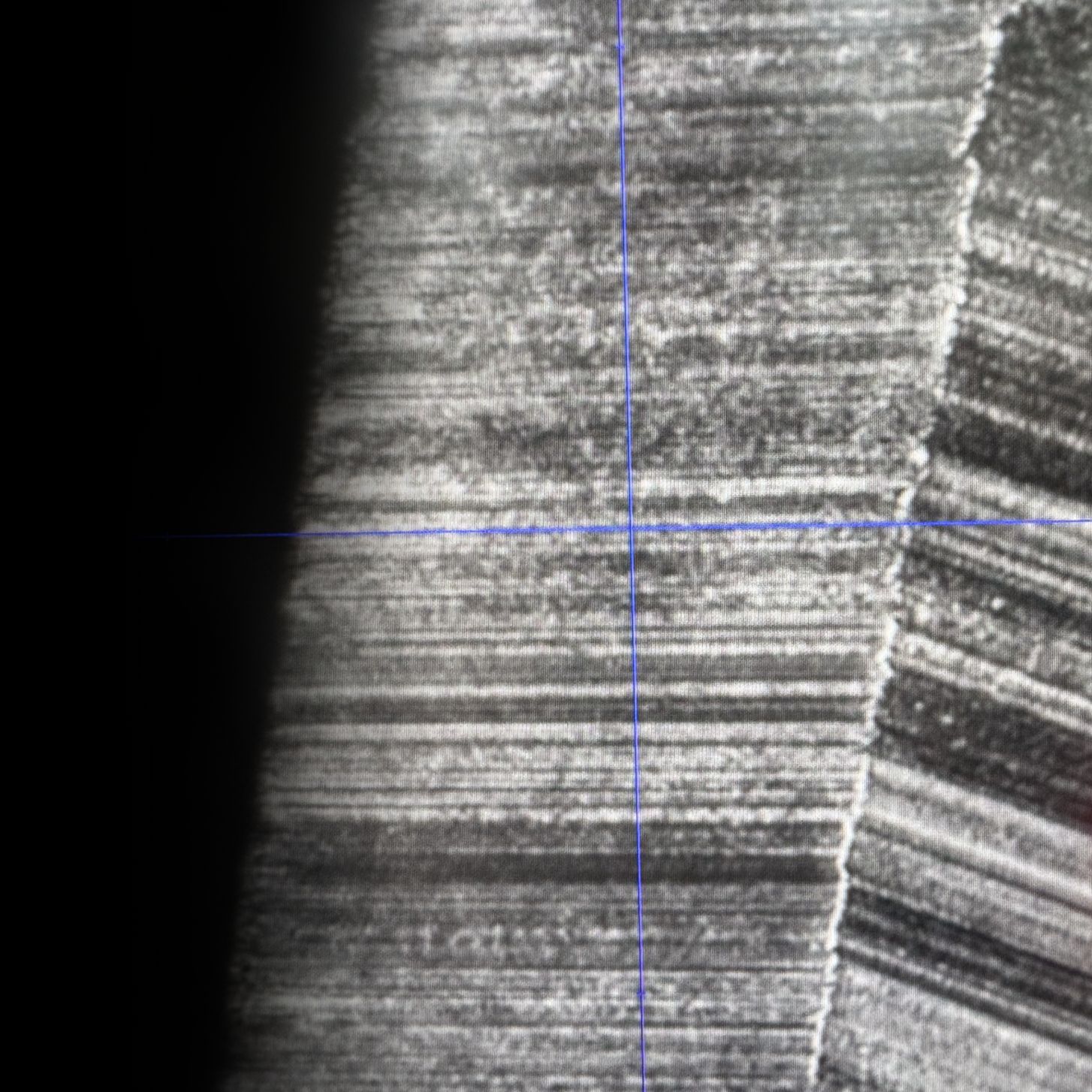

Magnify the tool image

The digital optical system in the »pomBasicMicro« allows you to magnify the tool image up to 500 times. Even minor imperfections in the tool are brought to light. If everything is in order, take a photo and attach it to the inspection report.

Magnify the tool image

The digital optical system in the »pomBasicMicro« allows you to magnify the tool image up to 500 times. Even minor imperfections in the tool are brought to light. If everything is in order, take a photo and attach it to the inspection report.

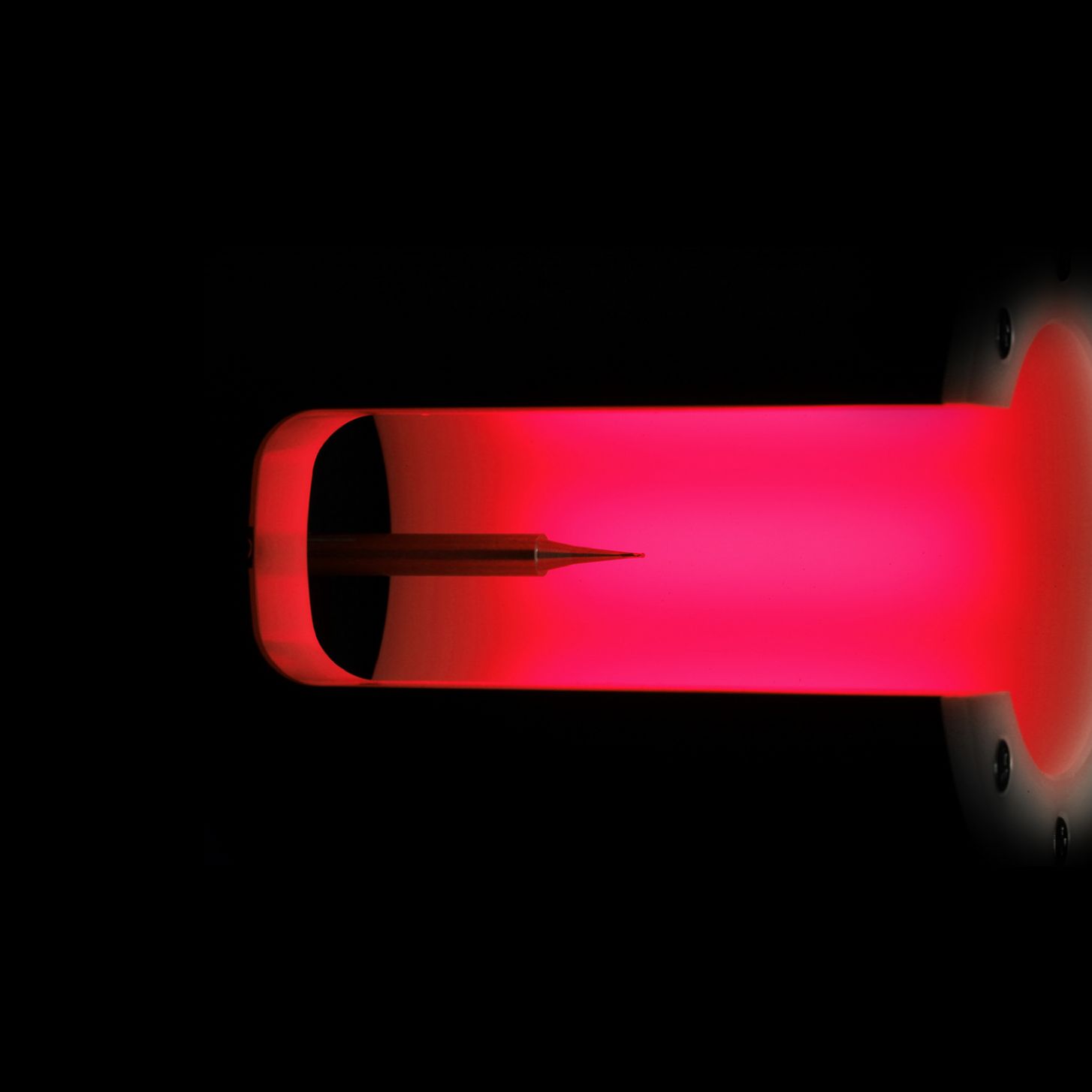

Rich in contrast: »pomLightTube«

The »pomLightTube« increases illumination and micro-contrasts on tool surfaces both radially and axially. This leads to even more detail in images. There are two versions of the »pomLightTube«, one optimized for the »pomBasic« and the other for the »pomBasicMicro«.

Rich in contrast: »pomLightTube«

The »pomLightTube« increases illumination and micro-contrasts on tool surfaces both radially and axially. This leads to even more detail in images. There are two versions of the »pomLightTube«, one optimized for the »pomBasic« and the other for the »pomBasicMicro«.

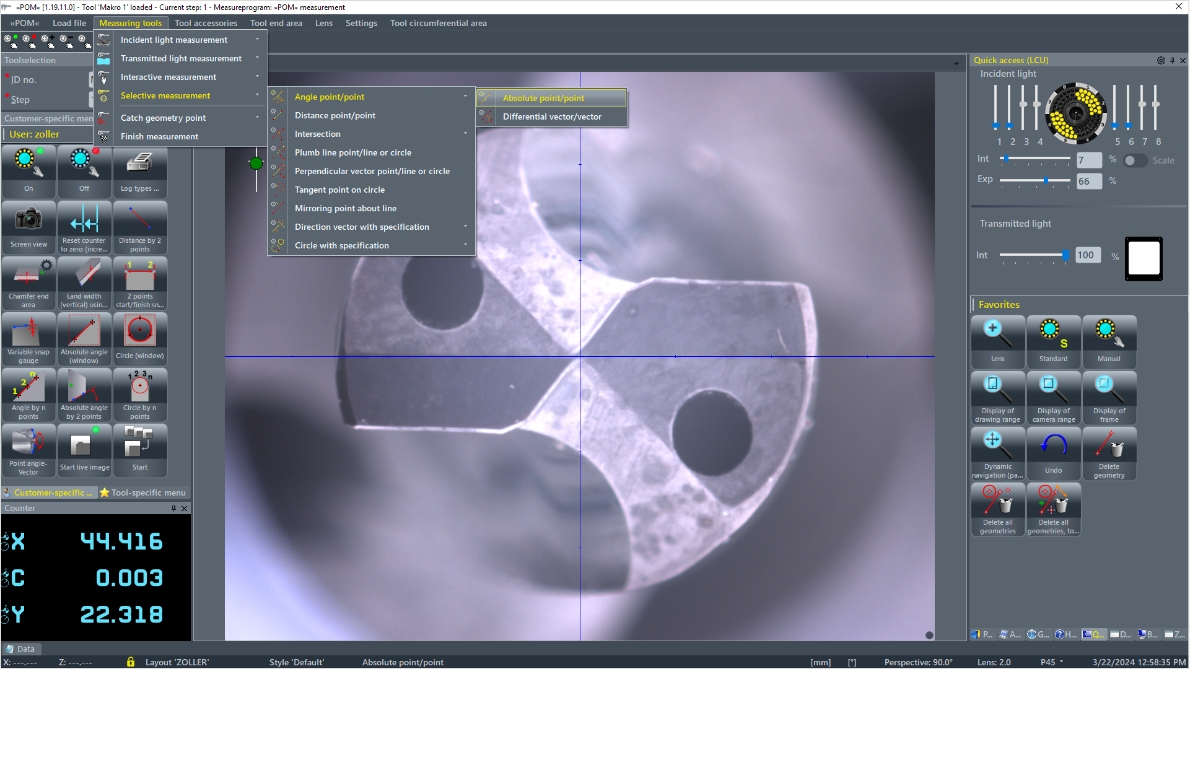

Bring automation and macros into the workflow with »pomSoft«

The »pomSoft« software for measuring and testing on the »pomBasic« and »pomBasicMicro« is as intuitive as ZOLLER's popular »pilot 4.0« image processing software. You can adapt »pomSoft« to your measurement requirements and customize it for your exact needs.

Software wizards simplify measurements, and programmable macros allow you to automate frequent measurement runs. With a few mouse clicks, the measurement data arrives in seconds. Welcome to your new, customized workflow.

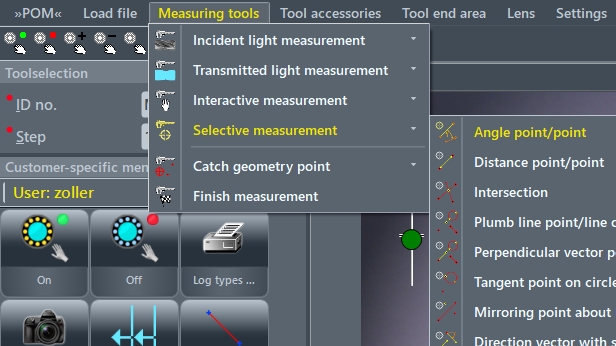

Tool selection

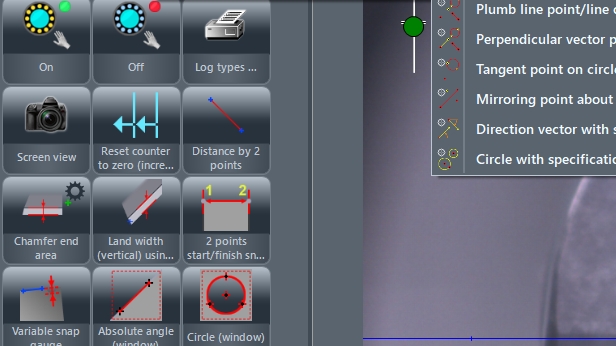

Customized menu

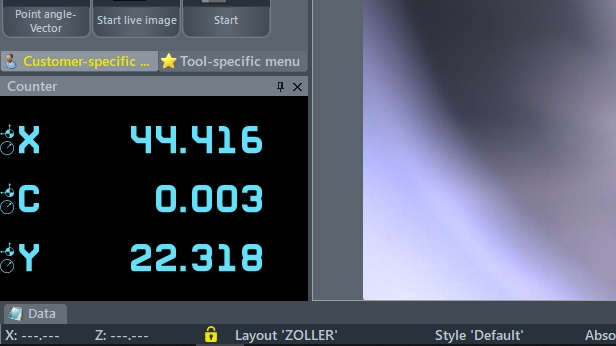

Counter

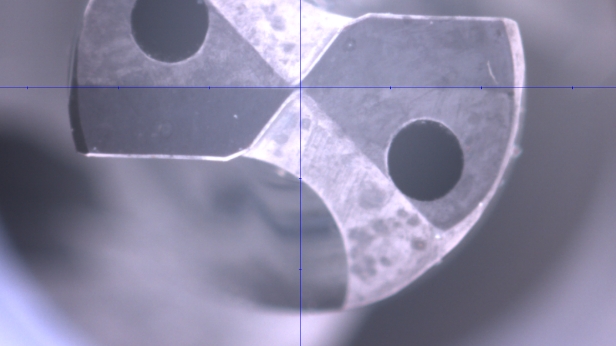

Current camera image of the tool

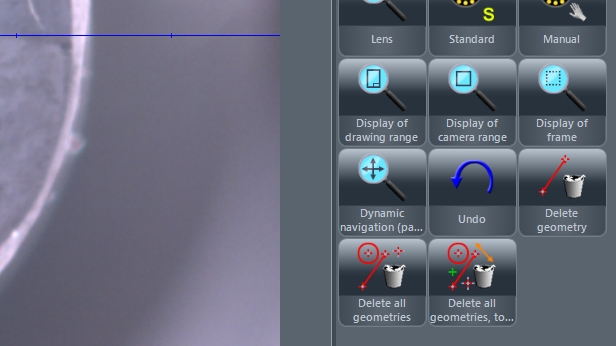

Dynamic navigation

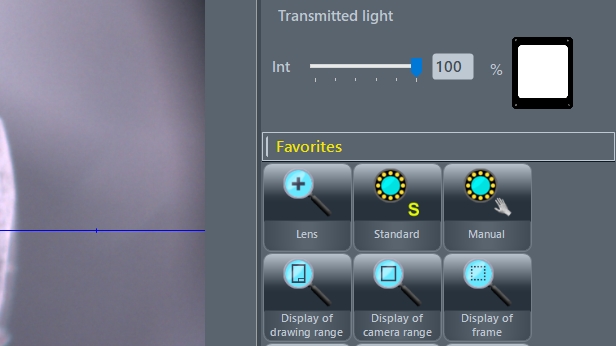

Automatic lighting

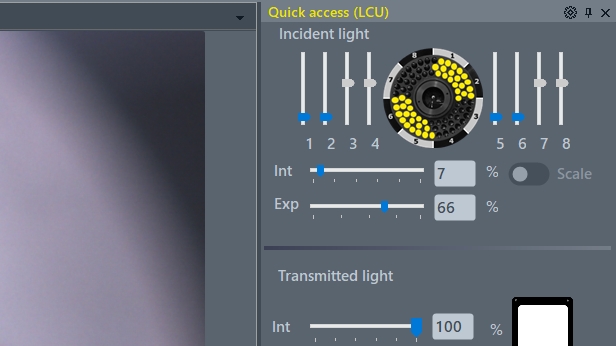

Quick access
